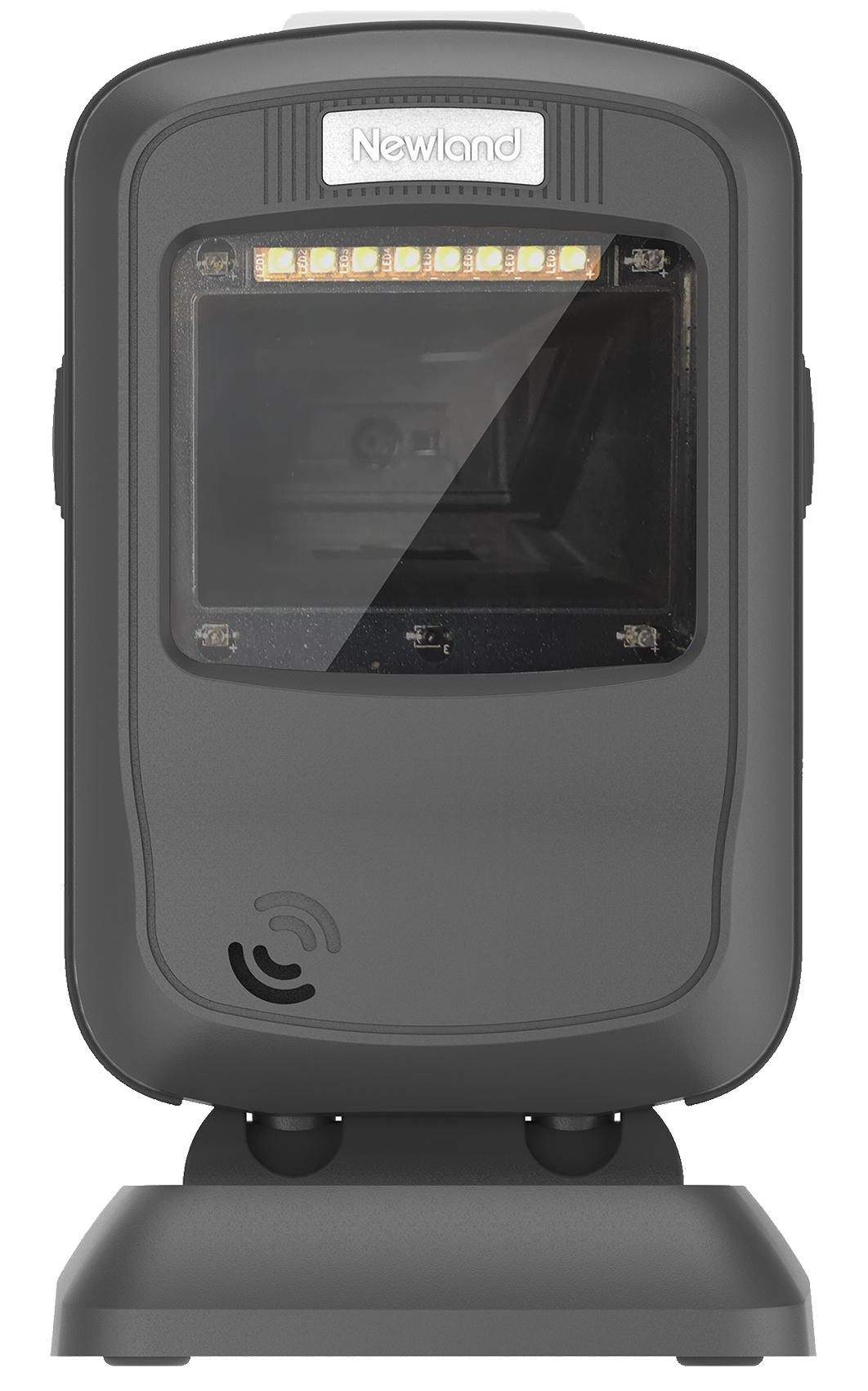

Newland FR4080
Desktop 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● 1D: 3 mil resolution
● Reading from LCD Screens
● RS-232 and USB Interfaces

 Performance
 Image Sensor 1280 x 800 Pixel CMOS
 Illumination White LED
 Resolution 1D Codes: 0,077 mm (3 mil)
 Motion Tolerance 2,5m/s
 Scanning angle Pitch: ±50°; Roll: ±360°; Skew: ±45°
 Indicators LED and Beep volume
 Print Contrast ≥%25
 Supported Interfaces RS-232 and USB
 Physical
 Length 83 mm
 Width 81 mm
 Height 148 mm
 Weight 293 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Power Consumption 1041mW (typical)
 Current Operation: 219 mA
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±14 KV (air discharge); ±8 KV (direct discharge)
 Drop 1.2 meter drop to concrete
 Sealing IP52
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
 2D Codes PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc
