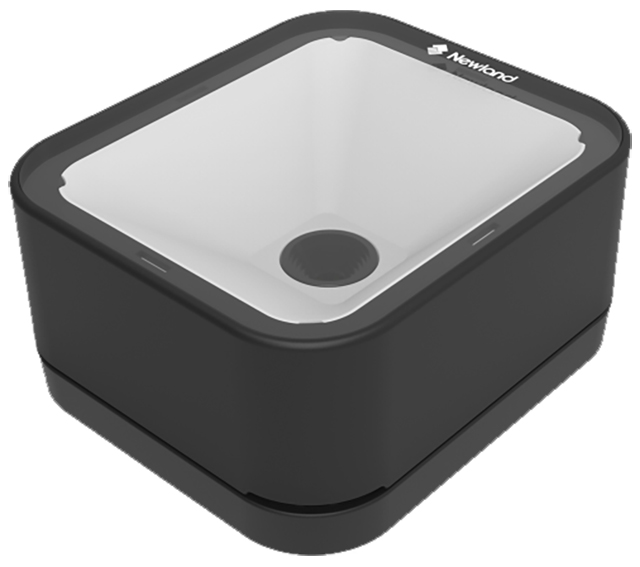

Newland FR2170
(Urchin)
Desktop 1D/2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 5 mil resolution
● Reading from LCD Screens
● USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Light source Illumination: White LED
 Resolution 1D Codes: 0,127 mm (5 mil)
 Scan Mode Sense mode, Continuous Mode
 Motion Tolerence 2.7 m/s
 Field of View Horizontal: 84.8°, Vertical: 51°
 Print Contrast ≥%20
 Supported Interfaces USB
 Physical
 Width 66,3 mm
 Height 38 mm
 Depth 76.3 mm
 Weight 120 Gram
 Electrical
 Input Voltage 5VDC (± %5)
 Current Values Operation : 140 mA, StandBy: 100 mA
 Power Consumption 698 mW
 Environmental
 Ambient Light 0 ~ 100,000 Lux (Natural Light)
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±12 KV (air discharge); ±8 KV (direct discharge)
 Drop Durability Max. 1,5 Meter
 IP Standart IP42
 Certifications
 Certifications VCCI, RoHS
 Scanning Capability
 1D Linear Barcodes All major 1D symbologies.
 2D Codes All major 2D symbologies, including QR Code, Data Matrix, Aztec, Micro PDF, Micro QR, PDF417.
