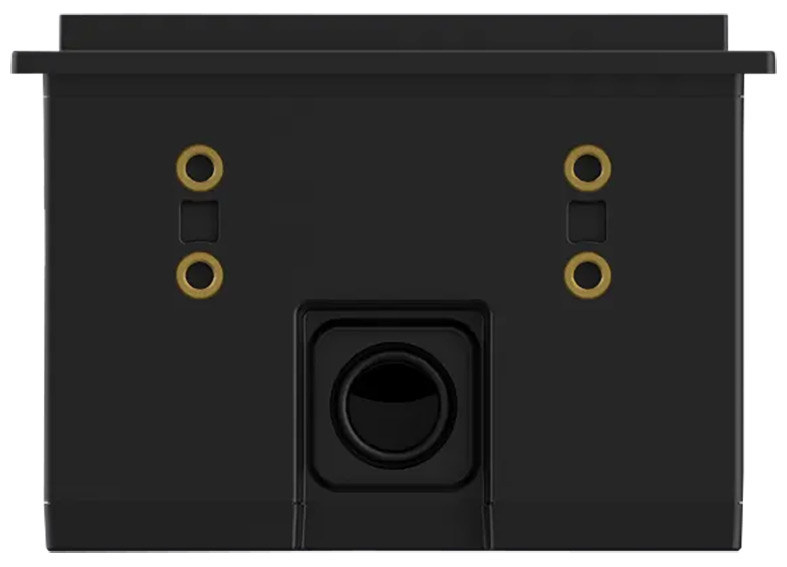

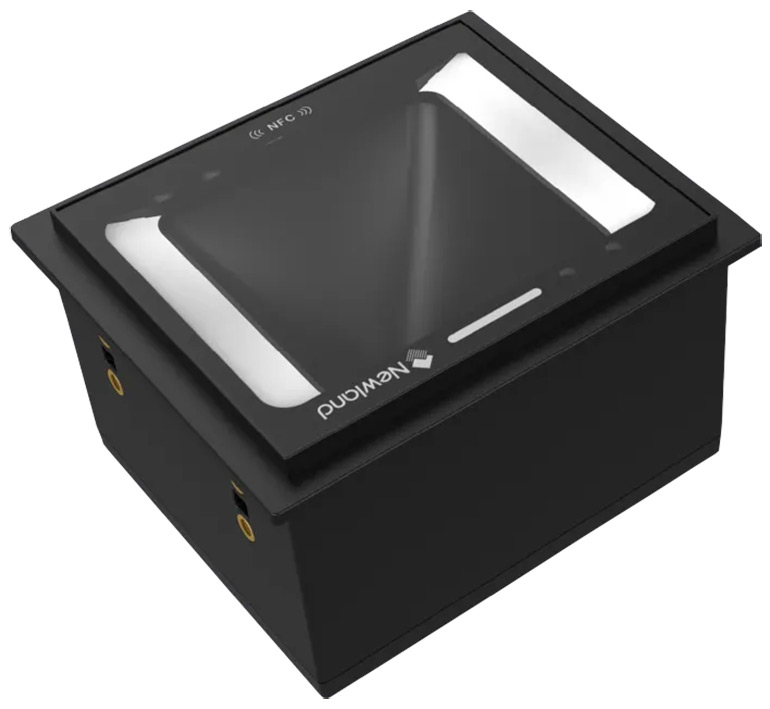

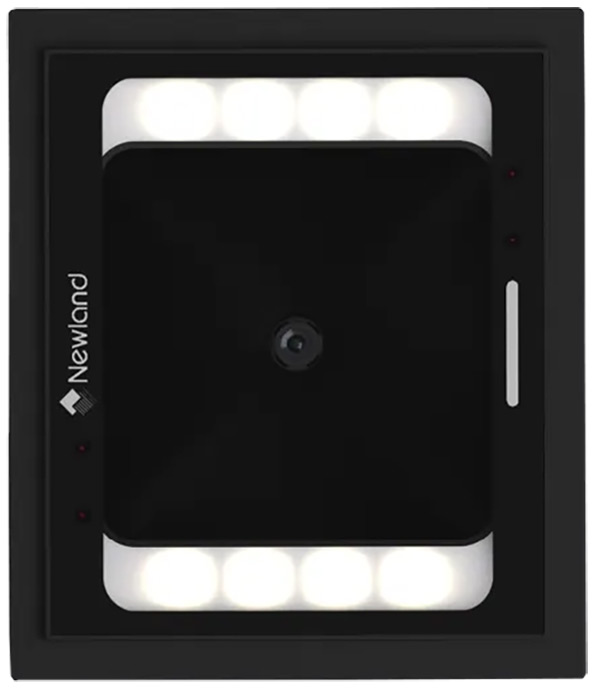

Newland FM3281
Fixed Mount 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 1088 Pixel Sensor
● Reading from LCD Screens
● Easy to install
● RS-232, RS-485, USB, NFC and Wiegand (Optional) Interfaces

 Performance
 Image Sensor 1280 x 1088 Pixel CMOS
 Light source Illumination: 3000K White LED
 Resolution 1D: 0,076 mm (3 Mil)
 Scan Mode Sense mode, Continuous mode, Command mode
 Indicators LED and Beep volume
 Field of View Horizontal: 58.2°, Vertical: 66°
 Scan Window 45 mm x 45 mm
 Scan Angle Roll: 360°, Pitch: ±60°, Skew: ±60°
 Print Contrast ≥%25
 Supported Interfaces Stndart RS-232, RS-485, USB and NFC
Optional Wiegand
 Physical
 Width 78,7 mm
 Height 47,7 mm
 Depth 67,7 mm
 Weight 132 Gram
 Electrical
 Input Voltage 5 - 24 VDC (±5%)
 Current With NFC Operating: 220 mA, Idle: 175 mA
Without NFC Operating: 220 mA, Idle: 175 mA
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±15 KV (Air Discharge), ±8 KV (Direct Discharge)
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Interleaved 2 of 5, Code 128 (FNC1), Code 93, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), MSI Plessey, Code 39 (Code 39 FULL ASCII), Plessey etc.
 2D Codes PDF417, Data Matrix, QR Code, Micro QR, Aztec etc.
 Postal USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal, Japan Post
 OCR Passport OCR, Chinese ID Card, China Travel Permit OCR
