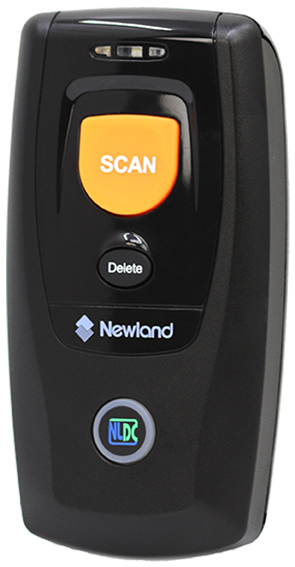

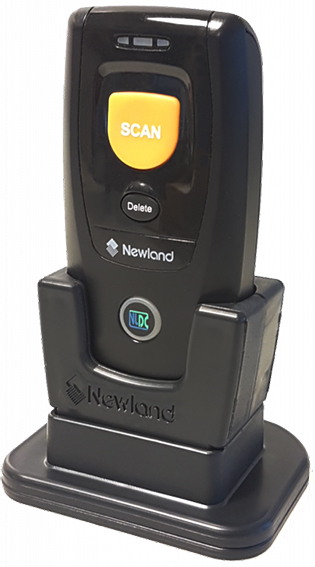

Newland BS8080
(Piranha II)

Wireless Barcode Scanner



● 1D or 2D Barcode Scanner Options
● Wireless (Bluetooth) Communication
● Operate with a 50-meter data transmission range
● 62 / 67 gr Weigth
● Compatible Windows, Android and iOS Devices

 Model  Scanner Type Keyboard
 BS8080-1D  1D  Linear Imager
 BS8080-2D  1D/2D  CMOS Imager
Performance
  Imager Sensor BS8080-1D 2500 Pixel Linear Imager
BS8080-2D 1280 x 800 Pixel CMOS
 Minimum Bar Width 0.127 mm (5 Mil)
 Scanning Angle Pitch: ±60°; Roll: ±360°; Skew: ±60°
 Print Contrast BS8080-1D ≥%25
BS8080-2D ≥%20
 Indicators (LED) LED and Beep volume
 Interfaces USB Type-C, Bluetooth HID/SPP/BLE Profiles
 Communication
 Radio Technology 2.4 - 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR
 Communication Distance Max. 50 metre (Open Space)
 Physical
 Dimensions Height 24,5 mm
Length 88 mm
Width 46 mm
 Weight BS8080-1D 67 Gram
BS8080-2D 63 Gram
 Electrical
 Battery Type 3.7V 900 mAh rechargeable Li-ion battery
 Charging Time 3~5 hours
 Current BS8080-1D Operation : 185mA (Bluetooth is on)
Standby : 25mA
BS8080-2D Operation : 280mA (Bluetooth is on)
Standby : 11mA
 Battery Life BS8080-1D Max: 6.5 hours (Scan once per 6s)
BS8080-2D Max: 5 hours (Scan once per 6s)
 Environmental
 Operation temperature -20°C ~ 50°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±4 KV (Contact discharge), ±12 KV (Air discharge)
 Drop 1,2 m drop to concrete
 IP Standard IP42
 Certifications
 Certifications CE RED, CE UK, FCC, TELEC, IEC 62471, RoHS, IEC60825
 Decode Capabilities
 1D Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar etc.
 2D Barcodes PDF417, QR Code, Data Matrix, etc
 Scanning Distances
 BS8080-1D Code 39 : (5 mil) 70 mm ~ 185 mm
Code 128 : (10 mil) 60 mm ~ 500 mm
EAN-13 : (13 mil) 55 mm ~ 550 mm
 BS8080-2D Code 39 : (5 mil) 65 mm ~ 260 mm
Code 128 : (10 mil) 38 mm ~ 411 mm
EAN-13 : (13 mil) 50 mm ~ 540 mm
Datamatrix : (10 mil) 40 mm ~ 250 mm
QrCode : (15 mil) 40 mm ~ 190 mm
 Software
 Configuration Tools EasySet
