Operational |
|
Printing method |
Direct thermal |
|
Printing resolution |
203 DPI (8 dots/mm) |
|
Printing speed |
Max. 75 mm/sec |
|
Printing width |
Max. 72 mm |
|
Memory |
4 MB DRAM, 8 MB Flash ROM |
|
Buzzer |
Buit-in |
|
Display |
Dots: 96 x 39 |
|
TPH Life |
50 km |
|
Drop Height |
1,5m |
|
Sensors |
Out-of-paper sensor |
|
Gap sensor |
|
Cover-opening sensor |
|
TPH over temperature sensor |
|
Black Mark Sensor |
|
Battery temperature sensor |
|
Communication
interface |

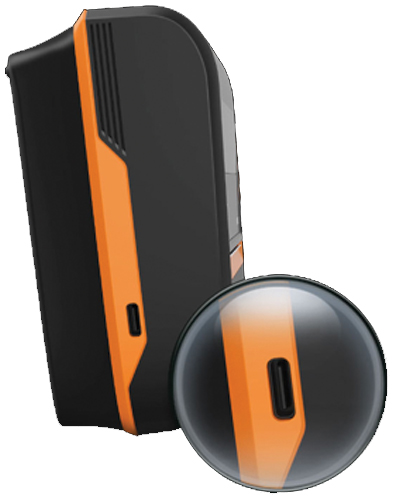

USB (Type-C), Bluetooth (Dual Mode + 5.2) |
|
Physical |
|
Width |
110 mm |
|
Height |
58 mm |
|
Length (Depth) |
117,8 mm |
|
Weight |
400 gr (With Battery) |
|
Electrical |
|
Power input type |
External adaptor |
|
Power source (Input) |
AC 100V ~ 240V,50/60 Hz |
|
Power source (Output) |
DC 5V, 1A |
|
Battery |
7.4V 2000 mAh Lithium Battery (Rechargeable) |
|
Environmental |
|
Operation temperature |
0°C ~ 45°C |
|
Storage temperature |
-20°C ~ 70°C |
|
Operation Humidty |
25% ~ 85% (Non Condensing) |
|
Storage Humidty |
5% ~ 95% (Non Condensing) |
|
Label |
|
Type |
Thermal Label Paper, Receipt Paper and Black Mark Paper |
|
Width |
25 mm ~ 80 mm (Adjustable) |
|
Thickness |
53µm ~ 150µm |
|
Roll Outside diameter |
50 mm (Maximum) |
|
Paper Outlet Direction |
Upward |
|
Ribbon |
|
Type |
Not Used |
|
Software |
|
Supported Operation Systems |
Windows, Android and iOS |
|
Supported Emulations |
ESC/POS ve CPCL |
|
Character |
Alphanumeric, Simplified Chinese, Traditional Chinese, English, other languages |
|
Supported graphics formats |
GRF, HEX and GDI |
|
Supported Barcode Types |
|
1D |
Code 39, Code 93, UCC/EAN128, Code 128, Codebar, Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on, Industrial 2 of5 |
|
2D |
PDF417, QR Code |
