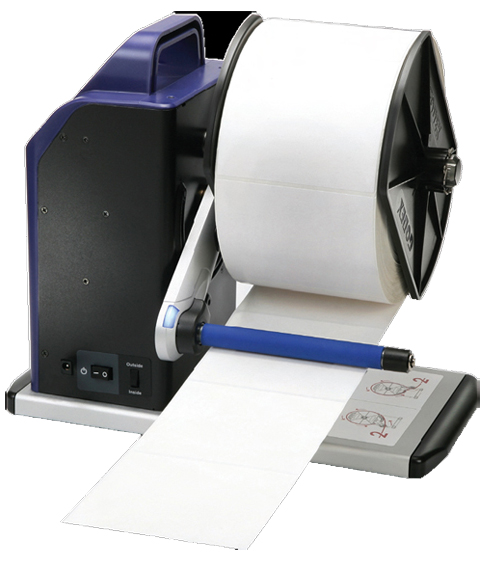

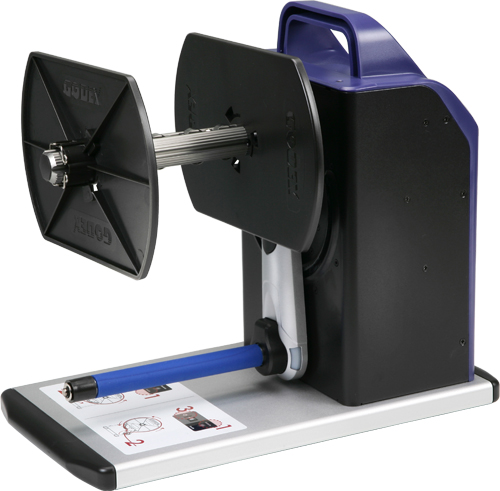

Godex T10
External Label Rewinder



● Automatic Speed Control
● In or Out Rewinding
● 203 mm roll outside capacity
● Supports three core size
● Can work with all brand barcode printers

 Operational
 Label width 25,4 mm ~ 120 mm
 Label roll weight 4 Kg. (Max.)
 Rewind speed (Maximum) Up to 12 IPS (304.8 mm/s) with 3“ core
Rewind speed depending on core diameter
 Label Roll Diameter Max. O.D. 6” (152.4 mm) for label inside
Max. O.D. 8” (203.2 mm) for label outside
 Core Diameter I.D. 1” (24.4 - 26.4 mm)
I.D. 1.5” (37.1 - 39.1 mm)
I.D. 3” (75.2 - 77.2 mm)
 Direction Label inside / Label outside
 Electrical
 Power AC 120V or AC 230V (Factory options)
 Operation interface  Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
 Humidity Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
 Agency Approvals CE, FCC Class A
 Physical
 Dimension Length: 11.8” (300 mm)
Height: 12.1” (308 mm)
Width: 8.7” (220 mm)
 Weight 13.2 lbs (6Kg), excluding consumables
 Rewind End Detection Label inside: O.D. 6” (152.4 mm)
Label inside: O.D. 8” (203.2 mm)
