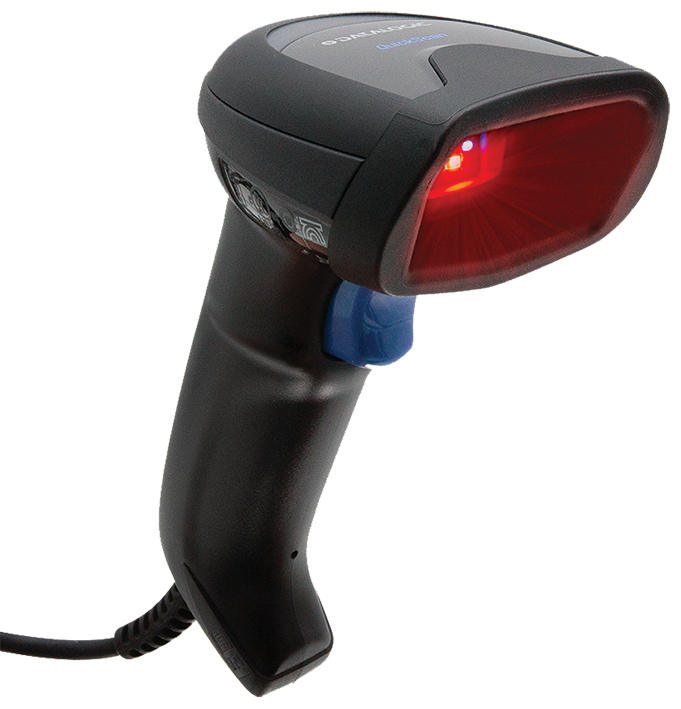

Datalogic QuickScan QD2500
2D Barcode Scanner



● Support 1D, 2D, Postal Codes And Stacked Codes
● 1280 x 800 Pixel Imager Sensor
● 0,077 mm (3 mil) resolution (1D)
● IP52 Standard
● Schockproof to 1,5 meters
● USB Interfaces

 Model  Interfaces
 QD2590  USB
 Reading Performance
 Image Sensor 1 Megapixel (1280 x 800 pixels)
 Light source Aiming: Blue LED emission 468 nm
Illumination: : Red LED emission 624 nm
 Motion Tolerance 30 IPS
 Print Contrast (Minimum) 20%
 Reading Angle Pitch: ±65°; Roll (Tilt): ±360°, Skew (Yaw): ±65°
 Indicators (LED) Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
 Resolution 1D: 0.077 mm (3 mil)
PDF417: 0.077 mm (3 mil)
DataMatrix: 0.127 mm (5 mil)
QrCode: 0.17 mm (6,7 mil)
 Interface
 Interfaces QD2590: USB
 Physical
 Height 148 mm
 Depth 126 mm
 Width 68 mm
 Weight 145 gr
 Color Black
 Electrical
 Input Voltage 5 VDC
 Current Operating : < 400 mA @5V
Standby Mode: < 90 mA @5V
 Environmental
 Ambient Light 100.000 Lux (Max.)
 Operation temperature 0°C ~ 50°C
 Storage temperature -40°C ~ 70°C
 Humidty %0 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP52
 Scanning Capability
 1D Linear Barcodes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
 2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
 Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
 Digital Watermarking Digimarc Barcodes
 Scanning Distances
 1D Code 39: (5 mils) 5 mm ~ 250 mm
Code 39: (10 mils) 5 mm ~ 380 mm
EAN/UPC-A: (13 mils) 5 mm ~ 380 mm
 2D PDF417: (6,7 mils) 5 mm ~ 210 mm
DataMatrix: (10 mils) 5 mm ~ 215 mm
QrCode: (20 mils) 0 mm ~ 370 mm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 LED Classification Illuminator Exempt group, Aiming Risk Group 1 according to IEC 62471
 Utilities
 DATALOGIC ALADDIN™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JAVAPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge
 REMOTE HOST DOWNLOAD Lowers service costs and improves operations.
