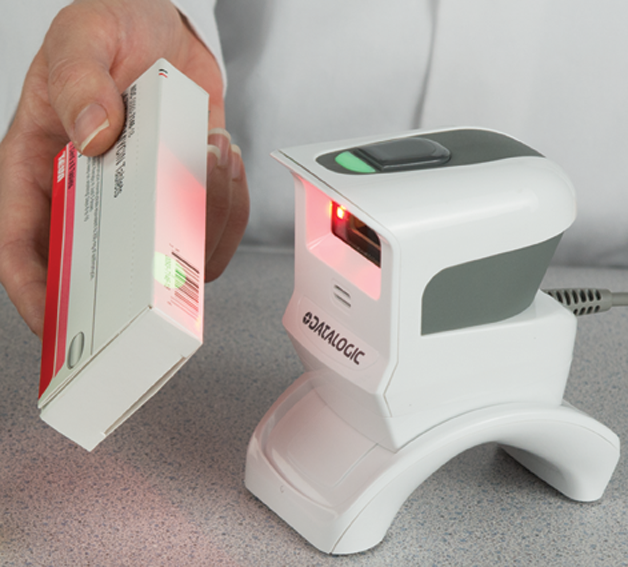

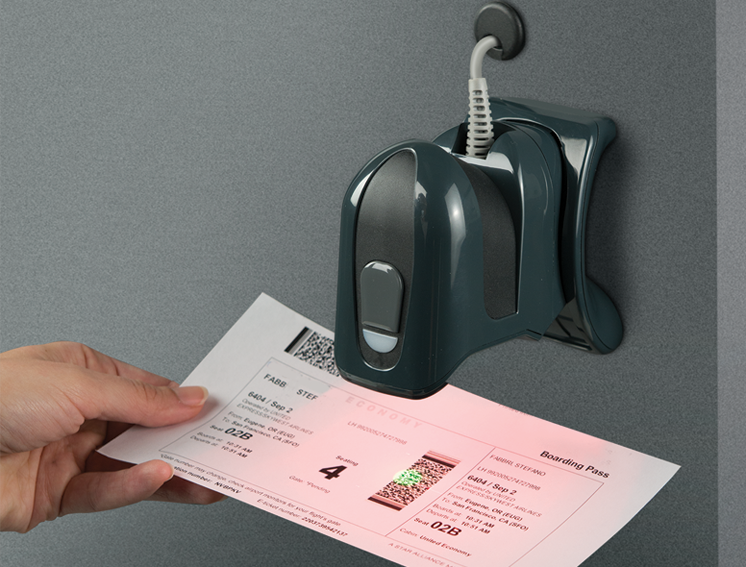

● 2D/Imager barcode Scanner
● Omnidirectional and fast scanning
● Wide VGA (752 x 480 Pixel) scanning
● 0,102 mm (4 mil) resolution

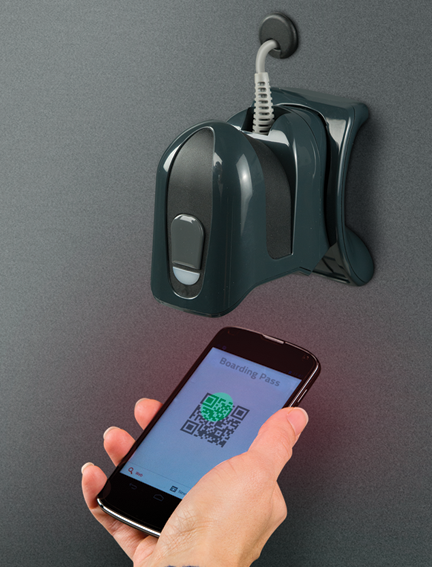

● Reading of barcodes from mobile phones,laptops or PDAs
● "Green Spot" Light For Good Read Feedback
● IP42 Standard
● Schockproof to 1,2 meters
● Adjustable Stand
| Reading Performance | |||
| Image Sensor | Wide VGA (752 x 480 Pixel) | ||
| Image Capture | BMP, JPEG, TIFF, Greyscale:256, 16, 2 | ||
| Light source | Aiming: 650 nm VLD | ||
| Illumination: 625 nm VLD | |||
| Scanning View | Horizontal: 40°, Vertical: 26° | ||
| Print Contrast (Minimum) | %25 | ||
| Scan Angle | Pitch: ± 40°; Roll (Tilt): ± 180°; Skew (Yaw): ± 40° | ||
| Indicators (LED) | Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission | ||
| Resolution | 1D: 0.102 mm (4 mil) | ||
| 2D: 0.178 mm (7 mil) | |||
| Physical | |||
| Dimensions | With Stand: 121 mm x 107 mm x 73 mm | ||
| Withhout Stand: 74 mm x 95 mm x 64 mm | |||
| Ağırlık | With Stand: 295 Gram | ||
| Withhout Stand: 178 Gram | |||
| Renk | White | ||
| Electrical | |||
| AC Power requirements | 5VDC (± %5) | ||
| Power consumption | Operation Mode | 175 mA (Max. 200 mA) | |
| Standby Mode | Automatic/Object Sense Modes : 105 mA | ||
| Trigger/Serial On Line Mode: 55 mA | |||
| Environmental | |||
| Light Levels | 100.000 Lux | ||
| Operation temperature | 0° C ~ 50° C | ||
| Storage temperature | -40 °C ~ 70 °C | ||
| Humidty (Non Condensing) | Max. %90 | ||
| Drop Durability | 1,2 meter | ||
| IP Standard | IP52 | ||
| ESD Koruması (Air Discharge) | 16 kV | ||
| Decoding Capability | |||
| 1D Linear barcodes | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes | ||
| 2D Codes | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code | ||
| Postal Codes | Australian Post, British Post, Canadian Post, China Post, IMB, Japanese Post, KIX Post, Korea Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC); Swedish Post | ||
| Stacked Codes | EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites | ||
| Scanning Distances | |||
| Scanning Distances | 1D | Code 39 (5 mil) : 26 ~ 188 mm | |
| Code 39 (10 mil) : 0 ~ 379 mm | |||
| EAN (13 mil) : 8 ~ 422 mm | |||
| 2D | Datamatrix (10 mil) : 23 ~ 145 mm | ||
| Datamatrix (15 mil) : 0 ~ 232 mm | |||
| QrCode (10 mil) :23 ~ 143 mm | |||
| Safety and Regulatory | |||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | ||
| Environmental Compliance | Complies to China RoHS; Complies to eU RoHS | ||
| Laser Classification | Caution Laser Radiation - Do not stare into beam CDRH Class II, EN 60825-1 Class 2, IEC 60825 Class 2 | ||
| Safety and Regulatory | |||
| Datalogic aladdin™ | Datalogic Aladdin configuration program is available for download at no charge. | ||
| Opos/ Javapos |
JavaPOS Utilities are available
for download at no charge. OPOS Utilities are available for download at no charge. |
||
| Remote Host Download | Lowers service costs and improves operations | ||
