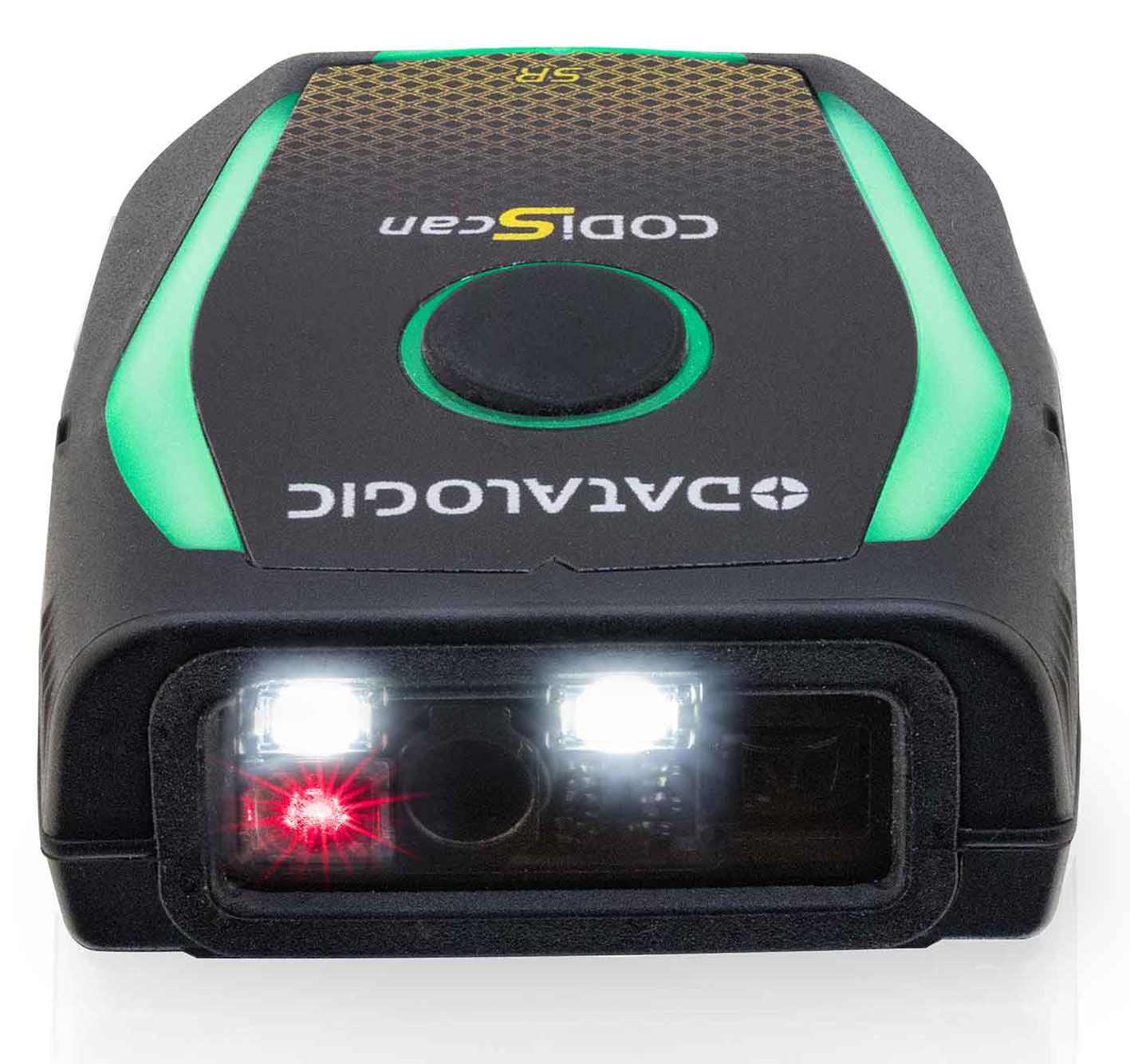

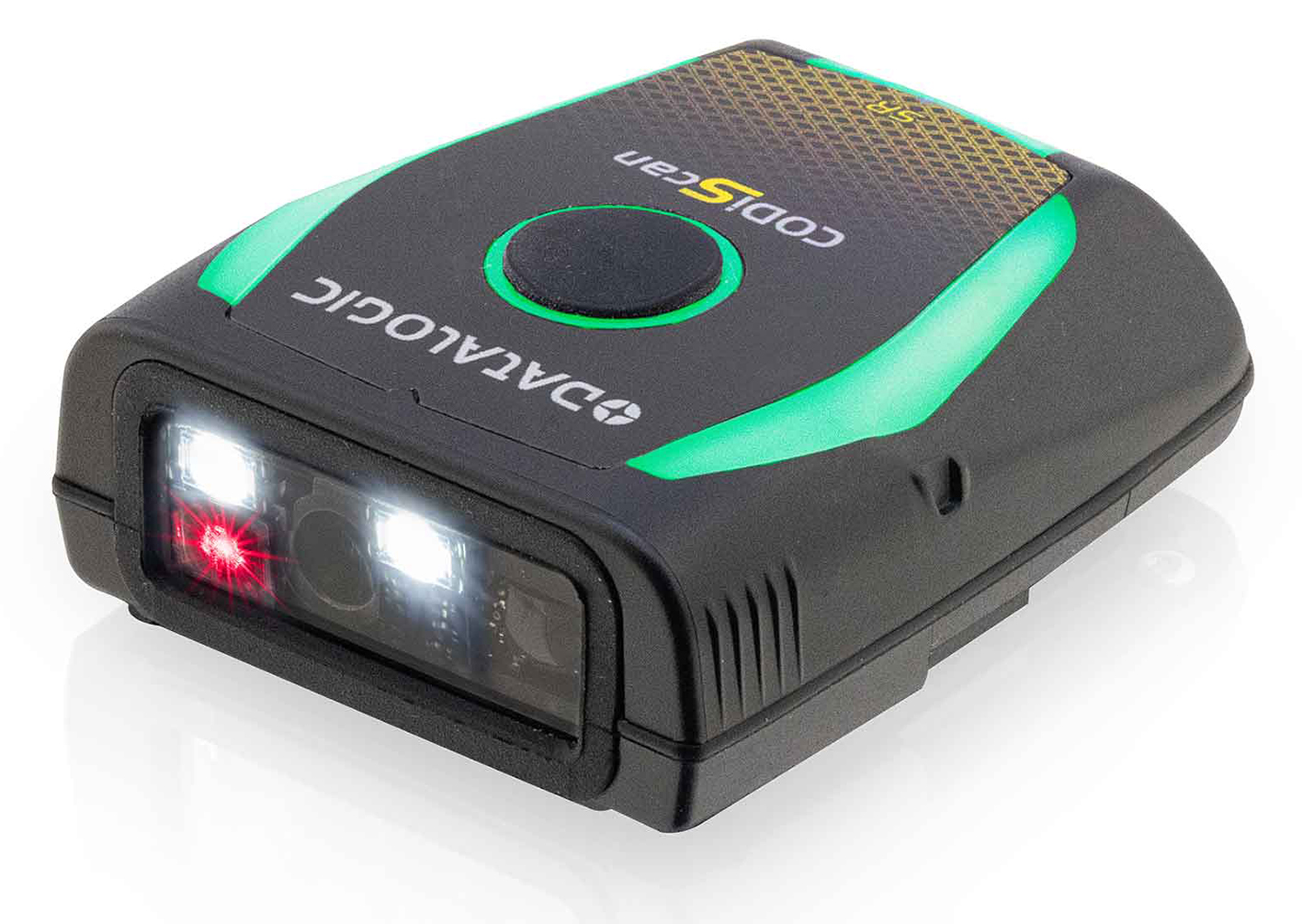

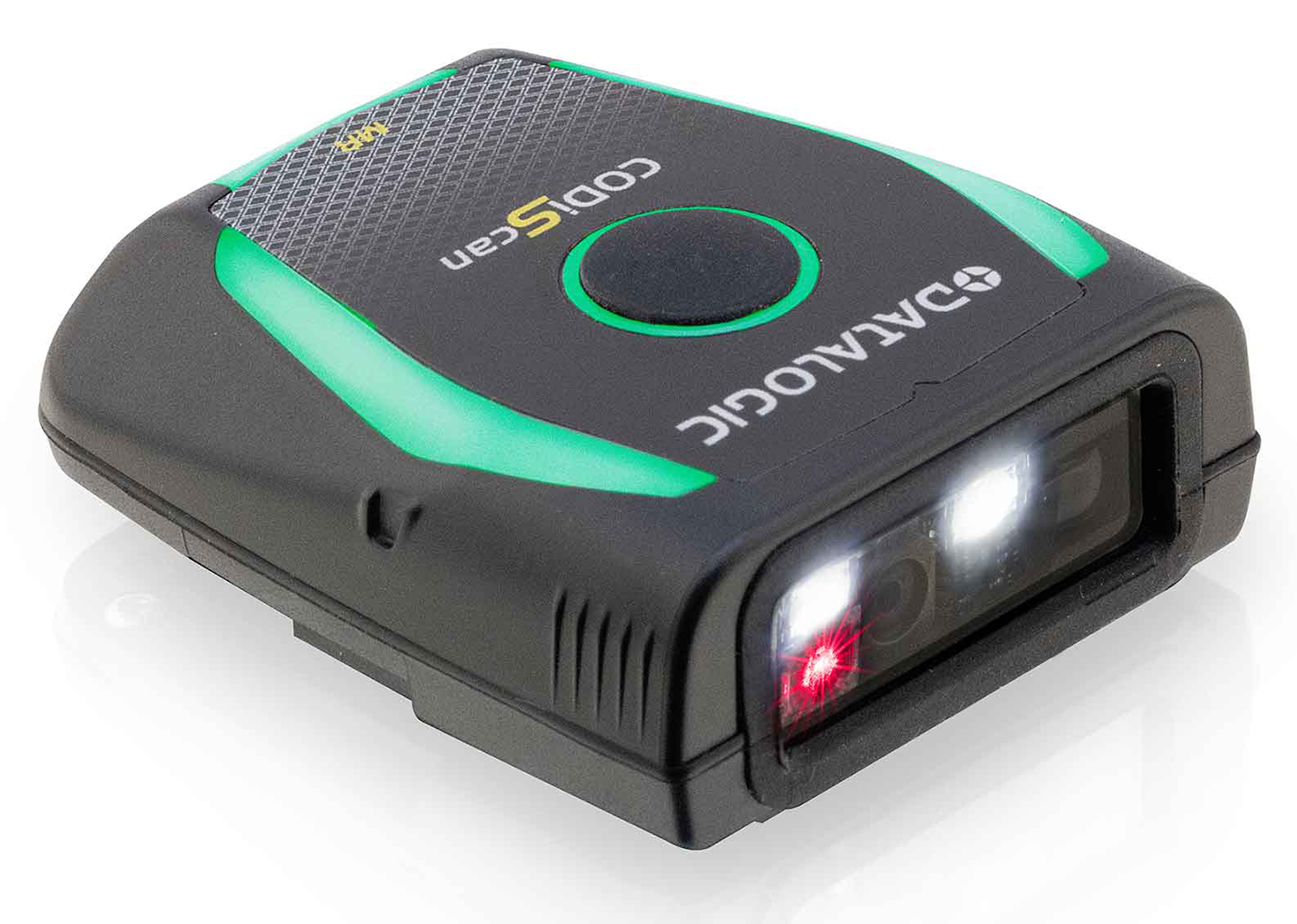

Datalogic CodiScan
Wearable 2D Barcode Scanner



● 1D / 2D Barcode Scanner
● Bluetooth and Wifi (With Gateway) Communication
● Max. 100 m transmission
● 16 hours lifespan (1 scan every 5 secs)
● IP54 Industrial Standard
● Schockproof to 1,8 meters
● Compatible with Windows, Android and iOS Devices

 Model  Scanner Type
 HS7600SR  Standart Range
 HS7600MR  Mid Range
 Reading Performance
 Imager Sensor 1280 x 960 Pixel
 Reading Field of View Standard range: Horizontal: 42°, Vertical: 32°
Mid range: Horizontal: 30°, Vertical 23°
 Ambient Light 0 - 100,000 lux
 Aimer 650 nm, 1 mW
 Scan Angle Skew: ±60°; Pitch: ±60°;Roll: ±180°
 Feedback
 Green Spot Datalogic’s ‘Green Spot’ on the code for good-read feedback
 LEDs 3 LEDs: 2 Lateral blades, rear LED spot with separate on/off – good-read, battery status, Bluetooth pairing
 Audio 85 dbA – adjustable
 Haptic Vibration feedback option available for quiet places
 Wireless Communications
 Bluetooth Wireless Technology BT BLE/CLASSIC 5.2 class 1,2,3
Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0, 5.1, 5.2
 Transmission Range Transmission Range: 100 m / 328 ft to host
 (with Gateway connect depending on Host)
 Wi-Fi (via Gateway) • IEEE 802.11b/g/n, 1×1, 20 MHz channel bandwidth, 2.4 GHz
• Wi-Fi security: WPA2/WPA3 Personal; WPA2 Enterprise PEAP, TLS, TTLS
• MQTT client protocol v. 3.1, v. 3.1.1
• WebSocket client
 Decoding Capability
 1D Linear Barcodes Auto decodes all standard 1D codes including GS1 DataBar linear codes.
 2D Codes PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode
 Postal Codes US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX)
 Electrical
 Battery Lithium Polymer 640 mAh (rechargeable)
 Charging Time 2.15 hours with Datalogic Charging Station
 Operating Time / Scans 16 hours (1 scan every 5 secs) / 12,000
scans depending on settings and environmental conditions
 Power Supply Charging Station 5 VDC (1.2A) via power supply
 Environmental
 Drop Resistance Resists multiple drops from 1.8 m / 5.9 ft onto concrete
IEC 60068-2-31:2008 – 1
 Tumbles 1,000 at 0.5 m / 1.6 ft - IEC 60068-2-31:2008 – 2
 Impact Resistance >IK06(1J) - IEC60068-2-75
 Particulate and Water Sealing IP54 - EN 60529
 Operation temperature -20°C ~ 50°C
 Charging Temperature 0°C ~ 40°C
 Storage temperature -20°C ~ 60°C
 Physical
 Height 19 mm
 Depth 53 mm
 Width 44 mm
 Weight 44 gr
 Scanning Distances
 Standart Range 1D Code 39 (3 mils) : 13 cm ~ 22 cm
Code 39 (20 mils) : 40 cm ~ 110 cm
Code 128 (5 mils) : 10 cm ~ 30 cm
EAN/UPCA (13 Mil) : 4,5 cm ~ 74 cm
2D PDF417 (5 mil) : 12 cm ~ 19 cm
DataMatrix (10 mil) : 10 cm ~ 28 cm
QrCode (15 Mil) : 4 cm ~ 37 cm
 Mid Range 1D Code 39 (20 mils) : 0 cm ~ 160 cm
Code 39 (100 mils) : 0 cm ~ 500 cm
Code 128 (5 mils) : 21 cm ~ 52 cm
UPCA (13 Mil) : 8 cm ~ 100 cm
2D PDF417 (5 mil) : 22 cm ~ 30 cm
DataMatrix (10 mil) : 20 cm ~ 30 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS, EU RoHS and R.E.A.C.H

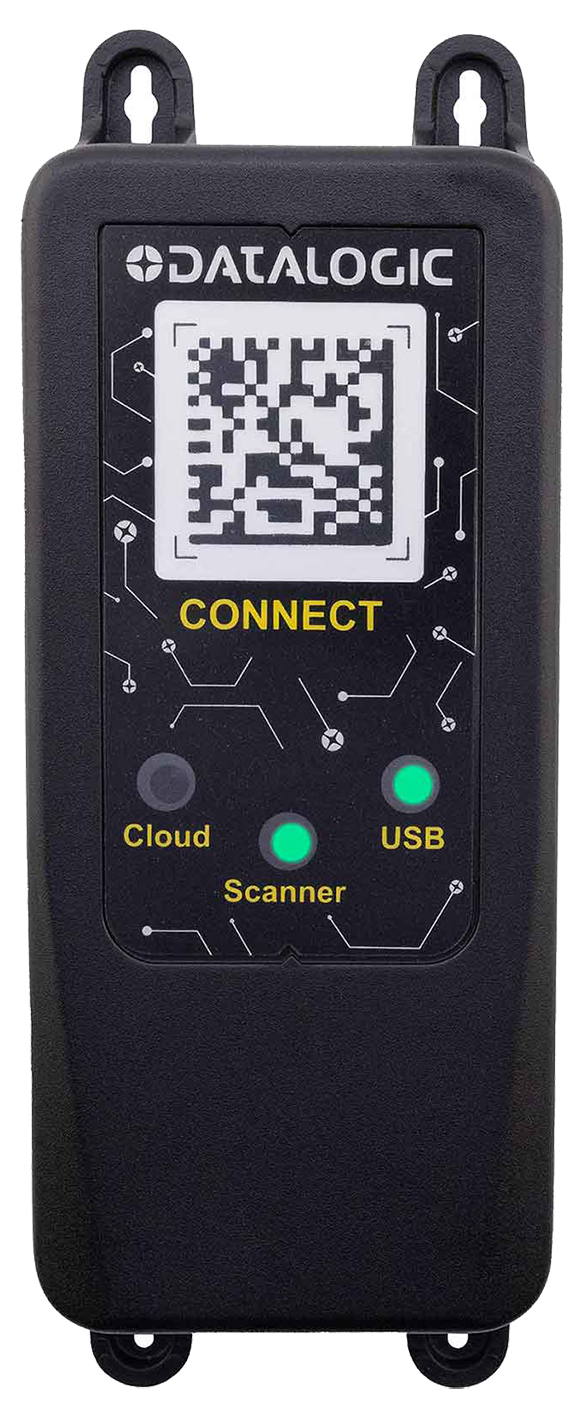

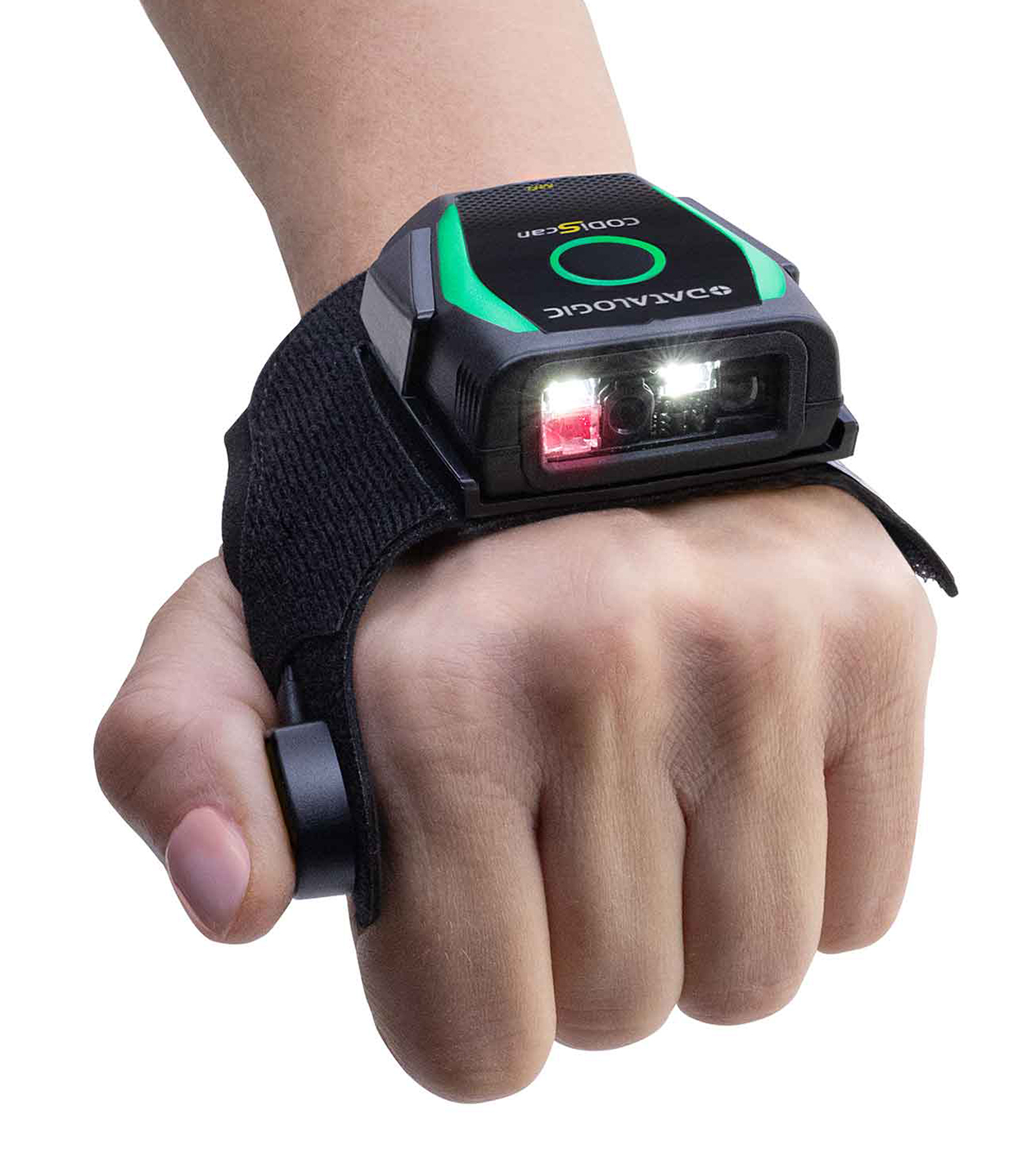

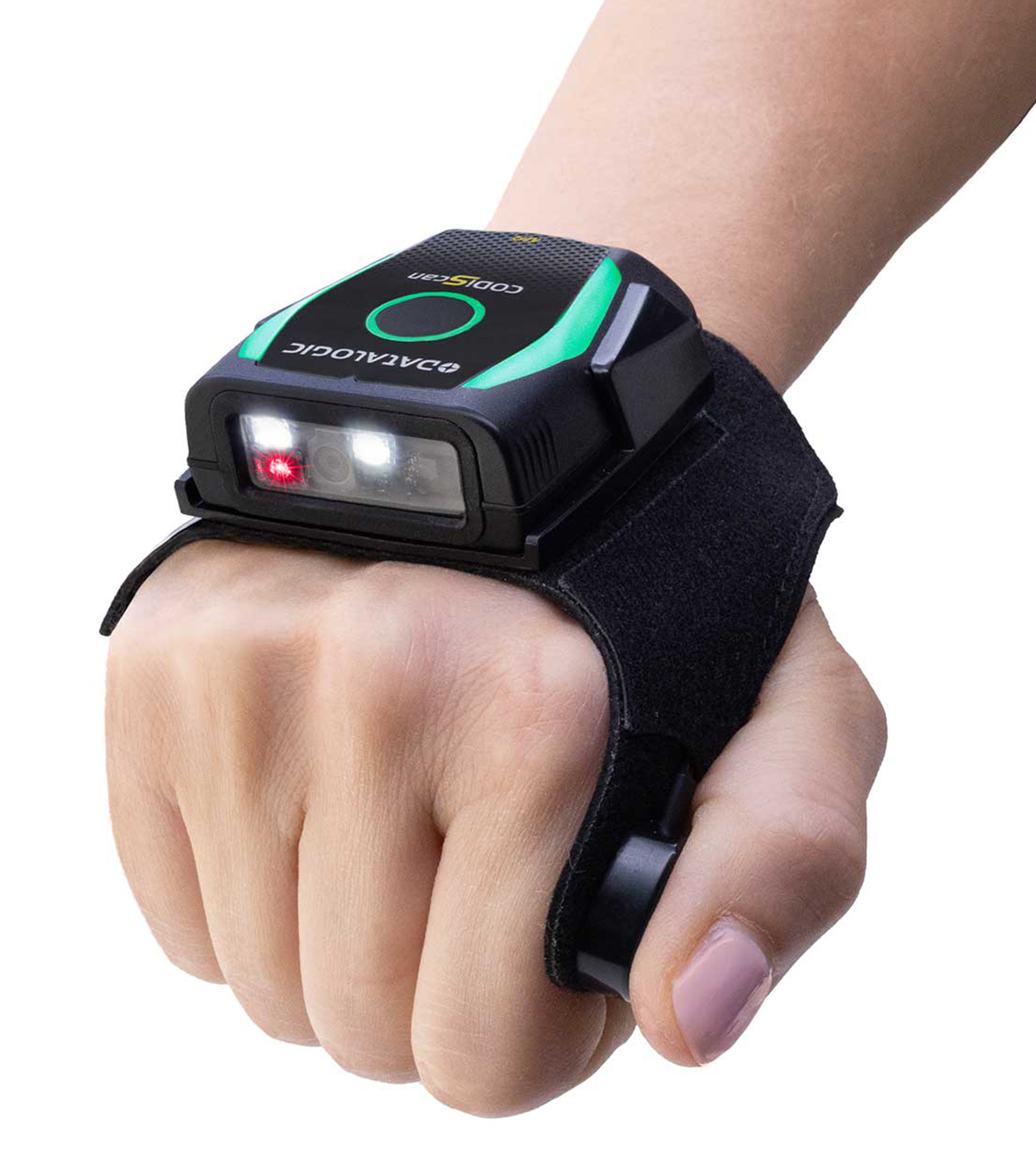

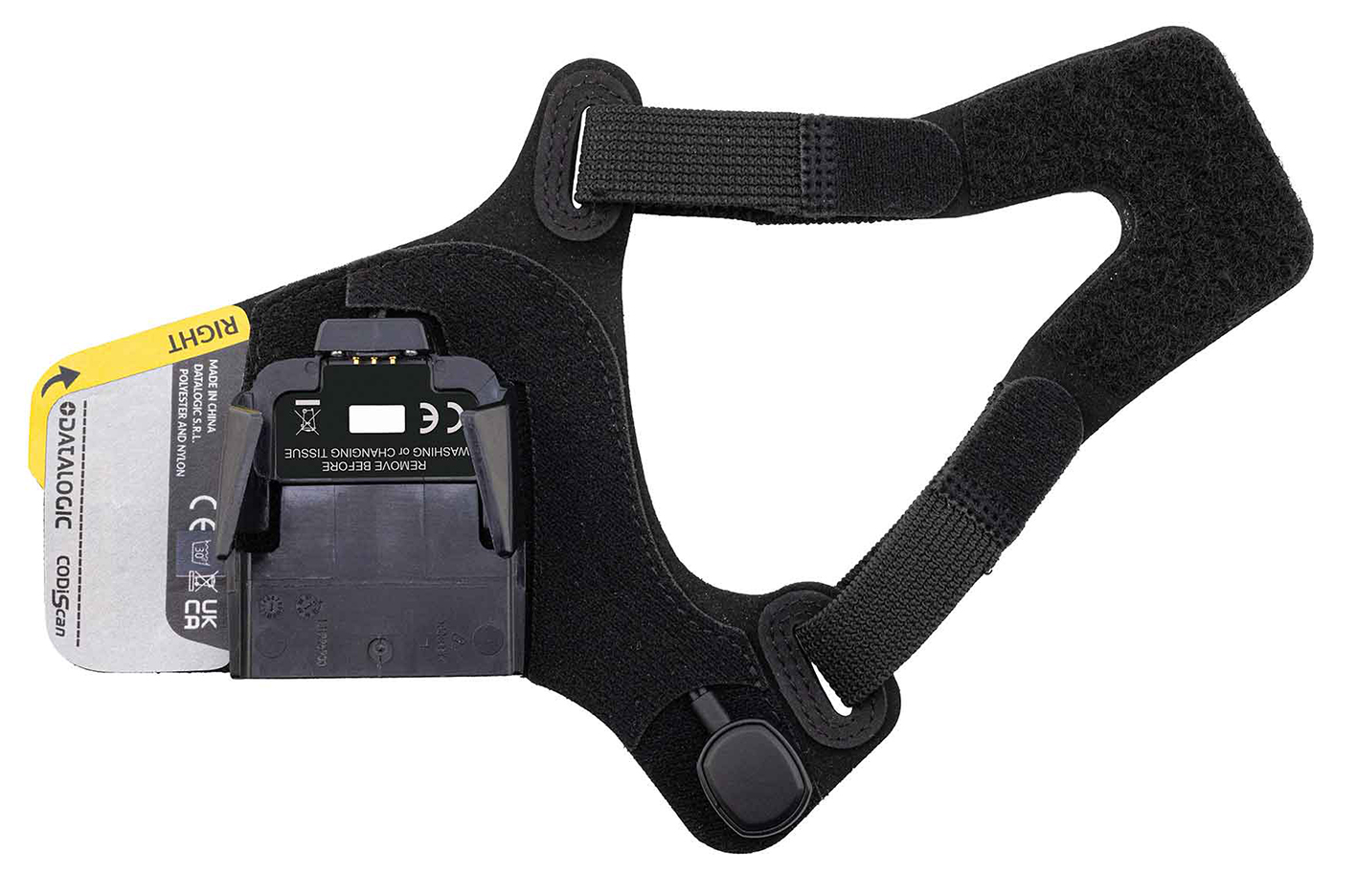

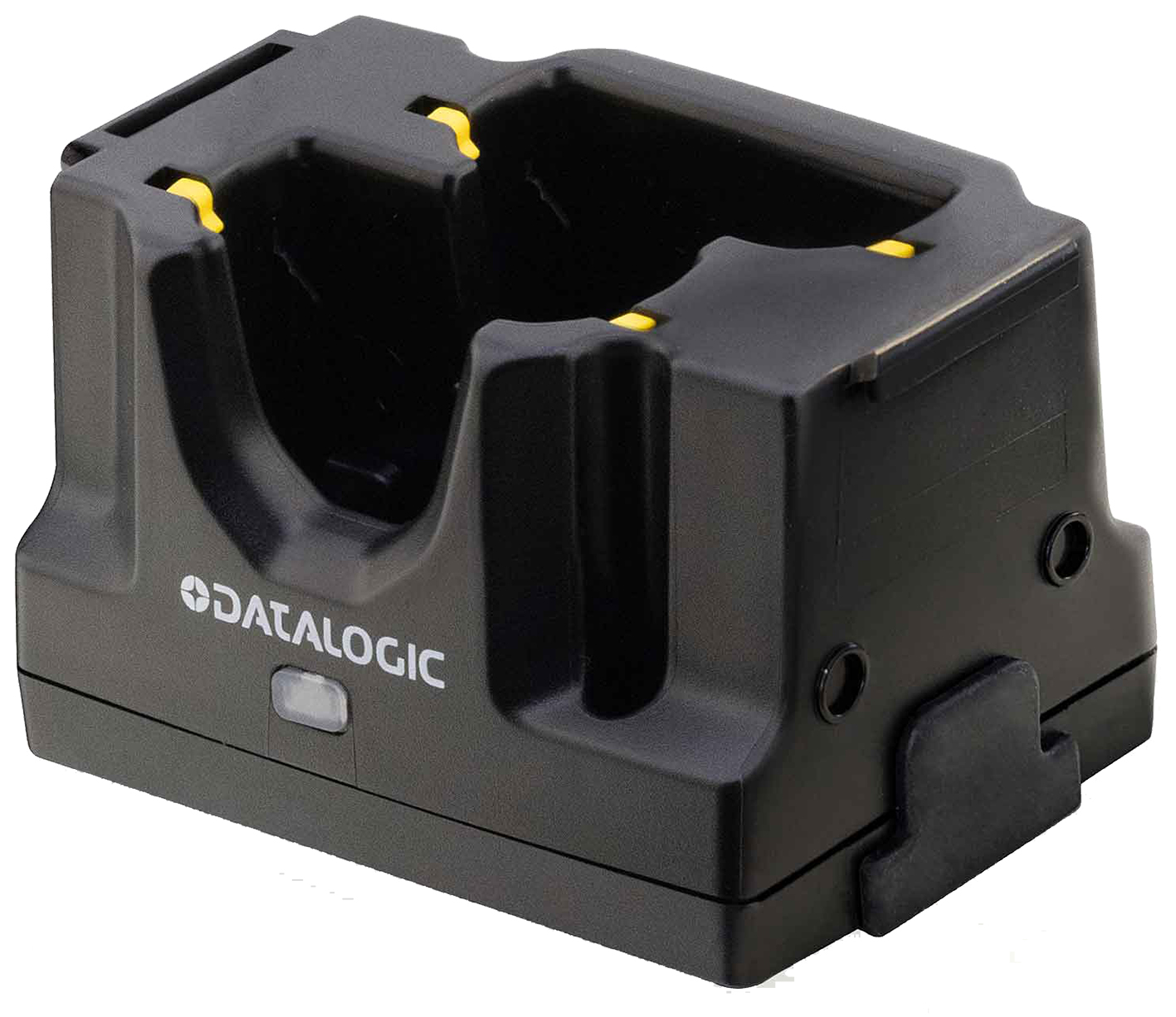

Single Cradle Glove GateWay
Turkish
 Data Sheets
English
 Data Sheets
 Reference Guide
