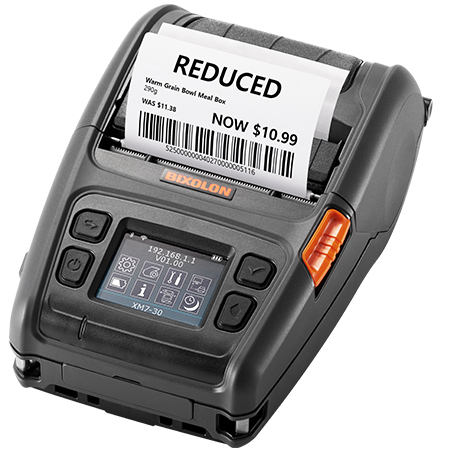

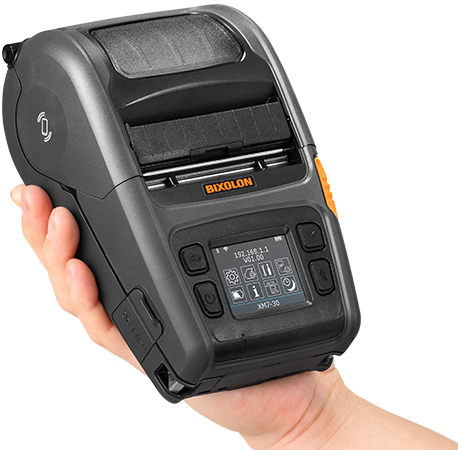

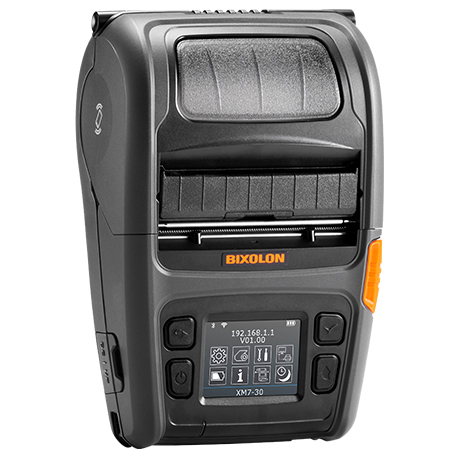

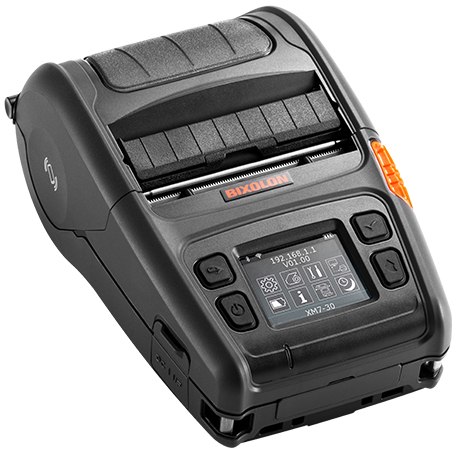

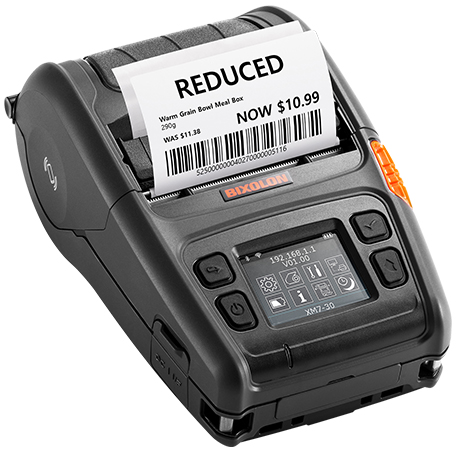

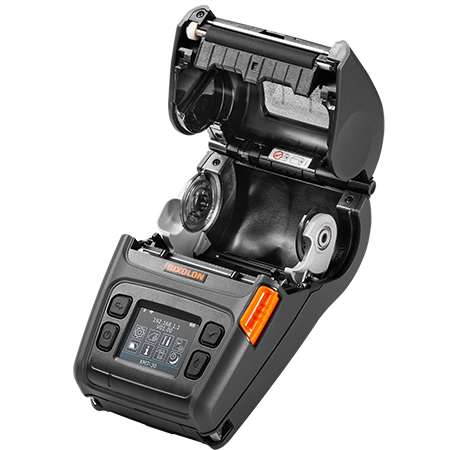

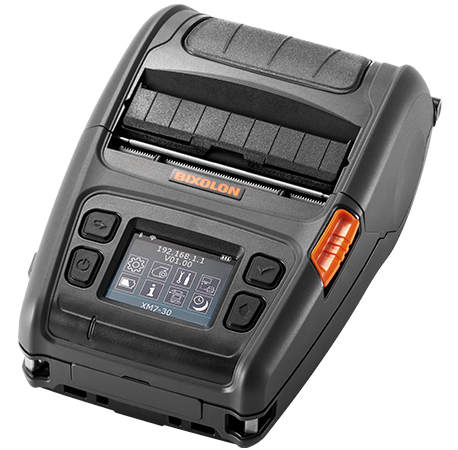

Bixolon XM7-30
Portable Barcode Printer



● Direct Thermal Printing
● 203 DPI Printing Resolution
Max. 72 mm Printing Width
● Max. 127 mm / Sec Printing Speed
● 128 MB DRAM and 256 MB Flash ROM
● 4 Lines LCD Display
● USB+ Dual (Bluetooth+Wifi) Communiation
● SLCS, BPL-Z BPL-C and BXL/POS Emulations Supported
● Windows, Linux, Android and iOS Supported

  Model Interface
 XM7-30iAWDAK  USB + Dual (Bluetooth+Wifi)
Operational
 Printing method Direct thermal
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed Max. 127 mm/sec With Liner, Linerless Paper)
 Printing width Max. 72 mm
 Memory 128 MB DRAM, 256 MB Flash ROM
 Sensors Paper end sensor
Media gap sensor
Black line sensor
Label Presence
Open cover sensor
 Display TFT LCD (IPS, 240 x 320 Pixel)
 Peeler Supported
 Communication interface XM7-30iAWDAK: USB + Dual (Bluetooth + Wifi)
 Wifi 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP)
- WEP40/104, WPA1/2 (PSK, EAP)
 Bluetooth : V5.0 (MFi certified)
 NFC For Easy Bluetooth Pairing
 Physical
 Width 119 mm
 Height 79 mm
 Depth 180 mm
 Weight 795 gr (Inlcuding Battery)
 Electrical
 Charging Cable USB Type-C
 Battery 7.2V Li-ion, 3400 mAh
 Certificate EnergyStar
 Environmental
 Operation temperature -15°C ~ 50°C
 Storage temperature -30°C ~ 70°C
 Humidty %10 ~ %80 (Non Condensing)
 Sealing IP54
 Drop Rate 2.1 meter
 Label
 Type Label, Linerless
 Width 25 ~ 80 mm
 Thickness 0.07 mm ~ 0.19 mm
 Roll Inside diameter 12 mm or 19 mm
 Roll Outside diameter 66 mm (Maximum)
 Supply Method Easy Paper Loading
 Software
 Emulation SLCS, BPL-Z, BPL-C, BXL/POS
 Driver Windows (Europlus, Seagull), Linux, MAC ve Virtual Com USB Driver, OPOS/JPOS, SAP Device Driver
 Tools Utility program
 Programs Label Artist Mobile (Android, iOS), mPrint App (Android, iOS)
 SDK / Plugin Android / iOS / Windows SDK, Linux SDK, Chrome SDK, Xamarin SDK, Web Print SDK, Cordova Plugin
 Applications Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)
 MDM BIXOLON Profile Manager-XPM™, XCM™ (Windows, Android)
 Fonts 10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
 Graphics Supporting user-defined fonts, graphics, formats, layouts, and logos
 Supported Barcode Types
 1D Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC / EAN extensions, UPC-A, UPC-E, IMB
 2D Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code,TLC 39
 Accessories
 Standart Items Belt Strap, Smart Battery, SMPS, Power Cord, Media Disk (Inner core : 12mm)
 Optional Items Shoulder Strap, Single Battery Charger, Quad Battery Charger,Serial / USB Cable, Fixed Serial / USB Cable
