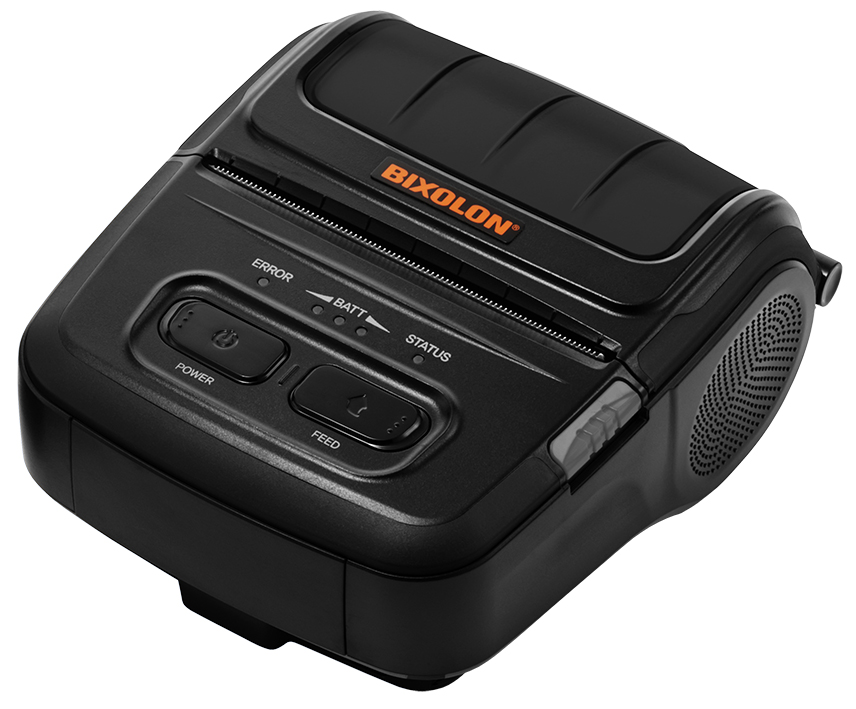

Bixolon SPP-L310
Portable Barcode Printer



● Direct Thermal Printing
● 203 DPI Printing Resolution
● Max. 104 mm Printing Width
● Max. 102 mm / Sec Printing Speed
● 128 MB DRAM and 256 MB Flash ROM
● SLCS, BPL-Z BPL-C Support
● USB, RS-232 and Bluetooth Communication
● Print to the sticky labels

  Model Interface
 SPP-L310iK  USB + Bluetooth
 SPP-L310WK  USB + +Wifi
Operational
 Printing method Direct thermal
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed Max. 127 mm/sec (With Liner)
Max. 102 mm/sec (With Linerless)
 Printing width Max. 72 mm
 Memory 128 MB DRAM, 256 MB Flash ROM
 Sensors Media Gap
Black Mark
Paper cover open
 Communication interface Serial, USB and Bluetooth
 NFC For Easy Bluetooth Pairing
 Physical
 Width 105 mm
 Height 58 mm
 Depth 126 mm
 Weight 385 gr (Including Battery)
13 gr (Only Paper)
 Electrical
 Battery 7.4V Li-ion, 2600 mAh
 Charging Time Up To 4 hours
 Environmental
 Operation temperature -15°C ~ 50°C
 Storage temperature -30°C ~ 70°C
 Humidty %10 ~ %80 (Non Condensing)
 Sealing IP54
 Drop Rate 1.8 meter
 Paper
 Type Label
 Width Max. 72 mm
 Thickness 0.07 mm ~ 0.15 mm
 Roll Inside diameter Min: 19 mm
 Roll Outside diameter 49 mm (Maximum)
 Supply Method Easy Paper Loading
 Software
 Emulation SLCS, BPL-Z, BPL-C
 Driver Windows (Europlus, Seagull), Linux, MAC ve Virtual Com USB Driver, OPOS/JPOS, SAP Device Driver
 Tools Utility program
 Programs Label Artist Mobile (Android, iOS), mPrint App (Android, iOS)
 SDK / Plugin iOS SDK, Android SDK, Windows SDK, Linux SDK, Chrome SDK
 Applications Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)
 Fonts 10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
 Graphics Supporting user-defined fonts, graphics, formats, layouts, and logos
 Supported Barcode Types
 1D Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC / EAN extensions, UPC-A, UPC-E, IMB
 2D Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code,TLC 39
 Accessories
 Standart Items Belt Clip, Battery Pack, Battery Charger, Power Cord
