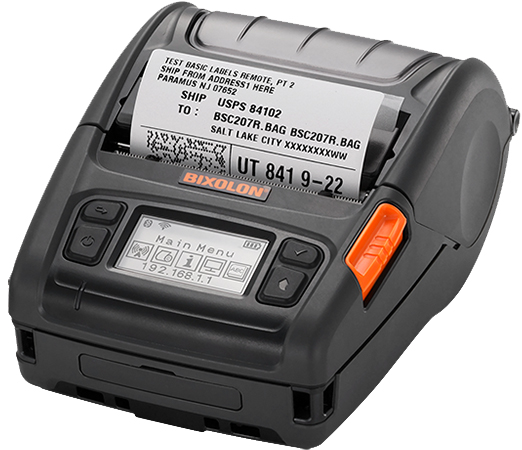

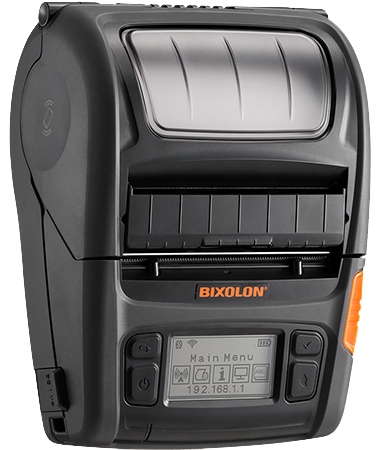

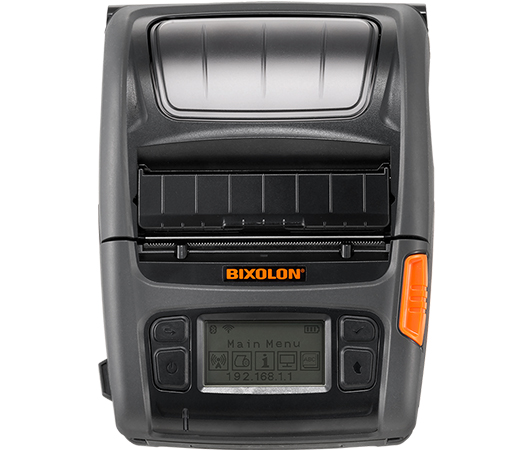

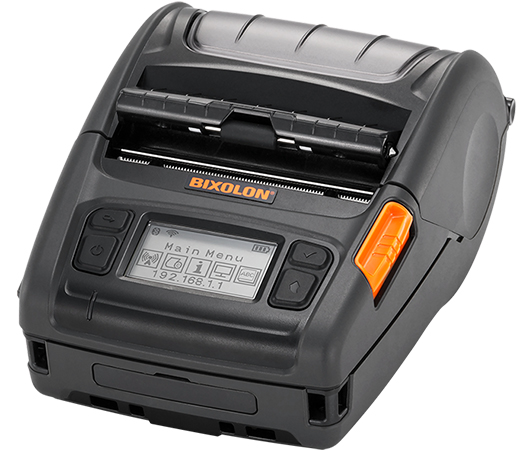

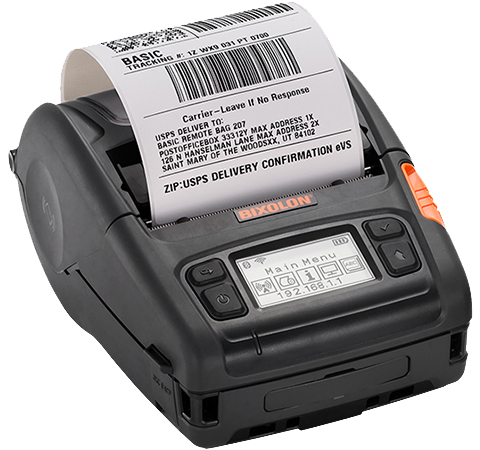

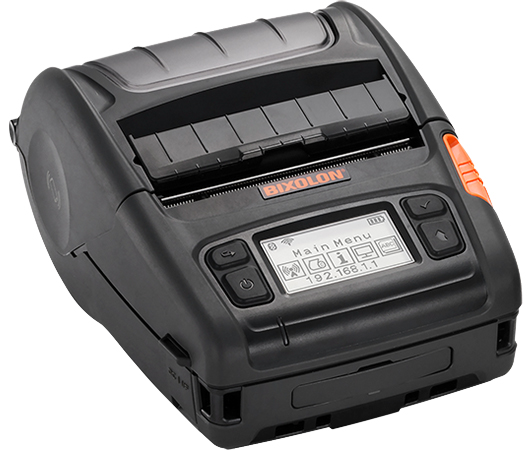

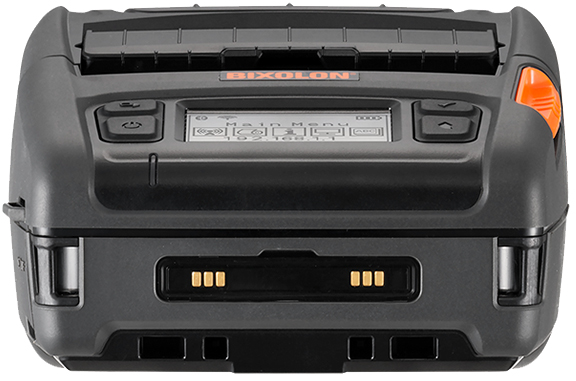

Bixolon SPP-L3000
Portable Barcode Printer



● Direct Thermal Printing
● 203 DPI Printing Resolution
● Max. 72 mm Printing Width
● Max. 127 mm / Sec Printing Speed
● 128 MB DRAM and 256 MB Flash ROM
● 4 Lines LCD Display
● USB-Bluetooth and USB-Wifi Communiation Options
● SLCS, BPL-Z and BP-C Emulations Supported
● Windows, Linux, Android and iOS Supported

 Model Interface
 SPP-L3000iK  USB + Bluetooth
 SPP-L3000WK  USB + Wifi
Operational
 Printing method Direct thermal
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed Max. 127 mm/sec With Liner, Linerless Paper)
 Printing length Max. 1016 mm
 Printing width Max. 72 mm
 Memory 128 MB DRAM, 256 MB Flash ROM
 Sensors Paper end sensor
Media gap sensor
Black line sensor
Label Presence
Open cover sensor
 Display FSTN (200 x 200 Pixel)
 Peeler Supported
 Communication interface L3000iK: USB, Bluetooth and NFC
L3000WK: USB, Wifi and NFC
 Wifi 802.11 a/b/g/n
Ad-HOC, Wi-Fi Direct, SoftAP) - WEP40/104, WPA1/2 (PSK/EAP)
 Bluetooth V4.1 Classic & LE
 NFC For Easy Bluetooth Pairing
 Physical
 Width 119 mm
 Height 79 mm
 Depth 159 mm
 Weight 584 gr (Only Device)
694 gr (With Battery)
951 gr (With Battery and paper)
1.200 gr (Package)
 Electrical
 Power input type External Power Adapter
 Power source Input: 100V ~ 240VAC,50 ~ 60 Hz, 1.5A
Output: 9 VDC, 2A
 Battery 7.3 V Li-ion, 2600 mAh
 Charging Time Up to 2.5 hrs
 Certificate EnergyStar
 Environmental
 Operation temperature -15°C ~ 50°C
 Storage temperature -30°C ~ 70°C
 Humidty %10 ~ %80 (Non Condensing)

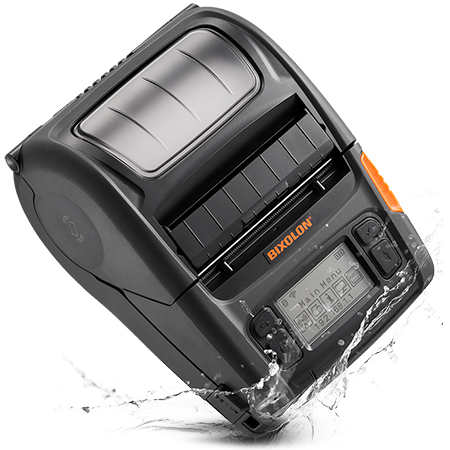

 Sealing IP54
 Drop Rate 2.1 meter
 Label
 Type Label, Linerless (Optional)
 Width 25 mm ~ 80 mm
 Thickness 0.07 mm ~ 0.15 mm
 Roll Inside diameter 12 mm or 19 mm
 Roll Outside diameter 66 mm (Maximum)

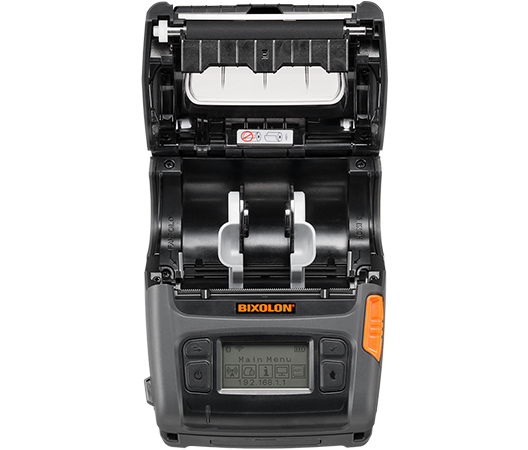

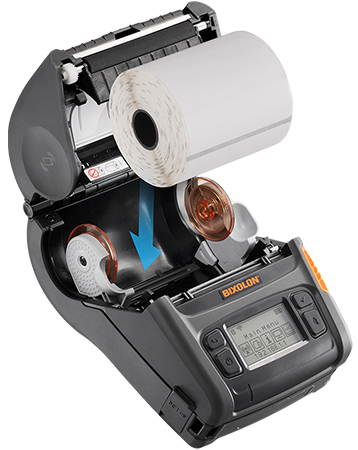

 Supply Method Easy Paper Loading
 Software
 Emulation SLCS, BPL-Z (ZPLII) and BPL-C (CPCL)
 Driver Windows, Linux, MAC ve Virtual Com USB Driver, OPOS/JPOS
 Tools Utility program
 Programs Label Artist-II, Bartender UL
 SDK / Plugin Android / iOS / Windows SDK, Linux SDK, Chrome SDK, Xamarin SDK, Cordova Plugin
 Applications Label Artist™ Mobile (Android, iOS), mPrint App (iOS), mPrint Server (Windows, iOS)
 MDM BIXOLON Profile Manager-XPM™, XCM™ (Windows, Android)
 Fonts 10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
 Graphics Supporting user-defined fonts, graphics, formats, layouts, and logos
 Supported Barcode Types
 1D Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC / EAN extensions, UPC-A, UPC-E, IMB
 2D Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code,TLC 39
 Accessories

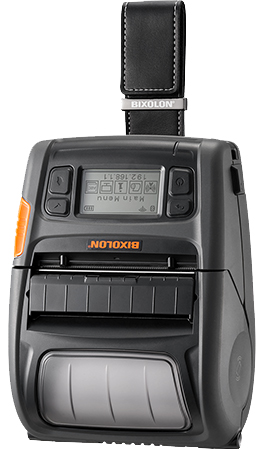

 Standart Items Belt Strap, Battery Pack, SMPS, Power Cord, Paper Disk (Inner core : 12mm)

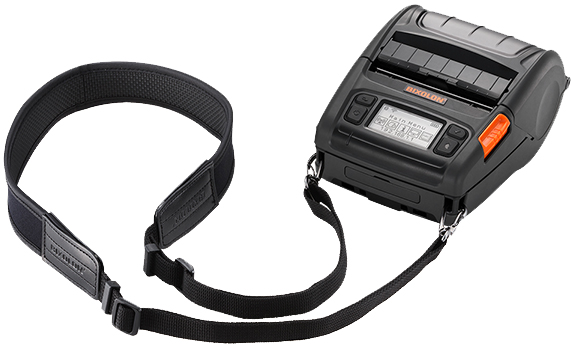

 Optional Items Smart Battery, Shoulder Strap,Single Battery Charger, Quad Battery Charger,Serial/USB Cable, Fixed Serial/USB Cable, RAM mount Vehicle-Holder, Vehicle Charger
