Operational |
|
Printing method |
Direct Thermal and Thermal Transfer |
|
Printing resolution |
203 DPI (8 dots/mm) |
|
Printing speed (Maximum) |
152 mm/sec |
|
Printing length |
Max. 1.000 mm |
|
Printing width |
Max. 108 mm |
|
Memory |
64 MB DRAM, 128 MB Flash ROM |
|

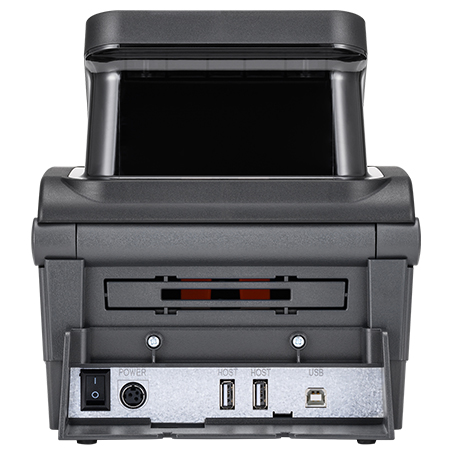

Interface |
USB (Client / Host) Port |
|
Sensor |
Transmissive (Fixed), Reflective (Adjustable) and Head Open
|
|
Tablet |
|
Operation System |
Android 13 |
|
Hafıza |
4 GB RAM, 64 GB Flash ROM |
|
Display |
Size: 8 inch |
|
Resolution: 1280 x 800 Pixel |
|
Type: IPS TFT Touch LCD |
|
Communication |
Wifi (802.11 a/b/g/n/ac) (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP), WEP40/104/WPA1/2 (PSK/EAP) |
|
Bluetooth |
|
Label |
|
Type |
Gap, Black Mark, Notch, Continuous, Fan-Fold |
|
Width |
15 mm ~ 118 mm |
|
Thickness |
0.06 ~ 0.2 mm |
|

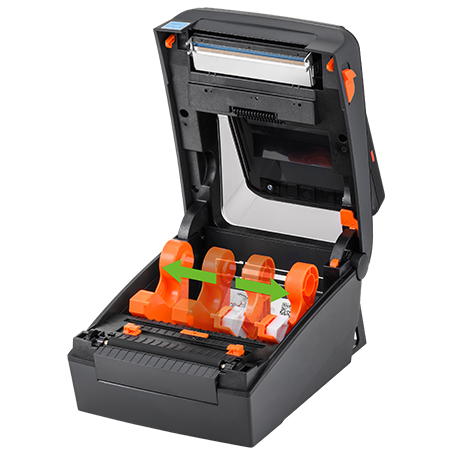

Roll Inside diameter |
25,4 mm ~ 38,1 mm |
|
Roll Outside diameter |
130 mm (Maximum) |
|
Ribbon |
|
Type |
Not Used |
|
Physical |
|
Width |
194 mm |
|
Height |
214 mm |
|
Depth |
273 mm |
|
Weight |
2,42 kg |
|
Electrical |
|
Power Type |
External Power Adaptor (EnergyStar Certified) |
|
Power source (Input) |
100V~240VAC, 50~60Hz |
|
Environmental |
|
Operation temperature |
0°C ~ 40°C |
|
Storage temperature |
-20°C ~ 60°C |
|
Operation Humidty |
%10 ~ %80 (Non Condensing) |
|
Storage Humidty |
%10 ~ %90 (Non Condensing) |
|
Software |
|
Emulation |
SLCS™, BPL-Z™ (ZPL II), BPL-E™ (EPL), BPL-D™ (DPL - Optional) |
|
Divers, Utilities, Software |
Windows Driver (Europlus/Seagull) |
|
Linux / Mac CUPS Driver |
|
Virtual COM USB/Ethernet Driver |
|
Utility Program |
|
OPOS Driver |
|
Bartender Ultralite |
|
LabelArtist™-II |
|
SDK |
Android SDK, iOS SDK, Windows SDK
Linux SDK, Xamarin SDK, Web Print SDK
XI(Optional), Cordova Plugin, MAUI SDK
Flutter Plugin, React Native SDK |
|
Fonts / Graphics / Symbologies |
|
Fonts |
10 SLCS™ Resident Bitmap Fonts |
|
One SLCS™ Resident Scalable Font |
|
16 BPL-Z™ Resident Bitmap Fonts |
|
One BPL-Z™ Resident Scalable Font |
|
5 BPL-E™ Resident Bitmap Fonts |
|
23 Code Page |
|
Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
|
Graphics |
Supporting user-defined fonts, graphics, formats and logos |
|
Supported Barcode Types |
|
1D |
Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI,Plessey, Postnet, GS1 DataBar (RSS-14),Standard 2-of-5, UPC/EAN extensions,UPC-A, UPC-E, IMB |
|
2D |
Aztec, Codablock, Code49, Data Matrix,MaxiCode, MicroPDF417, PDF417,QR Code, TLC39 |
|
Accessories |
|
Optional Items |

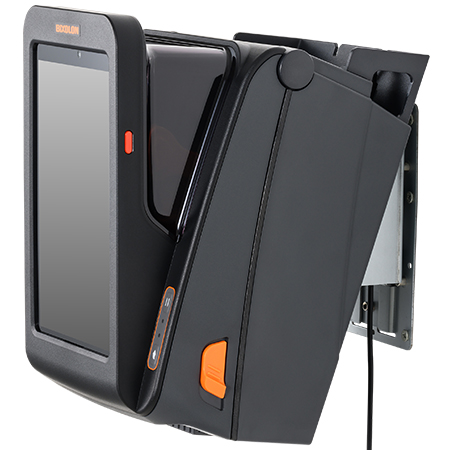

Peeler, Cutter and Wall Mount |
