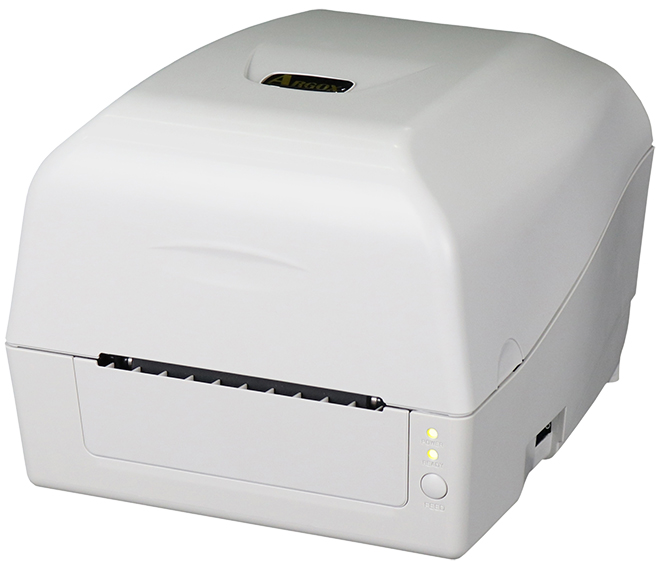

Argox CP-3140EX
Intermediate Level Barcode Printer



● Direct Thermal And Thermal Printing
● 300 DPI Printing Resolution
● Max. 105,7 mm Printing Width
● Max. 1270 mm Printing Length
● Max. 101,6 mm / Sec Printing Speed
● 32 MB DRAM and 16 MB Flash ROM
● PPLA, PPLB and PPLZ Support
● RS-232C, USB (Host/Client) And Ethernet Port

Print Specifications
 Printing method Direct thermal and thermal transfer
 Printing resolution 300 DPI (12 dots/mm)
 Printing speed (Maximum) 101,6 mm/sec
 Printing length Max.1270 mm
 Printing width Max. 105,7 mm
 Memory 32 MB DRAM and 16 MB Flash ROM
 Proccessor 32 Bit RISC proccessor

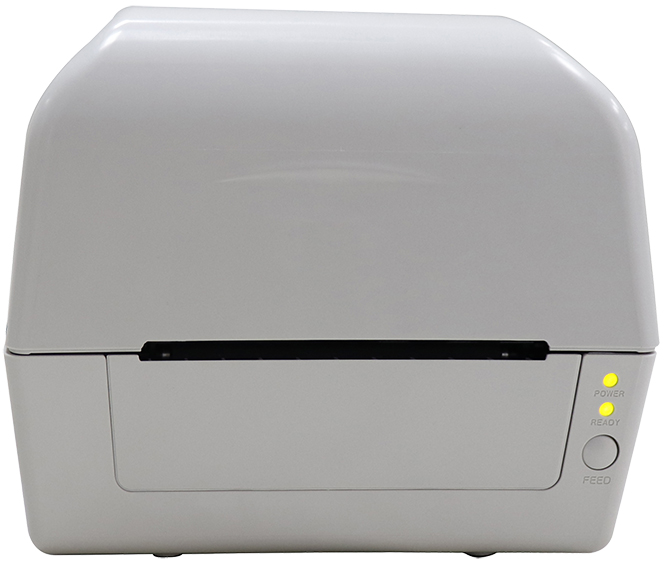

 Operation Interface LED Indicator (2 Pcs) and Button (Feed) 1 Pcs)

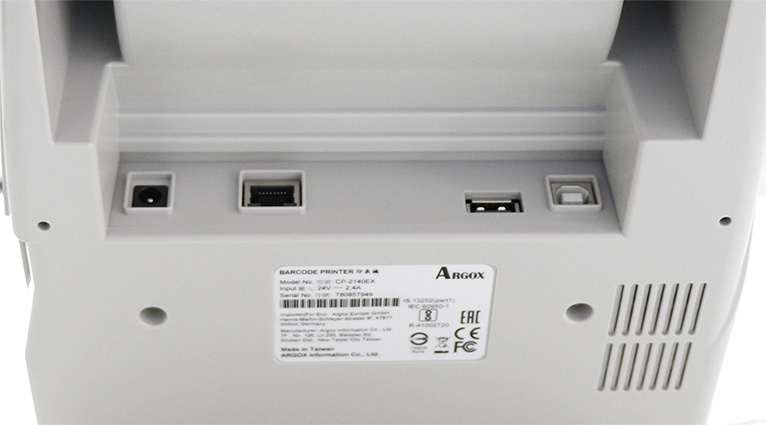

 Communication Interface Ethernet, USB device, RS-232, USB host
 Sensors Reflective sensor x 1 (movable)
Transmissive sensor x 1 (Center fixed)
 Agency Listing CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC
 Physical Characteristics
 Dimensions Width: 226 mm
Height: 188 mm
Depth: 276 mm
 Weight 4.6 lbs (2.1 kg)
 Electrical Characteristics
 Power Input Type External Power Adapter
 Power Source Input: 100-240V, 50 ~ 60 Hz
Output: 24V, 2.4A
 Environment Characteristics
 Temperature Operation: 4°C ~ 38°C (40°F ~ 100°F)
Storage : -20°C ~ 50°C (-4°F ~ 122°F)
 Humidity 10% ~ 90% (Non Condensing)
Consumables Specifications (Media)
 Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
 Width 20 mm ~ 118 mm
 Thickness 0,06 mm ~ 0.2 mm
 Core Inner 25,4 mm
 Outside Diameter Max. 127 mm
Consumables Specifications (Ribbon)
 Type Wax , Wax/Resin, Resin
 Ink Side In or Out (Auto Detect)
 Length Max. 300 meter
 Width 25 mm ~ 110 mm
 Core Inner Size 12,7 mm or 25,4 mm
 Roll Outer Size Max. 67
Software
 Windows Drivers Win Vista / 7 / 8 / 8.1 / Win 10, Windows Server 2003 / 2008 / 2012 (32 Bit & 64 Bit)
 Linux Drivers Supported
 Label Editing Bartender UltraLite (Free)
 Utility Printer Utility and Font Utility
 Supported Emulations PPLA, PPLB, PPLZ (Optional)
 Graphics PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI
 Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
 Supported Barcode Symbologies
 1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
 2D Barcodes QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
 Optional Items
 Optional Items (Accessories) Guillotine Cutter
Rotary Cutter
Peeler
External media stand
Turkish
 Data Sheets
 İngilizce
 Data Sheets
 Users Manual
 Seagull Windows Driver  Windows XP, Vista, 7, Server 2003, Server 2008, Server 2008R2 (32 Bit & 64 Bit)
 Bartender UltraLite  Label Design and Printing Software
 Printer Utility  Printer Configuration Software
 Font Utility  Font Create / Download Software
 S.D.K  Software Developement Kit
