Print Specifications |
|
Printing method |
Direct thermal and thermal
transfer |
|
Printing resolution |
203 DPI (8 dots/mm) |
|
Printing speed (Maximum) |
127 mm/sec |
|
Printing length |
Max.2540 mm |
|
Printing width |
Max. 108 mm |
|
Memory |
128 MB DRAM and 128 MB Flash ROM |
|
Proccessor |
32 Bit RISC proccessor |
|
Consumables Specifications |
|
Sensors |
Reflective sensor x 1 (movable) |
|
Transmissive sensor x 1 (Center fixed) |
|
Media Type |
Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
|
Media |
Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm)
5”(127mm) OD on a 1” (25.4mm) ID core |
|
Ribbon |
Ribbon width: 1”~4”(25.4mm~102mm), Ribbon length: Max. 300m.
Core size ID 1”(25.4mm), Core width: 2.6”(67mm)
Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
|
Fonts & Symbologies |
|
Fonts |
Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation
Soft fonts are downloadable
Ability to print any Windows True Type font easily. Support scalable font |
|
1D Barcodes |
UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked |
|
2D Barcodes |
QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode |
|
Graphics |
PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI |
|
Emulation |
PPLA, PPLB, PPLZ(Optional) |
|
Interface Characteristics and Integration |
|
Operation Interface |
LED Indicator x 2, Button(Feed) x 1 |
|
Communication Interface |

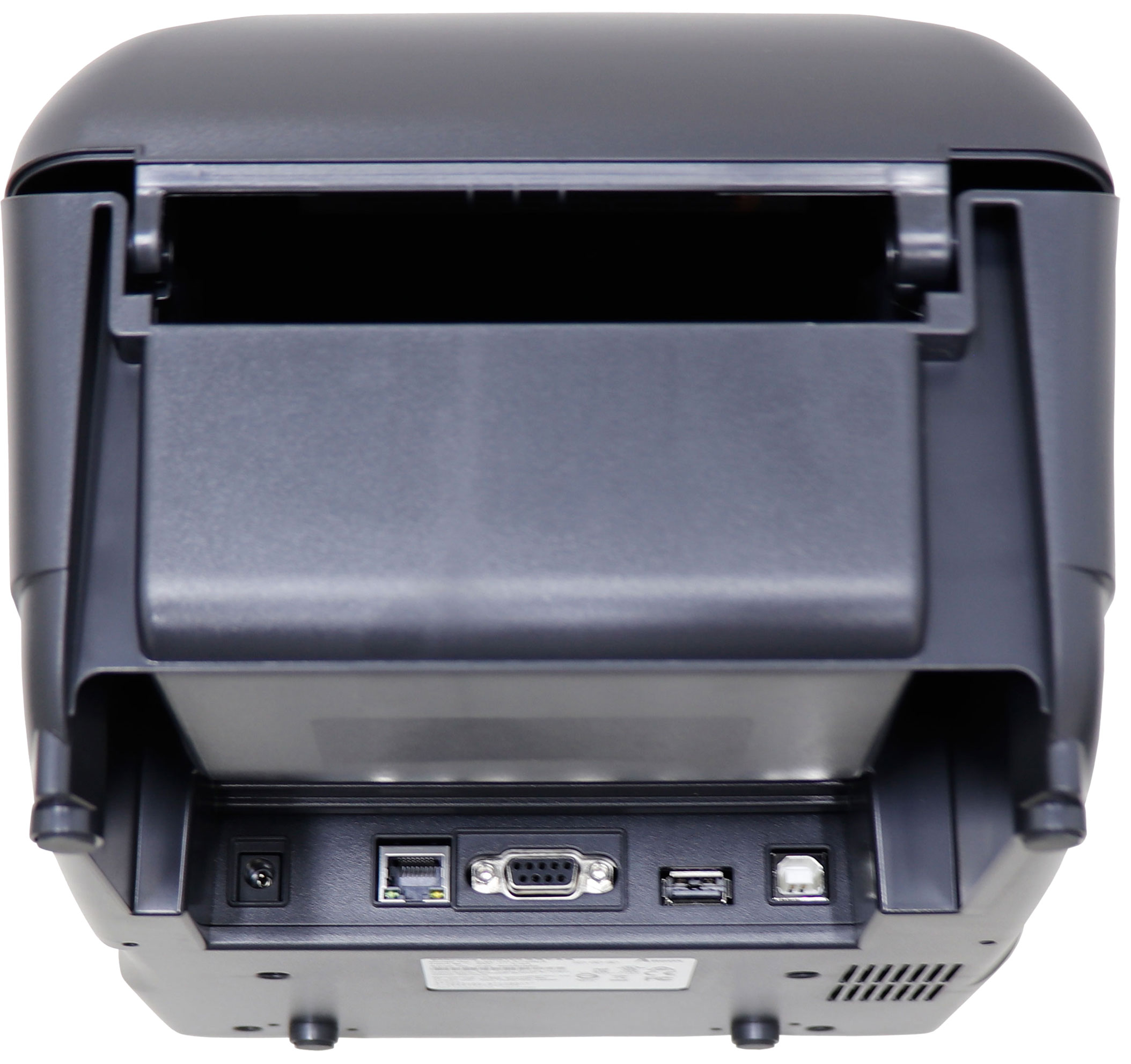

Ethernet, USB device, RS-232, USB host |
|
Software-label Editing |
Windows Driver for Windows Vista/Win7/Win8/Win10, BarTender® from Seaguall Scientific |
|
Software-Utility |
Printer Utility, Font Utility |
|
Database Link |
Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) |
|
Operating & Environment Characteristics |
|
Power Source |
Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A |
|
Operation Environment |
Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing,
Storage Temperature: -4°F~122°F (-20°C~50°C) |
|
Agency Listing |
CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC |
|
Physical Characteristics |
|
Printer Dimensions |
W 226mm x H 188mm x D 276mm |
|
Printer Weight |
4.6 lbs (2.1 kg) |
