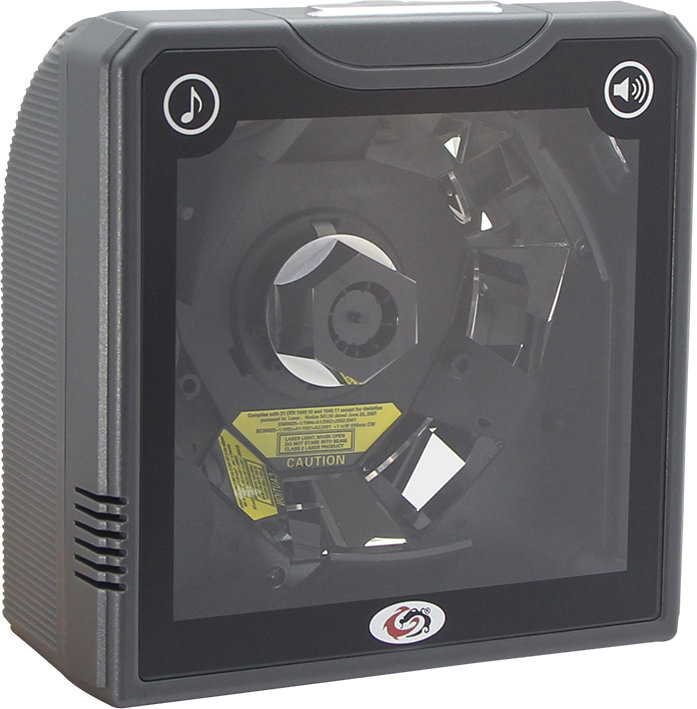

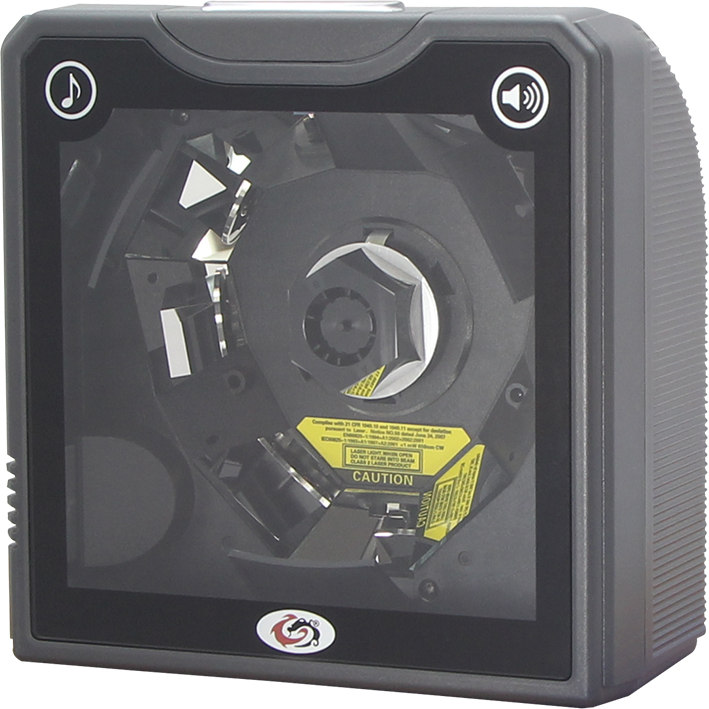

● 1D Omnidirectional Laser Barcode Scanner
● 54 Number of scan Line
● 3600 Scan per second
● 0,127 mm (5 mil) resolution
● 0 ~ 216 mm scanning distance
● USB HID, RS-232 and USB-VCP Interface
| Operational | |
| Light source | 650 nm visible laser diode (VLD) |
| Number of Scan line | 54 |
| Depth of field | 0 ~ 216 mm |
| Scan Rate | 3600 scans/sec |
| Minimum Bar Width | 0,125 mm (5 mil) |
| Print Contrast | %30 (@UPC/EAN 100%) |
| Indicators (LED) | Blue And Red LED |
| Beeper Operation | Programmable tone & beep time |
| System Interfaces | USB HID, RS-232 and USB-VCP |
| Physical | |
| Width | 152 mm |
| Height | 152 mm |
| Depth | 75 mm |
| Weight | 669 Gr |
| Cables | Standard 2 meter straight |
| Case Material | Abs + PC |
| Color | Black |
| Electrical | |
| Input Voltage | 9V DC |
| Static Current | 500 mA |
| EMC | CE & FCC DOC compliance |
| Environmental | |
| Operation temperature | 0°C ~ 45°C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Ortam Işık Seviyesi | Max. 10.000 Lux (Day Light) |
| Decode Capabilities | |
| Barcode Types | UPC/EAN/JAN, UPC/EAN with Supplementary, JAN 8 & JAN 13, ISBN/ISSN, EAN, Code 39, Code 39 with full ASCII, Code 93, Code 128, Codabar (NM7), Trioptic Code 39, MSI/Plessey, GS1 Code, Interleaved 2 of 5, Addendum 2 of 5, IATA Code, China Postal Code, Code 32, Industrial 2 of 5, Standart 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS Variants |
| Turkish | ||
| Data Sheets |
 |
|
| English | ||
| Data Sheets |
|
|
| Programming Guide |
|
|
