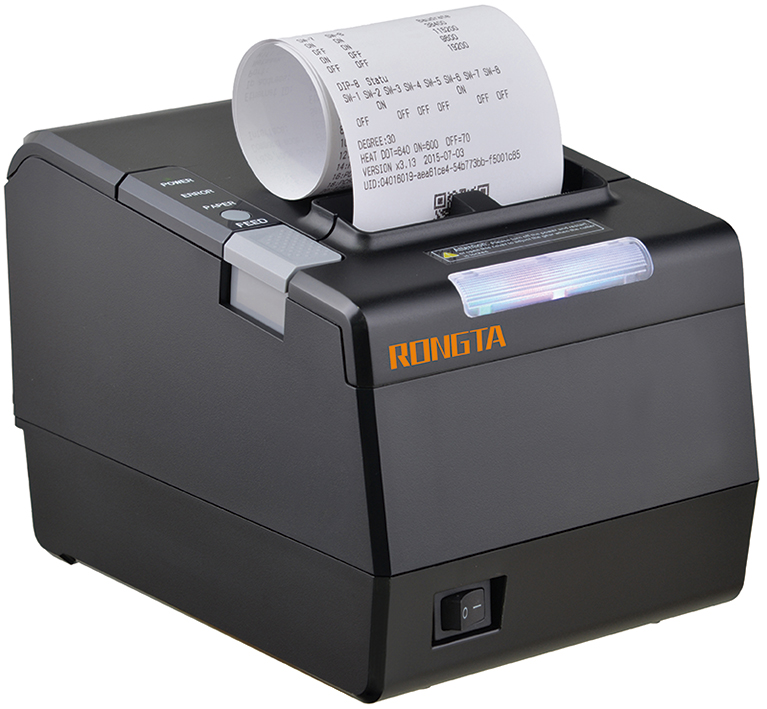

Rongta RP850
Desktop Receipt/Pos Printer



● Direct thermal printing
● Max. 72 mm printing width
● Max. 300 mm /sec printing speed
● RS-232C, USB and Ethernet port
● Ability to Print on Black Mark Paper
● ESC/POS support
● Auto Cutter and Alarm Features

Operational
 Printing method Thermal Line
 Printing resolution 8 dots/mm, 576 dots/line
 Printing speed Max. 250 mm/sec
 Printing width Max. 72 mm
 Communication interface RS-232C, USB and Ethernet
 Drawer Port 1 Port
 Flash Memory 8 Mbit
 Data receiving buffer 128 KByte
 Sensors Paper Near End Sensor
Paper End Sensor
 Auto Cutter Type: Guillotine
Life 1.00,000 Cuts
 MCBF 60 million lines
 TPH Life 100 km
 Physical
 Width 145 mm
 Height 148 mm
 Length (Depth) 195 mm
 Weight 1.3 Kg
 Material ABS Plastic
 Electrical
 Power input type External adaptor
 Power source AC100 ~240V (±10%) DC 24V, 2A
 Environmental
 Temperature Operation : 0°C ~ 50°C
Storage: -10°C ~ 60°C
 Humidty Operation : %10 ~ %80 (Non Condensing)
Storage: %10 ~ %90 (Non Condensing)
 Paper
 Type Thermal receipt paper
 Width Max. 79,5 mm (±0,5 mm)
 Roll Inside Diameter 13 mm (Min.)
 Roll Outside diameter 80 mm (Max.)
 Thickness 0.06 mm ~ 0.07 mm
 Software
 Windows Compatibility Windows 2000/XP/VISTA/WIN7
Supported printing language Compatible with command ESC/POS
Supported barcodes types UPC-A, UPC-E, Code 39, Code 128, EAN 128, JAN-8,JAN-13 (EAN), Interleaved 2 Of 5, Codabar
 Fonts
 Character Set ANK, GB18030(Chinese)
 Print Size ANK: 12 x24,9x17, Chinese: 24 x 24
 Character Per Line FontA:48 FontB:64
Turkish
 Data Sheet
English
 Data Sheets
 User Manual
 Windows Driver  Windows 2000, XP, Vista, 7 (32 Bit / 64 Bit)
