System |
|
Proccessor |
Intel I5 (5200U) 2 Core 1.7 Ghz |
|
Memory |
8 GB DDR3 (1600 Mhz) |
|
Disk |
128 GB mSATA SSD |
|
OS Support |
Windows 7, Windows 8.1, Windows 10 (Not Installed) |
|
Display |
|
Panel |
User Display: 15.6 Inch BacLight LED |
|
Customer Display: 10.1 Inch BacLight LED (Optional) |
|
Resolution |
User Display: 1366 x 768 Pixel |
|
Customer Display: 1280 x 800 Pixel |
|
Touch Screen |
10 Point Multi Touch Capacitive |
|
Brigtness |
220 ~ 250 Nits |
|

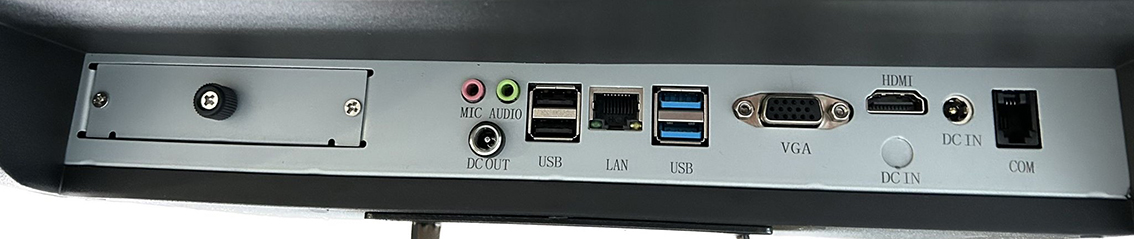

Input / Output Ports |
|
DC IN |
1 Pcs (12V, 4A) |
|
VGA |
1 Pcs (DB-15 Pin) |
|
HDMI |
1 Pcs |
|
USB |
4 Pcs (2 Pcs USB 2.0, 2 Pcs USB 3.0) |
|
LAN |
1 Pcs (RJ-45) 100 Mbit |
|
RS-232 |
None |
|
Mic In |
1 Pcs |
|
Speaker |
1 Pcs |
|
Electrical |
|
Power Consumption |
- |
|
Environmental |
|
Temperature |
Operation: -10 °C ~ 60 °C |
|
Storage :-20 °C ~ 70 °C |
|
Humidty |
Operation: %0 ~ %95 |
|
Storage :%10 ~ %90 |
|
Physical |
|
Package Dimensions |
Width: 356 mm |
|
Height: 360 mm |
|
Depth: 290 mm |
|
Gross Weight |
8 Kg. |
|
Color |
Black |
|
Case Material |
Plastic |
|
Package Contents |
|
Package Contents |
Power Cable (1 Pcs) |
|
Driver CD (1 Pcs) |
