Palmx Athena POS
Touch POS Terminal



● 2 Differenr Proccessor
● 4 GB / 8 GB RAM Memory Options
● 128 GB mSATA SSD Disk
● 15.6 Inch Multi Touch Display
● 1368 x 768 Display Resolution
● 5 x USB Port
● 1 / 2 COM Port
● Support Windows 7 / 8 / 8.1 / 10 (Not Installed)

 Model CPU  Screen Size Resolution Memory Disk
 S1619  Celeron  15.6"  1366 x 768 4 GB 128 GB
 S16142  I5  15.6"  1366 x 768 8 GB 128 GB
System
 Model: S1619 Intel J1900 4 Core 2.0 Ghz
(2 MB Cache Memory, Max. 2.42 Ghz)
4 GB DDR3L (1600 Mhz) (1 Pcs SO-DIMM Soket)
Fanless
 Model: S1642 Intel I5 4200U 2 Core 1.7 Ghz
(3 MB Cache Memory, Max. 2.60 Ghz)
8 GB DDR3L (1600 Mhz) (1 Pcs SO-DIMM Soket)
With Fan
 Disk 128 GB mSATA SSD
 OS Support Windows 7, Windows 8.1, Windows 10 (Not Installed)
 Certifications CE, FCC, RoHS
 Display
 Panel 15.6 Inch TFT LED
 Resolution 1366 x 768 @60 Hz
 Touch Screen 5 Point Multi Touch Capacitive
 Customer Display 2 Lines VFD (Optional)

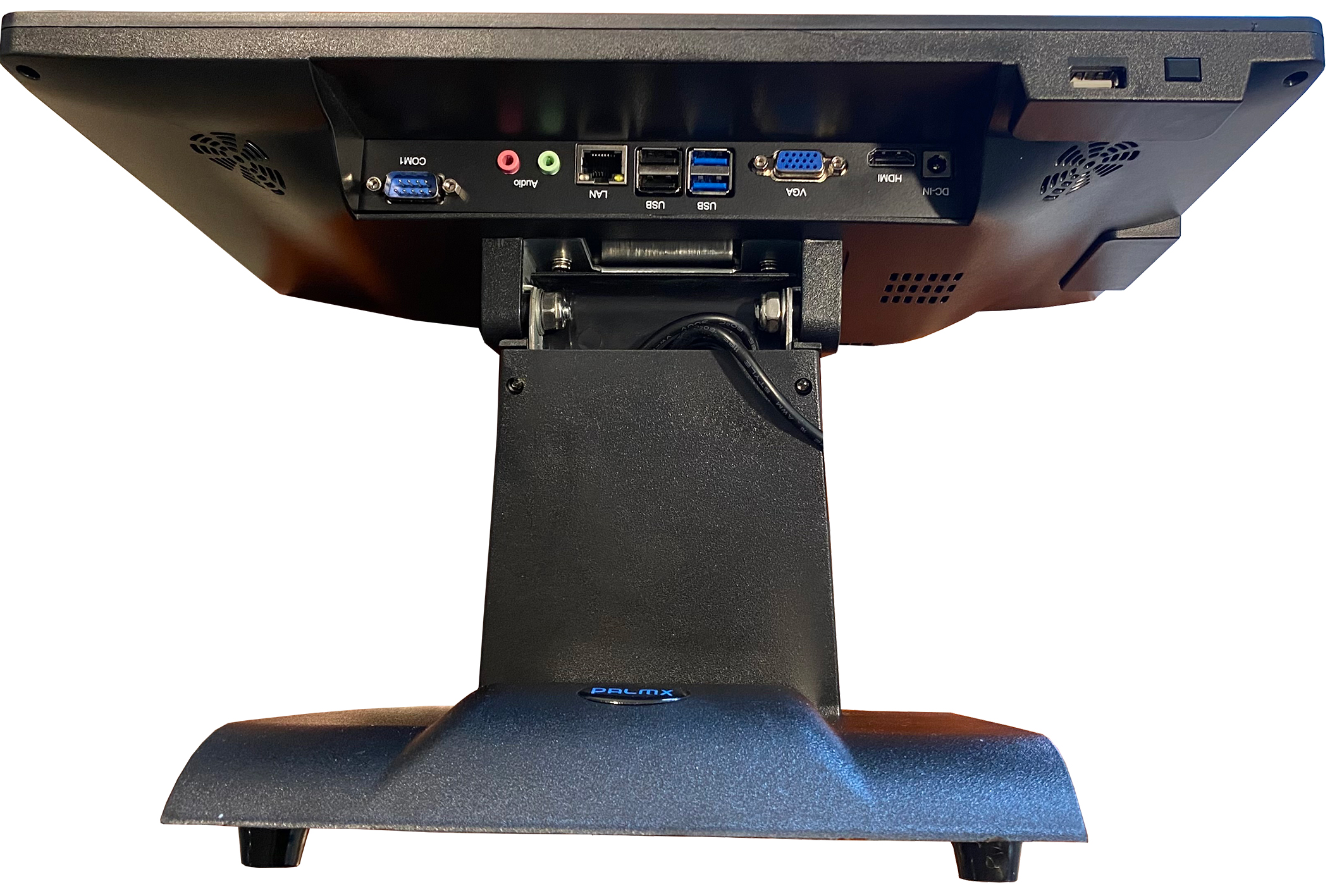

 Input / Output Ports
 DC IN 12V (1 Pcs)
 VGA DB-15 Pin (1 Pcs)
 HDMI 1 Pcs
 USB 3.0 1 Pcs
 USB 2.0 5 Pcs
 LAN RJ-45 (1 Pcs)
 COM 4 Pcs
 Mic In 1 Pcs
 Speaker 1 Pcs
 Electrical
 Power Consumption Max. 60 Watt
 Environmental
 Temperature Operation: 0 °C ~ 40 °C
Storage :-20 °C ~ 60 °C
 Humidty Operation: %20 ~ %80
Storage :%20 ~ %80
 Physical
 Package Dimensions Width: 425 mm
Height: 405 mm
Depth: 260 mm
 Gross Weight 6,60 Kg.
 Color Black
 Case Material Plastic
 Package Contents
 Package Contents Power Cable (1 Pcs)
Driver CD (1 Pcs)
Turkish
 Data Sheets
 English
 Data Sheets
