Operational |
|
Printing method |
Direct Thermal (Without Ribbon) |
|
Printing resolution |
203 DPI (8 dots/mm) |
|
Printing speed (Maximum) |
Max. 152 mm/saniye |
|
Printing length |
Max. 1.778 mm |
|
Printing width |
Max. 108 mm |
|
Sensor |
1 Pcs Label Gap Sensor |
|
1 Pcs Black Mark Sensor |
|
Label |
|
Type |
Continuous, Gap, Fan hold, Black Mark |
|
Width |
25,4 mm ~ 118 mm |
|
Thickness |
0,06 mm ~ 0,254 mm |
|
Roll Inside Diameter |
25,4 mm ~ 38,1 mm |
|
Roll Outside diameter |
127 mm (Maximum) |
|
Ribbon |
|
Type |
Not
Used |
|
Performance |
|
Processor |
32 bit CPU |
|
Memory |
8 MB SDRAM, 8 MB Flash ROM (expandable Max. 4 GB) |
|

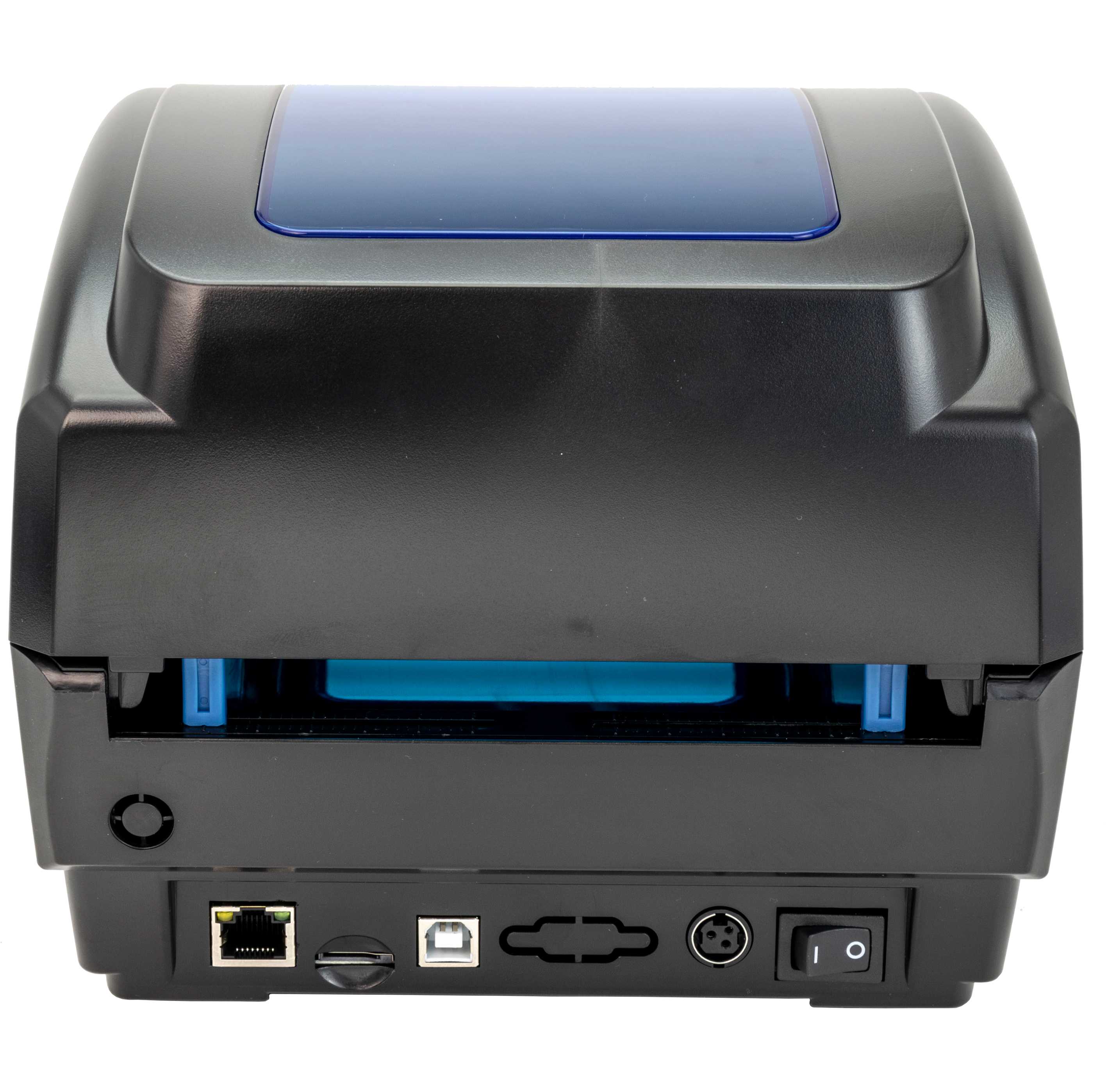

Interface |
USB and Ethernet |
|
Physical |
|
Width |
190 mm |
|
Height |
179 mm |
|
Depth |
171 mm |
|
Weight |
1,6 kg |
|
Material |
ABS Plastic |
|
Electrical |
|
Power Type |
External Power Adaptor (Built-in automatic voltage switching power supply) |
|
Power source (Input) |
AC110~240V,50~60 Hz, 1.8A |
|
Power source (Output) |
DC24V / 2.5A (60W) |
|
Environmental |
|
Operation temperature |
5°C ~ 45°C |
|
Storage temperature |
-40°C ~ 60°C |
|
Operation Humidty |
%25 ~ %85 (Non Condensing) |
|
Storage Humidty |
%10 ~ %90 (Non Condensing) |
|
Software |
|
Drivers |
Windows , Linux, Mac |
|
SDK |
Windows, iOS, Android |
|
Label Design Software |
Bartender UltraLite |
|
Supported Command Set |
TSPL,ZPL, EPL and DPL |
|
Supported graphics formats |
BMP and PCX |
|
Fonts / Graphics/ Symbologies |
|
Internal Fonts |
8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software |
|
1D |
Code 39,Code 93,Code 128UCC,Code 128 Alt Tip A-B-C,Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A,UPC-E,EAN ve UPC Ek 2/5 hane,MSI,MSI PLESSEY,POSTNET,China POST,GS1 DataBar, Code 11 |
|
2D |
PDF417,Maxicode,DataMatrix,QR Code, Aztec |
|
Accessories |
|
Optional Items |
Bluetooth Module, Wifi Module, Peeling Module, External Media Holder |
