Performance |
|
CPU |
1,4 Ghz Processor |
|
Memory |
1 GB DDR3 RAM, 4 GB Flash ROM |
|
Operation System |
Android 4.4.2 (Kit Kat) |
|
Audio |
88 dB (850 Hz~20 KHz) Dual Channel Stereo Sound |
|
Display |
|
Type |
5-point capacitive touch panel |
|
Size |
4,3" (Inch) |
|
Resolution |
480 x 272 Pixel |
|
Barcode Scanner |
|
Supported Barcode Types |
1D and 2D |
|
Barcode Types |
1D |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
|
2D |
PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QRCode |
|
Communication |
|
USB |
USB (2 Pcs) |
|
Ethernet |
10/100 /1000 Mbps Ethernet |
|
GPIO |
Programable GPIO (2 PCS Input and 2 PCS Output) |
|
Wifi |
IEEE 802.11 b/g/n |
|
BT |
Optional: Bluetooth 4.0 LE |
|
RFID |
Optional: SO/IEC 1443 A/B ISO/IEC 15693; MIFARE 1K/4K; MIFARE DESFire; Sony FeliCa |
|
Power |
|
Power consumption |
6W |
|
Input Voltage |
DC9-25V, 2000mA |
|
POE |
Optional: Power Over Ethernet IEEE 802.3 AF |
|
Physical |
|
Ebatlar |
Width |
139,5 mm |
|
Height |
140 mm |
|
Depth |
61 mm |
|
Weight |
403 Gram |
|
Environmental |
|
Working Temperature |
0°C ~ 50°C |
|
Storage Temperature |
-20°C ~ 55°C |
|
Working Humidty |
%5 ~ 90 (Non Condensing) |
|
Storage Humidty |
%5 ~ 95 (Non Condensing) |
|
Certification |
|
Certifica |
FCC, CE, RoHS, IEC/EN 62471 |
|
Accessories |
|
Accessories |

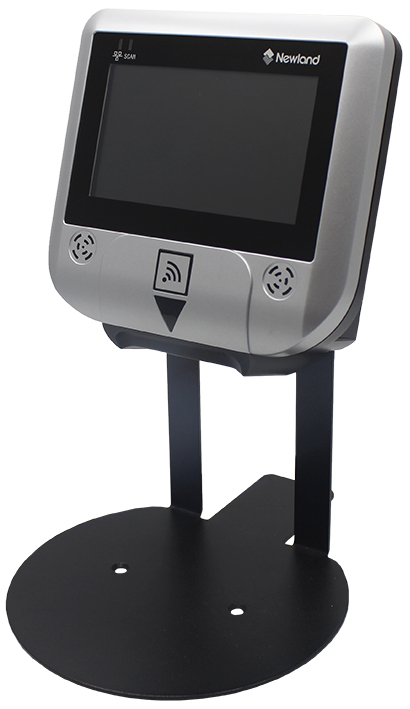

Vesa 75 Mount |
|
Power Adaptors: Output: DC12V, 2A; Input: AC100~240V, 50~60Hz |
