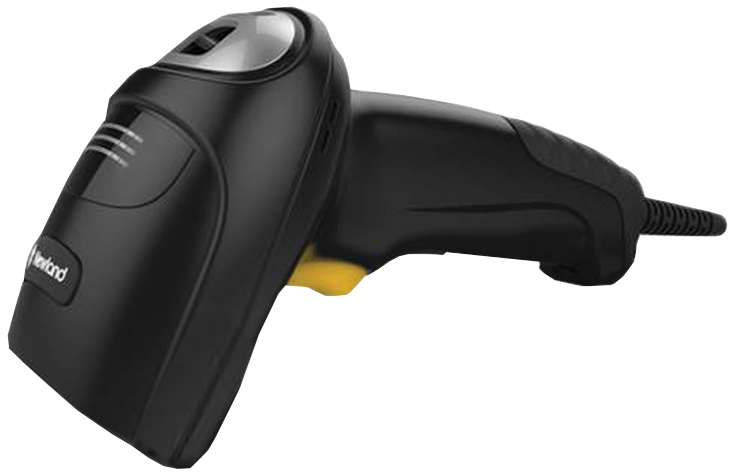

● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● Drop resistance to 1.8 mt
● IP54 Protection Class
● RS-232 and USB Interfaces
| Performance | ||
| Image Sensor | 1280 x 800 Pixel CMOS | |
| Light source | Illumination: White LED | |
| Aiming: 650 nm Laser Diode | ||
| Motion Tolerance | 50 cm/s | |
| Scanning angle | Pitch: ±55°; Roll: ±360°; Skew: ±55° | |
| Indicators | LED, Beep volume and Vibrator | |
| Print Contrast | ≥%20 | |
| Supported Interfaces | RS-232 and USB | |
| Physical | ||
| Width | 77,5 mm | |
| Height | 172,5 mm | |
| Depth | 95,5 mm | |
| Weight | 180 Gram | |
| Electrical | ||
| Operating Voltage | 5VDC (±%5) | |
| Power Consumption | 1308 mW | |
| Current | Standby: 81 mA | |
| Operation:272 mA | ||
| Environmental | ||
| Operation temperature | -20 °C ~ 50 °C | |
| Storage temperature | -40 °C ~ 70 °C | |
| Humidty | %5 ~ %95 (Non Condensing) | |
| ESD | ±8 KV (contact discharge); ±16 KV (air discharge) | |
| Drop | 1.8 meter | |
| Sealing | IP54 | |
| Certifications | ||
| Certifications | FCC Part15 Class B, CE EMC Class B | |
| Scanning Capability | ||
| 1D Linear Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 25, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc. | |
| 2D Codes | PDF417, QR Code, Data Matrix, Aztec, Maxicode etc. | |
| Scanning Distances | ||
| Scanning Distances | 1D | Code 39 (5 Mil): 70 mm ~ 210 mm |
| EAN-13 (13 Mil): 35 mm ~ 280 mm | ||
| 2D | PDF417 (6,67 Mil): 50 mm ~ 160 mm | |
| Datamatrix (10 Mil): 40 mm ~ 170 mm | ||
| QrCode (15 Mil): 30 mm ~ 230 mm | ||
