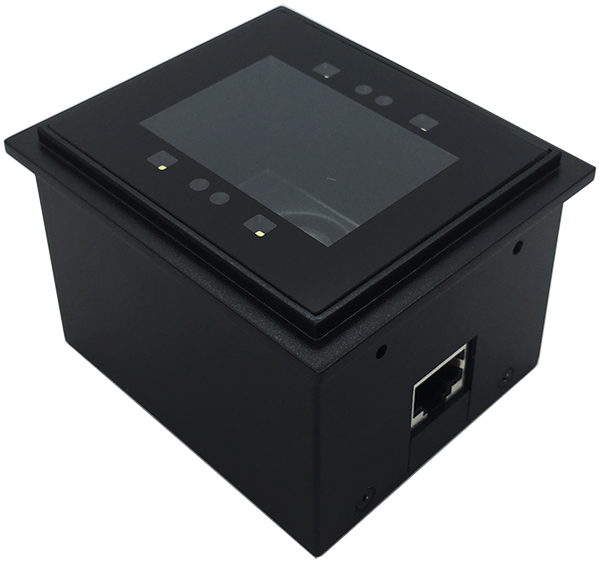

● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 1D: 10 mil resolution
● Reading from LCD Screens
● Easy to install
● RS-232 and USB Interfaces
| Performance | |
| Processor | IOTC 0370 CHIP |
| Image Sensor | 752 x 480 Pixel CMOS |
| Light source | White LED |
| Resolution | 0,254 mm / 10 mil (1D Codes) |
| Scan Mode | Sense mode |
| Indicators | LED and Beep volume |
| Field of View | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° |
| Print Contrast | ≥%30 |
| Supported Interfaces | RS-232 and USB |
| Physical | |
| Length | 78,2 mm |
| Width | 67,2 mm |
| Height | 52,3 mm |
| Weight | 300 Gram |
| Electrical | |
| Power Adaptor (Optional) | Input: AC100~240V, 50~60Hz |
| Output: 5VDC, 1,5A | |
| Power Consumption | Max. 1,75W |
| Environmental | |
| Operation temperature | -10 °C ~ 50 °C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Ambient Light | 0 ~ 100,000 LUX |
| Certifications | |
| Certifications | FCC Part15 Class B, CE EMC Class B |
| Scanning Capability | |
| 1D Linear Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey |
| 2D Codes | PDF417, QR Code, Data Matrix |
