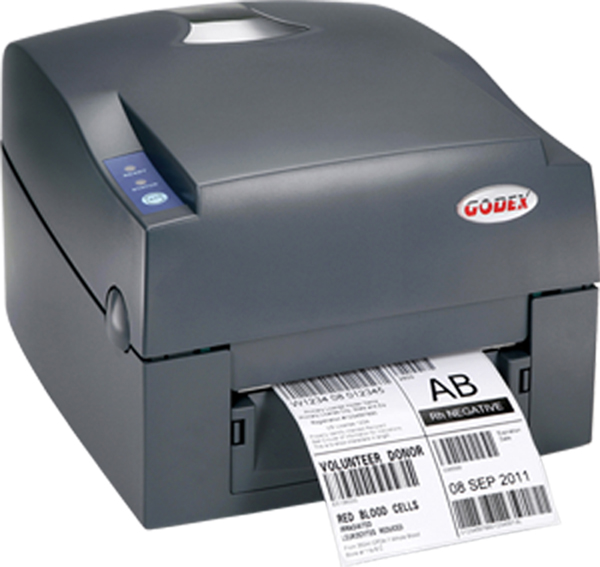

● Direct Thermal And Thermal
Printing
● 300 DPI Printing Resolution
● Max. 105,7 mm Printing Width
● Max. 762 mm Printing Length
● Max. 102 mm / Sec Printing Speed
● 16 MB DRAM and 8 MB Flash ROM
● EZPL, GEPL and GZPL Support
● RS232C, USB 2.0 and Ethernet Port
| Operational | |
| Printing method | Direct thermal and thermal transfer |
| Printing resolution | 300 DPI (12 dots/mm) |
| Printing speed (Maximum) | 102 mm/saniye |
| Printing length | 4 ~ 1727 mm |
| Printing width | 25 mm ~ 105,7 mm |
| Memory | 16 MB DRAM, 8 MB Flash ROM (4 MB User Storage) |
| Proccessor | 32 bit RISC micro proccessor |
| Operation interface | Two bi-color status-LEDs: Ready, Status |
| Control Key: FEED | |
| Communication interface | Standart: RS232C, USB 2.0 and Ethernet |
| Optional: LPT and USB (As a seperately model) | |
| Sensor | Reflective (Movable) and transmissive (Fixed And Center) |
| Print directions | 0, 90, 180, 270 degree |
| Agency listing | CE(EMC), FCC Class A, CB, cUL, CCC |
| Physical | |
| Width | 285 mm |
| Height | 171 mm |
| Length (Depth) | 226 mm |
| Weight | 2,72 kg |
| Material | ABS Plastic |
| Electrical | |
| Power source (Input) | 100V~240VAC, 50~60Hz |
| Environmental | |
| Operation temperature | 5 °C ~ 40 °C |
| Storage temperature | -20 °C ~ 50 °C |
| Operation Humidty | %30 ~ %85 (Non Condensing) |
| Storage Humidty | %10 ~ %90 (Non Condensing) |
| Label | |
| Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label |
| Width | 25,4 mm ~ 118 mm |
| Thickness | 0.06 ~ 0.25 mm |
| Roll Inside diameter | 25,4, 38,1 or 76,2 mm |
| Roll Outside diameter | 127 mm (Maximum) |
| Ribbon | |
| Type | Wax, Wax/Resin and Resin |
| Ink side | Outside |
| Width | 30 mm ~ 110 mm |
| Length | 300 Meter (Maximum) |
| Roll Inside diameter | 25,4 mm |
| Roll Outside diameter | 68 mm (Maximum) |
| Software | |
| Windows drivers | Windows 2000, XP, VISTA, 7, Windows Server 2003 & 2008 |
| Linux drivers | Ubuntu 9.04 & 9.10 |
| Label Design programs | Qlabel IV (Free) (for EZPL only) |
| Supported barcode printing language | EZPL, GEPL ve GZPL |
| Supported graphics formats | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Resident Fonts |
Bitmap
fonts 6, 8, 10, 12, 14, 18, 24,
30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap
fonts 90°, 180°, 270° rotatable,
single characters 90°, 180°,
270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Code Pages |
CODEPAGE
437, 850, 851, 852, 855, 857,
860, 861, 862, 863, 865, 866,
869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode (UTF8, UTF16) |
| Supported Barcode Types | |
| 1D | Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 Databar |
| 2D | PDF417, Datamatrix code, MaxiCode, QR code and Micro QR Code |
| Accessories | |
| Optional Items | Cutter Module |
| Label Dispencer | |
| External label roll holder for 10” (250 mm) O.D. label rolls | |
| External label rewinder | |
