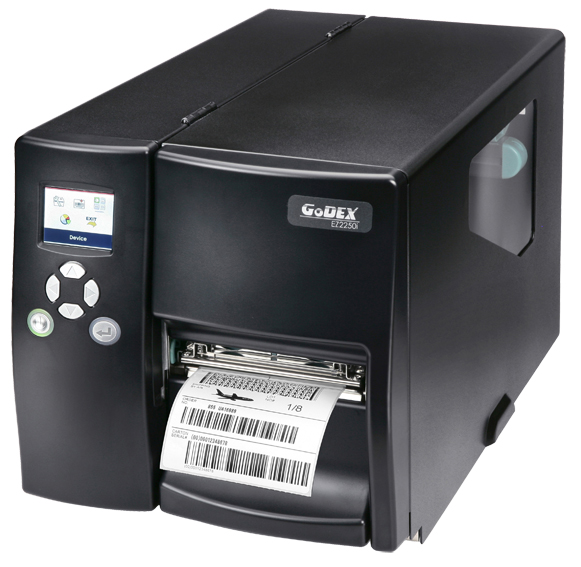

● Direct Thermal And Thermal Printing
● 300 DPI Printing Resolution
● Max. 104 mm Printing Width
● Max. 1143 mm Printing Length
● Max. 127 mm / Sec Printing Speed
● 16 MB DRAM and 8 MB Flash ROM
● EZPL, GEPL and GZPL Support
● RS-232C, USB and Ethernet Port
● With Backligth color Display
● For heavy duty labeling demands
| Operational | |
| Printing method | Direct thermal and thermal transfer |
| Printing resolution | 300 DPI (12 dots/mm) |
| Printing speed (Maximum) | 127 mm/sec |
| Printing length | 4 ~ 1143 mm |
| Printing width | 25 mm ~ 104 mm |
| Memory | 16 MB DRAM, 8 MB Flash ROM (4 MB User Storage) |
| Proccessor | 32 bit RISC micro proccessor |
| Control Panel | Color TFT LCD With navigation button |
| Calibration Button | |
| Control Key: FEED | |
| Power On / Off Button | |
| Communication interface | USB 2.0 |
| RS-232 (DB-9) | |
| Ethernet 10/100 Mbps | |
| USB Host | |
| Real Time Clock | Standart |
| Sensor | Reflective sensor (Adjustable) |
| Transmissive (See-through) Left Aligned | |
| Agency Approval | CE (EMC) ,FCC class A, CB, cUL and CCC |
| Physical | |
| Width | 274 mm |
| Height | 291 mm |
| Length (Depth) | 512 mm |
| Weight | 15 kg |
| Material | Metal |
| Electrical | |
| Power source (Input) | Auto Swicthing 100V ~ 240 V AC, 50 ~ 60 Hz |
| Environmental | |
| Operation temperature | 5 °C ~ 40 °C |
| Storage temperature | -20 °C ~ 50 °C |
| Operation Humidty | %30 ~ %85 (Non Condensing) |
| Storage Humidty | %10 ~ %90 (Non Condensing) |
| Label | |
| Type | Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming |
| Width | 25,4 mm ~ 118 mm |
| Thickness | 0.06 ~ 0.25 mm |
| Roll Inside diameter | 38,1 ~ 76,2 mm |
| Roll Outside diameter | 152,4 mm ~ 203,2 mm |
| Ribbon | |
| Type | Wax, Wax/Resin and Resin |
| Ink side | Inside / Outside |
| Width | 30 mm ~ 110 mm |
| Length | 450 Meter (Max.) |
| Roll Inside diameter | 25,4 mm |
| Roll Outside diameter | 76 mm (Max.) |
| Software | |
| Windows drivers | Windows XP / Vista / 7 / 8 / 8.1, Windows Server 2003 / 2008 / 2012 |
| Linux drivers | Ubuntu 9.04 & 9.10 |
| MAC drivers | Yes |
| DLL | Win Ce.Net, Win Mobile, Windows 2000 / XP / Vista / 7 / 8 /8,1 and Android |
| Label Design programs | Qlabel IV (Free) (for EZPL only) |
| Supported barcode printing language | EZPL, GEPL and GZPL (Auto Switch) |
| Supported graphics formats | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Resident Fonts |
Bitmap
fonts 6, 8, 10, 12, 14, 18, 24,
30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts |
Bitmap
fonts 90°, 180°, 270° rotatable,
single characters 90°, 180°,
270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Code Pages |
CODEPAGE
437, 850, 851, 852, 855, 857,
860, 861, 862, 863, 865, 866,
869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode (UTF8, UTF16) |
| Supported Barcode Types | |
| 1D | Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 Databar |
| 2D | PDF417, Datamatrix code, MaxiCode, QR code and Micro QR Code |
| Accessories | |
| Optional Items | Cutter Module |
| Label Dispencer + Internal Rewinder | |
| Parallel port (Centronics 36-pin) | |
| Applicator Interface (1 input, 3 outputs, power 500mA @ 5V) | |
| External label rewinder | |
