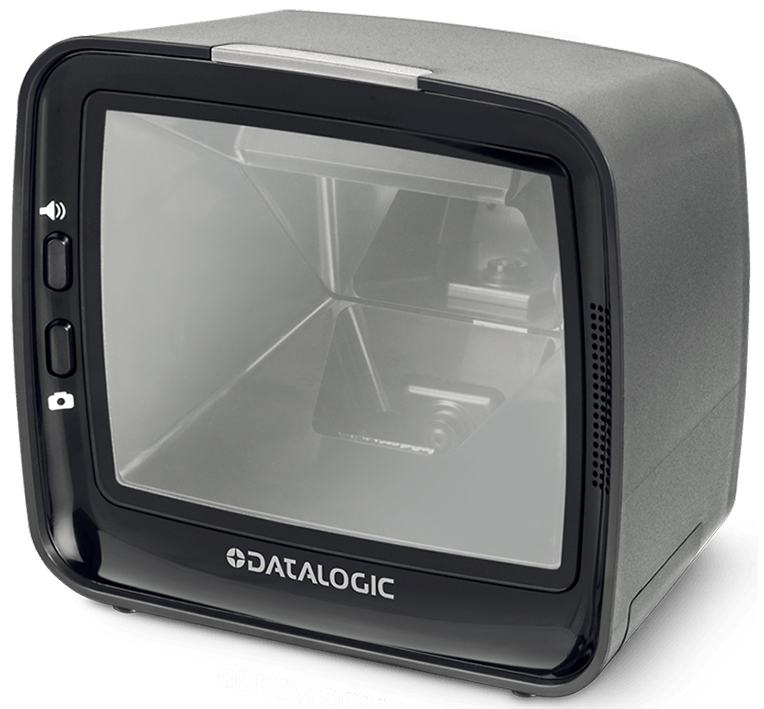

● 1D/2D Imager barcode Scanner
● 1280 x 8000 Pixel Image Capture
● Aggressive scanning performance
● Advanced Data Formatting
● Read barcodes from mobile phone and PC screen
● IP52 Standard
● Schockproof to 1,2 meters
| Scanning Capability | |
| 1D Linear Barcodes | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Barcodes | Aztec code, Data Matrix, QrCode |
| Stacked Codes | GS1 DataBar composites; GS1 DataBar expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDf417; PDf417 |
| Digital Watermarks | Optional support for Digimarc® Barcodes / GS1 DW Code |
| Electrical | |
| AC Power Requirements | AC Input: 100-240 VAC, 50-60 Hz |
| DC Input: 5-12V | |
| Power consumption |
Maximum: 2.25W @ 5V; 3.3W @ 12V Typical (RMS): 1.6W @ 5V; 2.1W @ 12V Sleep Mode (RMS): 0.95W @ 5V; 1.25W @ 12V |
| Environmental | |
| Light Levels | 0-86.100 Lux |
| Operation temperature | 10°C ~ 40°C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| ESD Protection (Air Discharge) | 25 kV |
| Interfaces | |
| Interfaces | OEM (IBM) USB; RS-232; USB Keyboard, USB Com, USB TEC |
| Auxiliary Ports | Powered Type A USB (USB Com requires power supply or 12V Host power) |

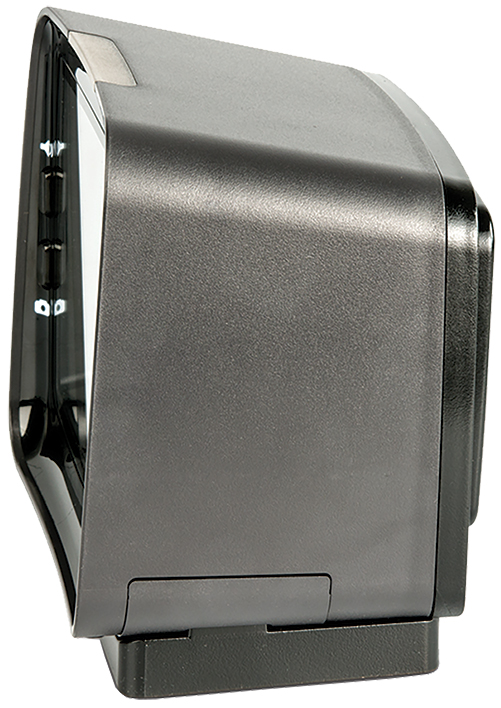

| Physical | |
| Height | 137 mm |
| Width | 152 mm |
| Depth | 94 mm |
| Weight | 600 gr |
| Reading Performance | |
| Graphic format | BMP, JPEG |
| Imager Sensor | 1280 x 800 (1 MP) |
| Light Source | Illumination: Multiple diffused LeDs, orientation and wavelength optimized for eye comfort |
| Print Contrast (Max) | %25 |
| Read Height | 14 cm (5,5 inch) |
| Read Rate | 39 Million pixels per second |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75° |
| Indicators (LED) | Audio beeper with adjustable tone and volume, Good Read LED, Good Transmission |
| Resolution (Max.) | 0,127 mm (5 Mil) |
| Scanning Distances | |
| 1D Codes |
5 mils: 0 mm to 64 mm 10 mils: 0 mm to 152 mm 13 mils: 0 to 203 mm |
| 2D Codes |
6,6 mils (PDF): 0 mm ~ 51 mm 10 mils (PDF): 0 mm ~ 127 mm 10 mils (Datamatrix): 0 mm ~ 64 mm 20 mils (Datamatrix): 0 mm ~ 180 mm |
| Safety and Regulatory | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications |
| Environmental Compliance | Complies to China RoHS; Complies to EU RoHS |
| LED Classification | EN62471 and IEC62471 Lamp Illumination Exempt Group |
| Tools | |
| Scanalyzer | Magellan Scanalyzer configuration software is available for download at www.datalogic.com. |
| OPS/JAVAPOS | JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
