● Windows CE.NET 5.0 (Core Version) operation systems
● Marvell CPU PXA270 312 Mhz proccessor
● 64 MB RAM, 64 MB Flash ROM +2GB Flash Storage

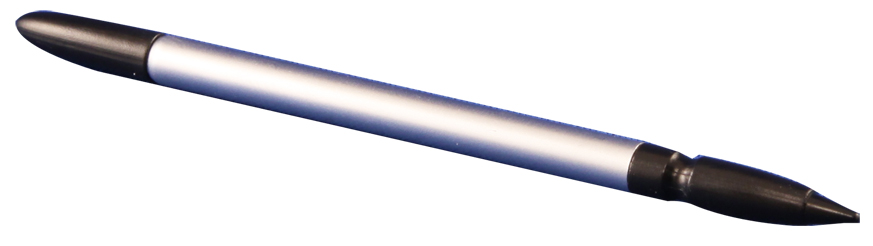

● With LED Backlight TFT Color LCD, 240x320 with touch screen
● Ergonomic, compact, robust and lightweigt
● 1.2 mt (4 ft) drop resistance
● IP54 protection class
● Free Data Collection Software
| System | |
| CPU | Marvell PXA-270 (312 Mhz) 32 Bit RISC CPU |
| RAM | 64 MB SDRAM |
| Flash ROM | 64 MB Flash ROM |
| Operation Systems | Microsoft Windows CE .NET 5.0 Professional |
| Display | |
| Type | 256K Color QVGA, With Backlight Trans-missive LCD |
| Size | 2,4" |
| Resolution | 240 x 320 pixel |
| Physical | |
| Length | 136 mm |
| Width | 51 mm |
| Height | 26 mm |
| Weight | 170 gr (batteries included) |
| Keys | 23 |
| Alert | LED and Speaker |
| LED | Green and Red |
| Expansion Slot | Micro SD Card (for disk memory) |
| Drop test | 1.2 meters to concrete |
| Sealed standard | IP54 |
| EMC | CE, CB, FCC, NCC, SRMC, CCC |
| Communication | |

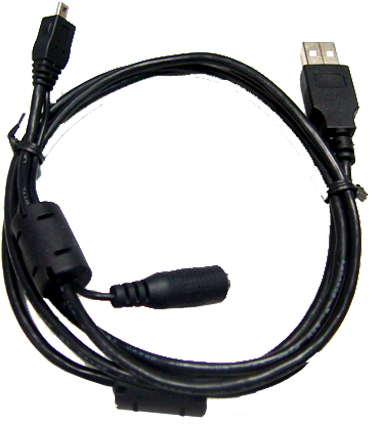

| Wired communication | RS-232C or USB |
| Wireless communication | Optional: Bluetooth and Wifi |
| Scanner | |
| Scanner system | Laser scan engine |
| Light Source | 650 nm visible laser diode (VLD) |
| Resolution | 0.125 mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%) |
| Scanning rate | 100 scans per second |
| Depth of field | 40 ~ 670 mm (UPC/EAN 100%, PCS=90%) |
| Ambient light | Max. 4,500 Lux (fluorescence) |
| Supported barcode | Code 39, Code 93, Code 11, Code 128, EAN-128, Codabar, UPC A/E, EAN 8/13, UK Plessey, MSI Plessey, Standart 2 Of 5, Interleaved 2 Of 5, Telepen, Matrix 2 Of 5, China Post Code |
| Power | |

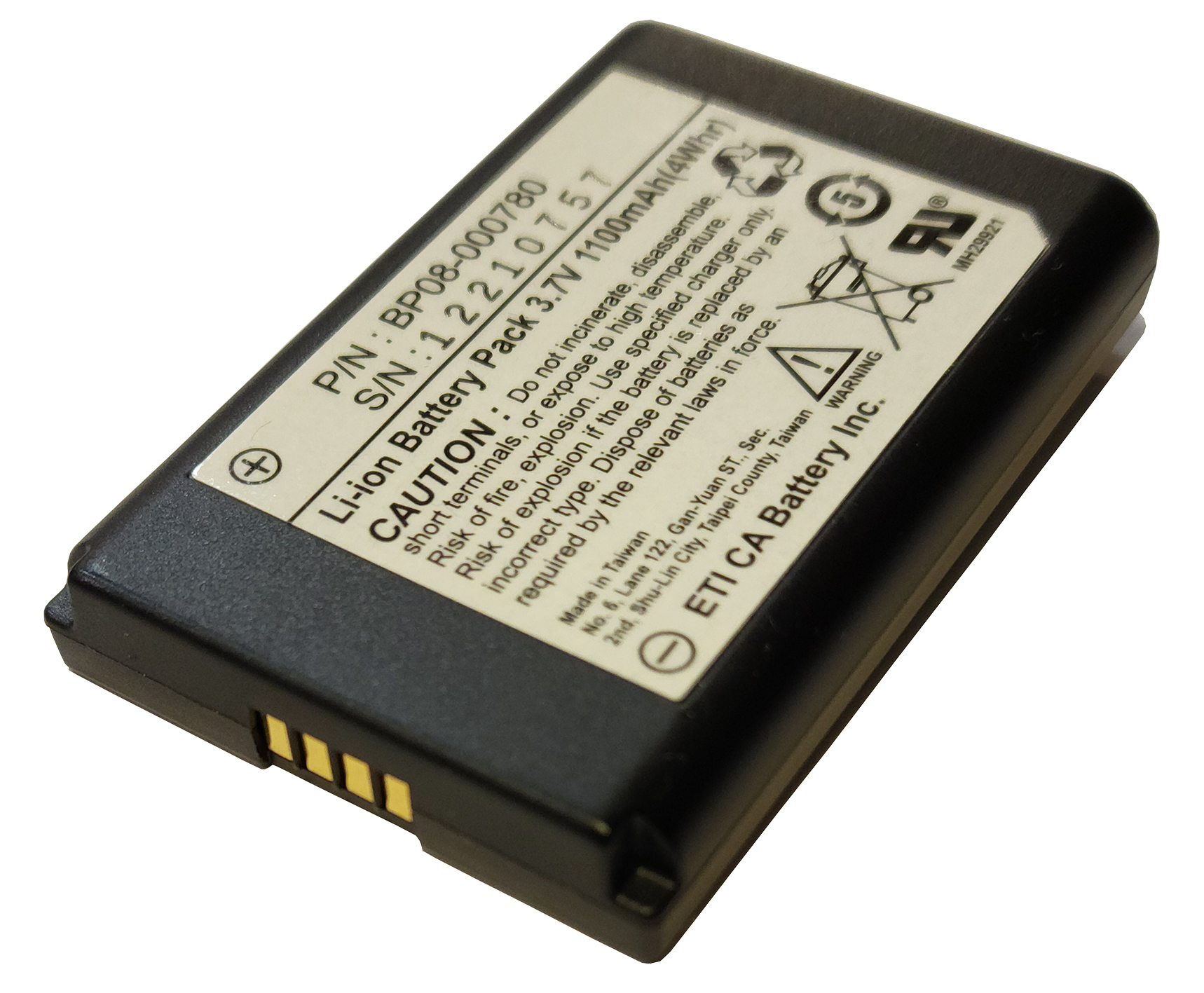

| Main Battery | Standart: 3.7V DC, 1100 mAH Rechargeable Li-ion Battery |
| Optional: 3.7V DC, 2000 mAH Rechargeable Li-ion Battery | |
| Backup Battery | 2.4V DC, 15 mAH Ni-MH Battery |
| Battery Life | Max. 8 hours (LCD back-light working on 70%, without WLAN or without Bluetooth, cable and keypad back-light, with system sound and alert, scanning every 10s) |

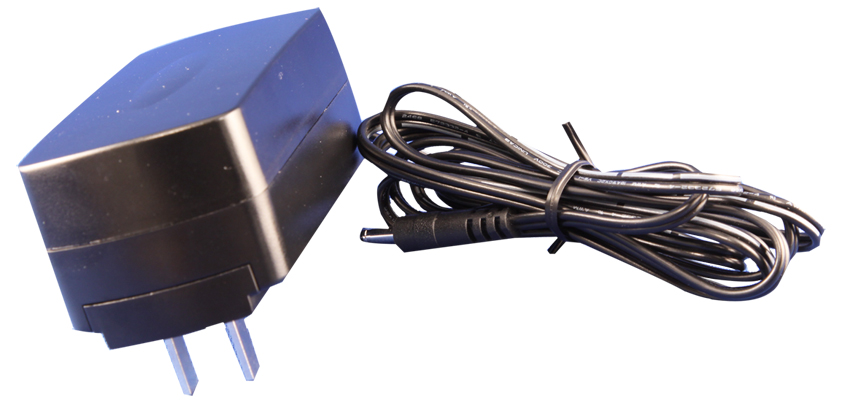

| Power supply | 100~240Vac, 50/60Hz Input, 5Vdc/3Adc Wall Mount |
| Environmental | |
| Operation temperature | -10 °C ~ 40 °C |
| Storage temperature | -25 °C ~ 60 °C |
| Humidty | Max. %95 (Non Condensing) |
| Software | |
| Software | WinCE 5.0 Core Version |
| Backup manager, Scanner Setting utility | |
| SDK and BSP development software | |
| Applications | - |
| Accessories | |

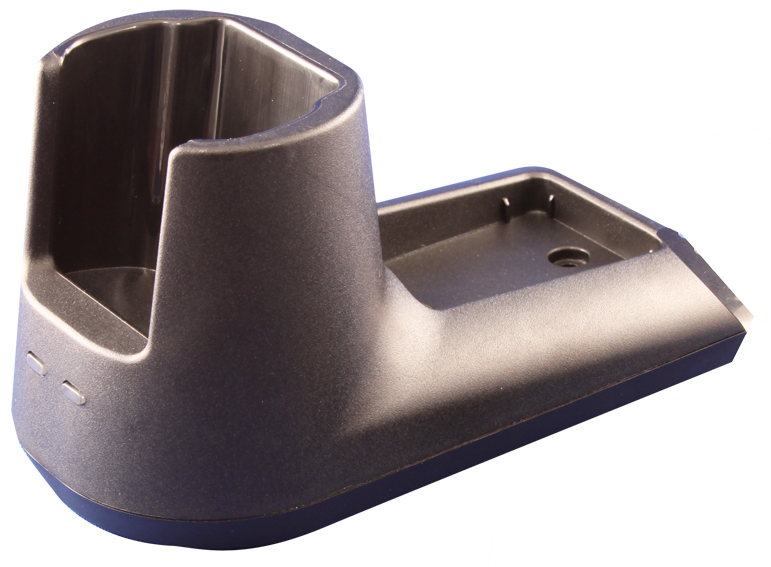

| Accessories | Charging & Communication Cradle |
| Charging & Communication Cable (RS-232C) | |
| Turkish | ||
| Data Sheets |
 |
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10) |
|
| English | ||
| Data Sheets |
|
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10) |
|
| S.D.K | Software Development Kit |
|
| PowerToys | Remote Managment Software |
|
