● Direct Thermal And Thermal Printing
● 2o3 DPI Printing Resolution
● Max. 108 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 254 mm / Sec Printing Speed
● 128 MB DRAM and 128 MB Flash ROM
● PPLA, PPLB and PPLZ Barcode Print Language Support
● Ethernet, RS-232C, USB Client and Dual USB Host Port
● Windows and Linux Driver Support
| Operational | |
| Printing method | Direct Thermal and Thermal Transfer |
| Printing resolution | 203 DPI (8 dots/mm) |
| Printing speed (Maximum) | 203 mm/saniye |
| Printing length | Max. 2540 mm |
| Printing width | Max. 108 mm |
| Memory | 128 MB DRAM, 128 MB Flash ROM |
| Proccessor | 32 bit RISC micro proccessor |
| Operation interface | 3 Button (Feed, Pause and Cancel) |
| 3 LED (Ready, Media and Ribon) | |
| With Backligth Color Display (16x2 Line) | |

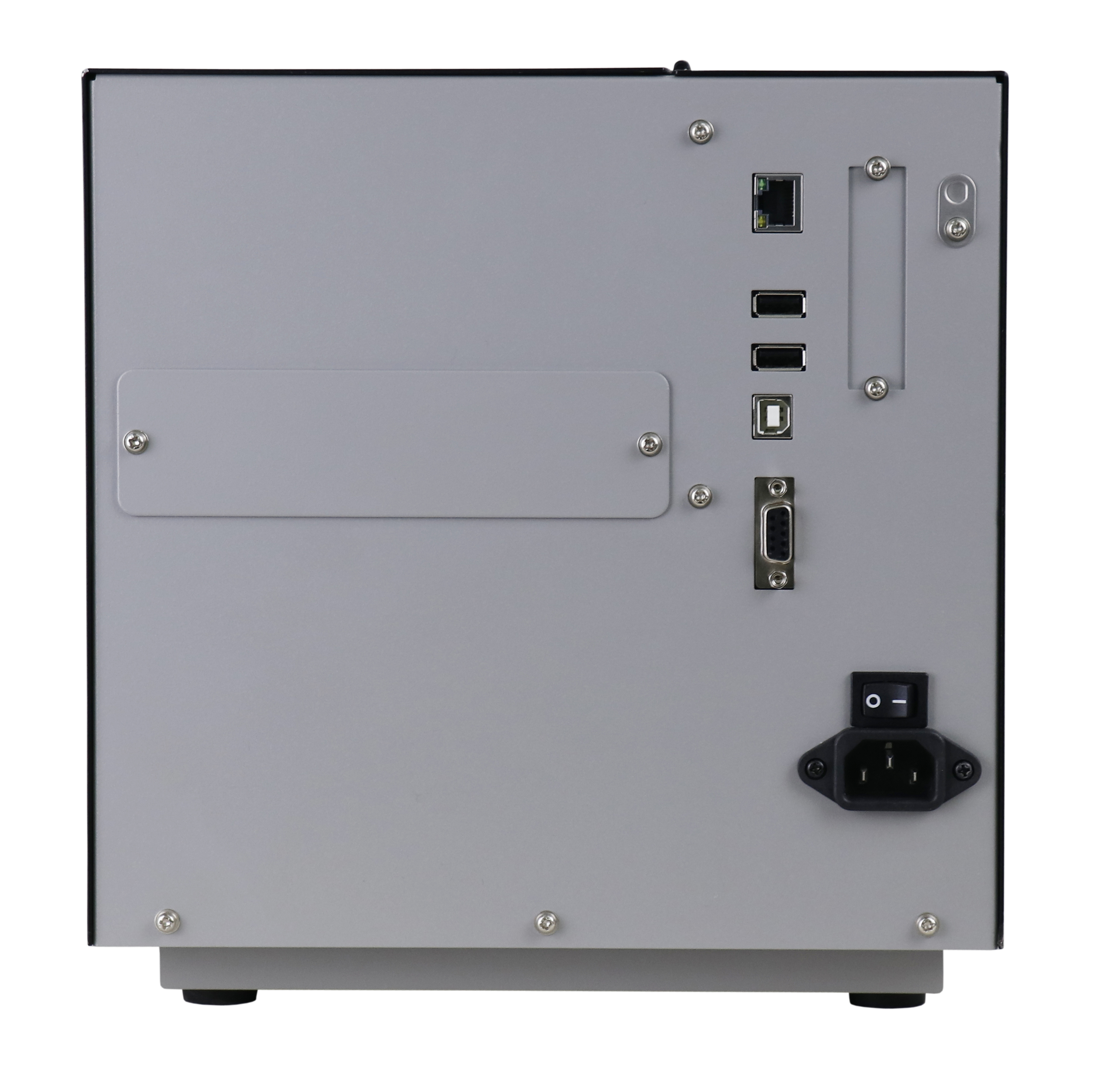

| Communication interface | RS-232C, Ethernet, USB Client, USB Host (2 Pcs) |
| Real Time Clock | Standart |
| Sensor | Reflective and transmissive media sensor (Movable) |
| Head open switch sensor | |
| Ribbon end sensor | |
| Agency listing | CE, CB, FCC, cULus, BSMI, RoHS |
| Physical | |
| Width | 250 mm |
| Height | 260 mm |
| Length (Depth) | 405 mm |
| Weight | 13 kg |
| Material | Metal |
| Electrical | |
| Power input type | Power Cable |
| Power source (Input) | 100 ~ 240V, 5A, 50/60 Hz |
| Environmental | |
| Temperature | Operation: 4 °C ~ 40 °C |
| Storage : -20 °C ~ 50 °C | |
| Humidty | %5 ~ %90 (Non Condensing) |
| Label | |
| Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper |
| Width | 25,4 mm ~ 114 mm |
| Thickness | 0.0635 ~ 0.254 mm |
| Roll Inside diameter | 38 mm ~ 76 mm |
| Roll Outside diameter | Max. 177,8 mm (With 38 mm ID Core) |
| Max. 210 mm (With 76 mm ID Core) | |
| Ribbon | |
| Type | Wax, Wax/Resin and Resin |
| Ink side | Inside / Outside |
| Width | 25,4 mm ~ 112 mm |
| Length | 450 Meter (Max.) |
| Roll Inside diameter | 25,4 mm |
| Roll Outside diameter | 81,3 mm (Max.) |
| Software | |
| Windows drivers | Win XP / Vista / 7 / 8 / 8.1 / Win 10, Windows Server 2003 / 2008 / 2012 (32 Bit & 64 Bit) |
| Label Design programs | Bartender UltraLite (Free) |
| Utility programs | Printer Utility and Font Utility |
| Supported barcode printing language | PPLA, PPLB and PPLZ |
| Supported graphics formats | PPLA: PPCX, BMP, IMG, HEX ve GDI formats |
| PPLB: PCX, BMP, Binary raster and GDI formats | |
| PPLZ:GRF, Hex ve GDI Formats | |
| Supported Barcode Types | |
| 1D |
PPLA: Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum/with human readable check digit/with modulo 10 checksum & shipping bearer bars), GS1 Data bar (RSS) PPLB: Code 39, UPC-A, UPC-E, Matrix 2 of 5, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code), Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE 2/5 digit add-on, GS1, Data bar (RSS) |
| 2D | MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes |
| Optional Accessories | |

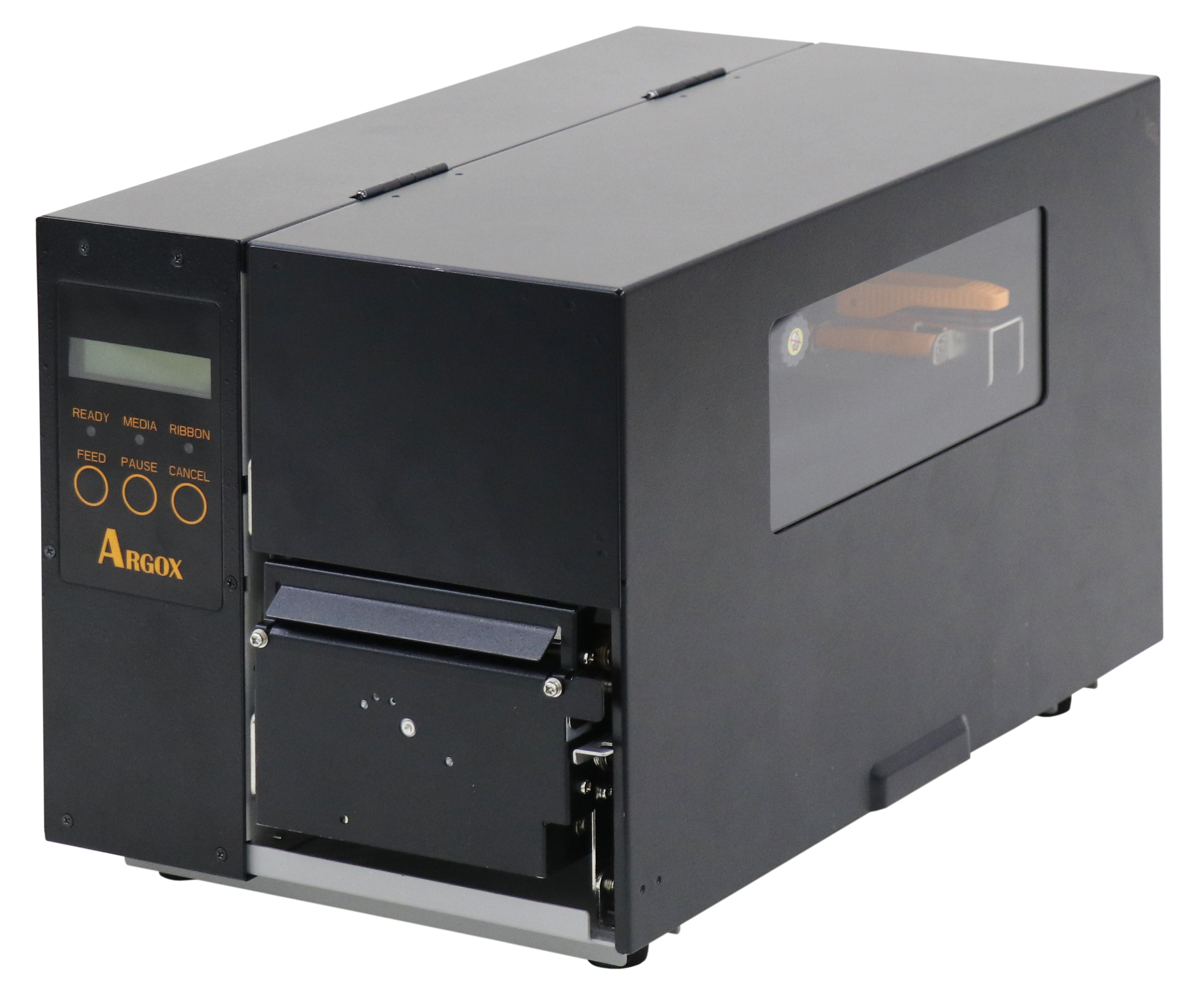

| Cutter, Peeler, GPIO, Internal Rewinder, External Rewinder and External Media Stacker | |
