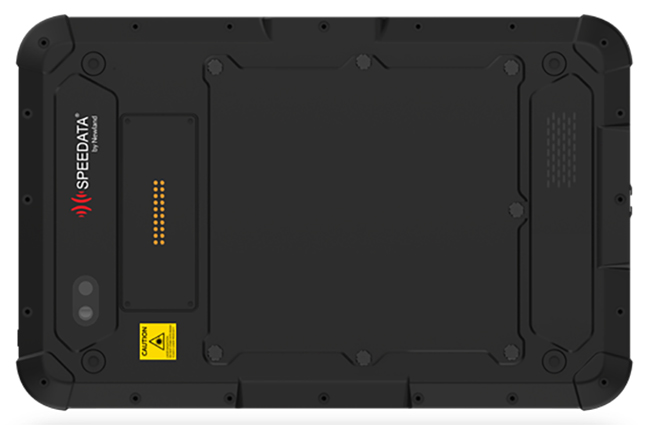

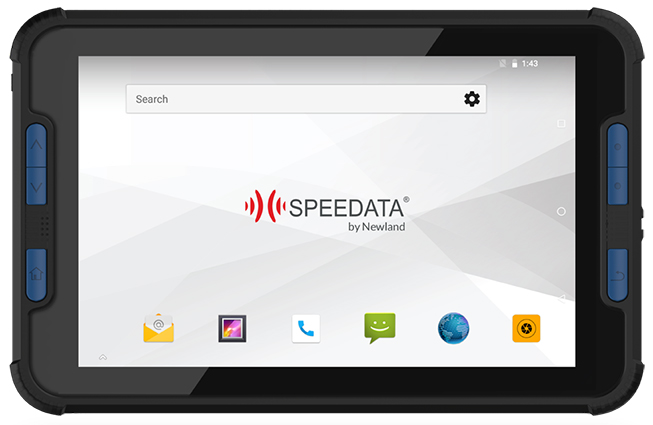

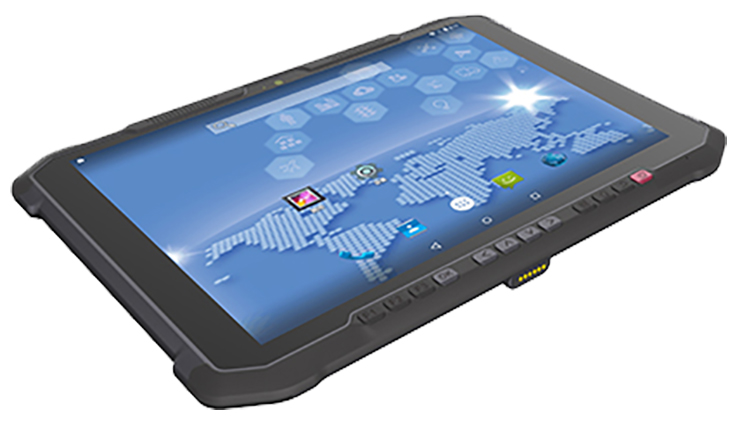

Speedata SD80
(Libra)
Industrial Android Tablet



● Android 8.1 (Oreo) Operation System
● Octa Core 2.0 Ghz Proccessor
● 4 GB RAM and 64 GB ROM
● 8 Inch Color Touch Screen
● Wifi, Bluetooth, 4G, NFC Communication
● 2D Imager Barcode Scanner

 Performance
 CPU Octa Core 2.0 Ghz Proccesssor
 OS Android 8.1 (Oreo)
 Memory 4 GB RAM and 64 GB ROM
 Expansions MicroSD: Max. 128 GB
 Camera Rear: 13 Megapixel (Auto Focus With LED Flash)
Front: 5 Megapixel
 Audio Front Dual Stereo Speakers, Volume: 90db (±3db) (Test Distance 10 cm)
 Notification Sound, Vibration and LED Prompt
 Sensors Standard: Geomagnetism, , acceleration light perception distance
Optional: berometer, gyroscope
 Keypad 6 Physical Buttons + Power Button
 Display
 Type IPS Highlight
 Size 8" (Inch)
 Resolution 1280 x 800 Pixel (WXGA)
 Touch Screen 5-point capacitive touch screen
 Interface
 Interface TYPE-C
2 Micro SIM card slots
1 microSD card slot
3.5mm earphone jack
20 Pogo Pins contact
 Communication
 Wifi 802.11 a/b/g/n (2.4 Ghz and 5 Ghz)
 Bluetooth Bluetooth 4.1 BLE
 GPRS FDD-LTE B1/B3/B5/B7/B8
 WWAN TDD-LTE B38/B39/ B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA 1 x/CDMA2000 BC0/BC1
 NFC Support ISO18000-6C protocol, tag reading speed>200/s, reading distance>5M
 GPS GPS + BD + GLONASS
 Battery
 Type 9,000 mAh
 Charging PE fast charging, support charger
 Battery Life Use: 5 ~ 7 Hours (Depending on the Number of Programs Used)
Physical
 Dimensions Widht: 150 mm
Height: 234 mm
Thicness: 19.6 mm
 Weight 700 Gram
Environmental
 Working Temperature -20°C ~ 55°C
 Storage Temperature -30°C ~ 70°C
 Working Humidty 5% ~ 95% (Non Condensing)
 ESD ±15 KV (Air Discharge), ±8 KV (Contact Discharge)
 Drop 1 meter
 IP Class IP65
 Data Captures
 Barcode Types AZTEC, CODABAR, CODE11, CODE128, EAN 128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CAN POST, AUSPOST, IATA25, CODABLOCK, JAPOST, PLANET, DUTCHPOST, MSI, TLC39, TRIOPTIC, CODE32, STRT25
