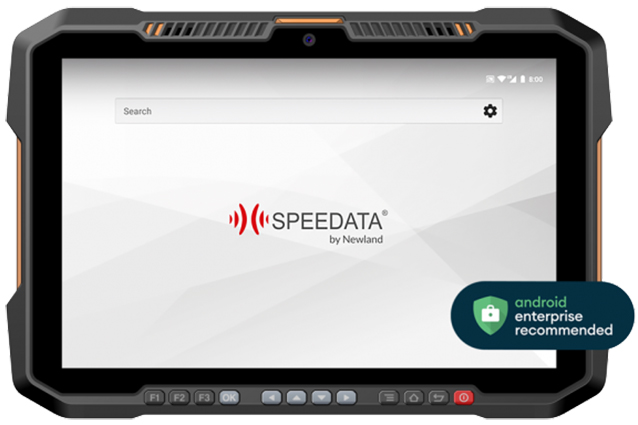

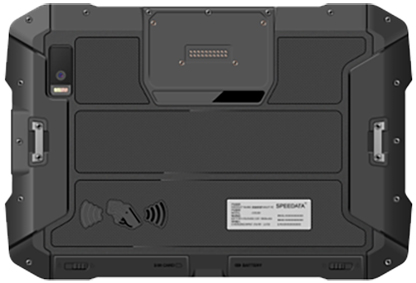

Speedata SD100Plus
(Orion III)
Industrial Android Tablet



● Android 11 (GMS+AER) Operation System
● Octa Core 2.2 Ghz Proccessor
● 4 GB RAM and 64 GB ROM
● 10.1 Inch Color Touch Screen
● Wifi, Bluetooth, 5G, NFC Communication
● 2D Imager Barcode Scanner

 Performance
 CPU Octa Core 2.2 Ghz Proccesssor
 OS Android 11 (GMS+AER)
(GMS=Google Mobile Service)
(AER=Android Enterprise Recommended)
 Memory 4 GB RAM and 64 GB ROM
 Expansions MicroSD: Max. 128 GB
 Camera Rear: 13 Megapixel (Auto Focus With LED Flash)
Front: 5 Megapixel
 Audio Front Dual Stereo Speakers, Volume: 90db (±3db) (Test Distance 10 cm)
 Notification Sound, Vibration and LED Prompt
 Sensors Standard: Geomagnetism, , acceleration light perception distance
Optional: berometer, gyroscope
 Keypad 12 Physical Buttons
 PSAM Card (Smart Encryption Card) Supporting.
 Display
 Type IPS highlight)
 Size 10.1" (Inch)
 Resolution 1200 x 1920 Pixel (WXUGA)
 Touch Screen 5-point capacitive touch screen
 Interface
 USB TYPE-C
 External Interface Pogo Pin (USB, Serial, IIC and Charging)
3.5mm headphone jack
 Communication
 Wifi 802.11 a/b/g/n (2.4 Ghz and 5 Ghz)
 Bluetooth Bluetooth 5.1 BLE
 GPRS FDD-LTE B1/B3/B5/B8/B28A
TDD-LTE B34/B38/B39/B40/B41
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA 1x/CDMA2000 BC0
NR N1/N3/N28A/N41/N77/N78/N79
FDD-LTE: B2/4/5/7/12/13/17/28b
WCDMA: B2/4/5
 NFC ISO14443A/B , ISO15693 , NFC Reading distance: 0~5 cm
 GPS GPS + BD + GLONASS
 Battery
 Type 9,000 mAh
 Charging Fast charging, full charging time<4 hours
 Battery Life Typical working time not less than 10 hours
Physical
 Dimensions Widht: 254 mm
Height: 176 mm
Thicness: 17,4 mm
 Weight 800 Gram
Environmental
 Working Temperature -20 °C ~ 60 °C
 Storage Temperature -30 °C ~ 80 °C
 Working Humidty 5% ~ 95% (Non Condensing)
 Data Captures
 Barcode Types 1D All major 1D symbologies
2D All major 2D symbologies
 Certifications
 Industrial Protection IP65
 Drop Test 6 sides can withstand the impact of 1 meter drop to concrete
 Certificate CCC, CE
