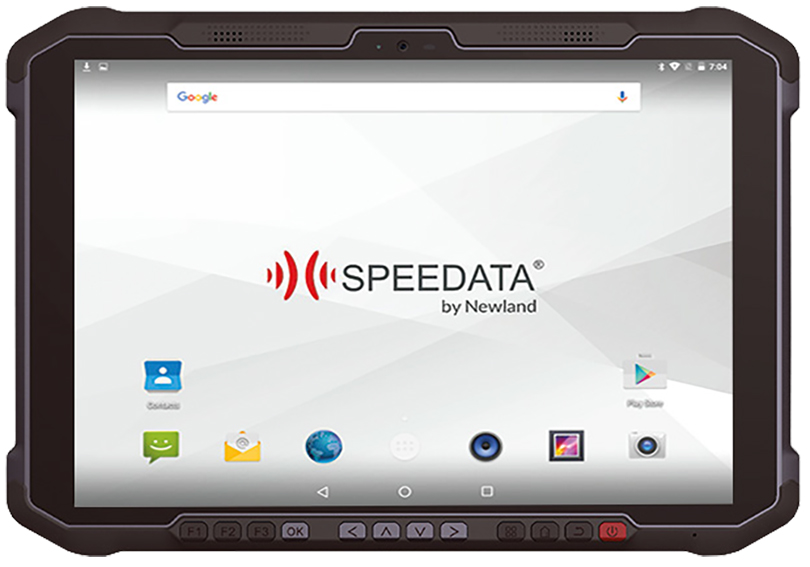

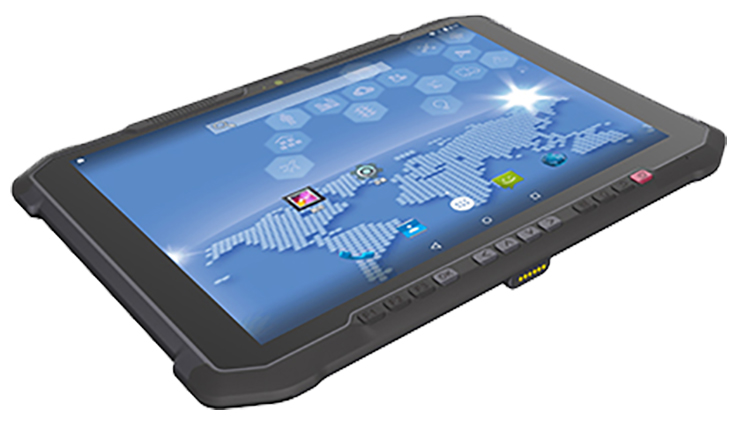

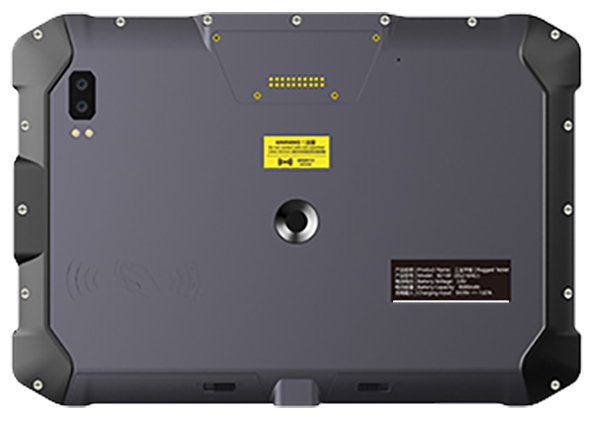

Speedata SD100
(Orion)
Industrial Android Tablet



● Android 8.1 (Oreo) Operation System
● Octa Core 2.0 Ghz Proccessor
● 4 GB RAM and 64 GB ROM
● 10 Inch Color Touch Screen
● Wifi, Bluetooth, 4G, NFC Communication
● 2D Imager Barcode Scanner

 Performance
 CPU Octa Core 2.0 Ghz Proccesssor
 OS Android 8.1 (Oreo)
 Memory 4 GB RAM and 64 GB ROM
 Expansions MicroSD: Max. 128 GB
 Camera Rear: 13 Megapixel (Auto Focus With LED Flash)
Front: 5 Megapixel
 Audio Front Dual Stereo Speakers, Volume: 90db (±3db) (Test Distance 10 cm)
 Notification Sound, Vibration and LED Prompt
 Sensors Standard: Geomagnetism, , acceleration light perception distance
Optional: berometer, gyroscope
 Keypad 12 Physical Buttons
 PSAM Card (Smart Encryption Card) Supporting.
 Display
 Type IPS highlight)
 Size 10" (Inch)
 Resolution 1200 x 1920 Pixel (WXUGA)
 Touch Screen 5-point capacitive touch screen
 Interface
 USB TYPE-C
 External Interface Pogo Pin (USB, Serial, IIC and Charging)
3.5mm headphone jack
 Communication
 Wifi 802.11 a/b/g/n (2.4 Ghz and 5 Ghz)
 Bluetooth Bluetooth 4.1 BLE
 GPRS FDD-LTE B1/B3/B5/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B5
GSM B3/B5/B8
CDMA1x/CDMA2000 BC0
4G BANDS America:
FDD-LTE: B2/4/5/7/12/13/17/28b
WCDMA: B2/4/5
 NFC Support ISO18000-6C protocol, tag reading speed>200/s, reading distance>5M
 GPS GPS + BD + GLONASS
 Battery
 Type 9,000 mAh
 Charging PE fast charging, support charger
 Battery Life Use: 5 ~ 7 Hours (Depending on the Number of Programs Used)
Physical
 Dimensions Widht: 254 mm
Height: 176 mm
Thicness: 17,4 mm
 Weight 800 Gram
Environmental
 Working Temperature -20 °C ~ 60 °C
 Storage Temperature -30 °C ~ 80 °C
 Working Humidty 5% ~ 95% (Non Condensing)
 Data Captures
 Barcode Types AZTEC, CODABAR, CODE11, CODE128, EAN 128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CAN POST, AUSPOST, IATA25, CODABLOCK, JAPOST, PLANET, DUTCHPOST, MSI, TLC39, TRIOPTIC, CODE32, STRT25
 Certifications
 Industrial Protection IP65
 Drop Test 6 sides can withstand the impact of 1 meter drop to concrete
 Certificate CCC, CTA
