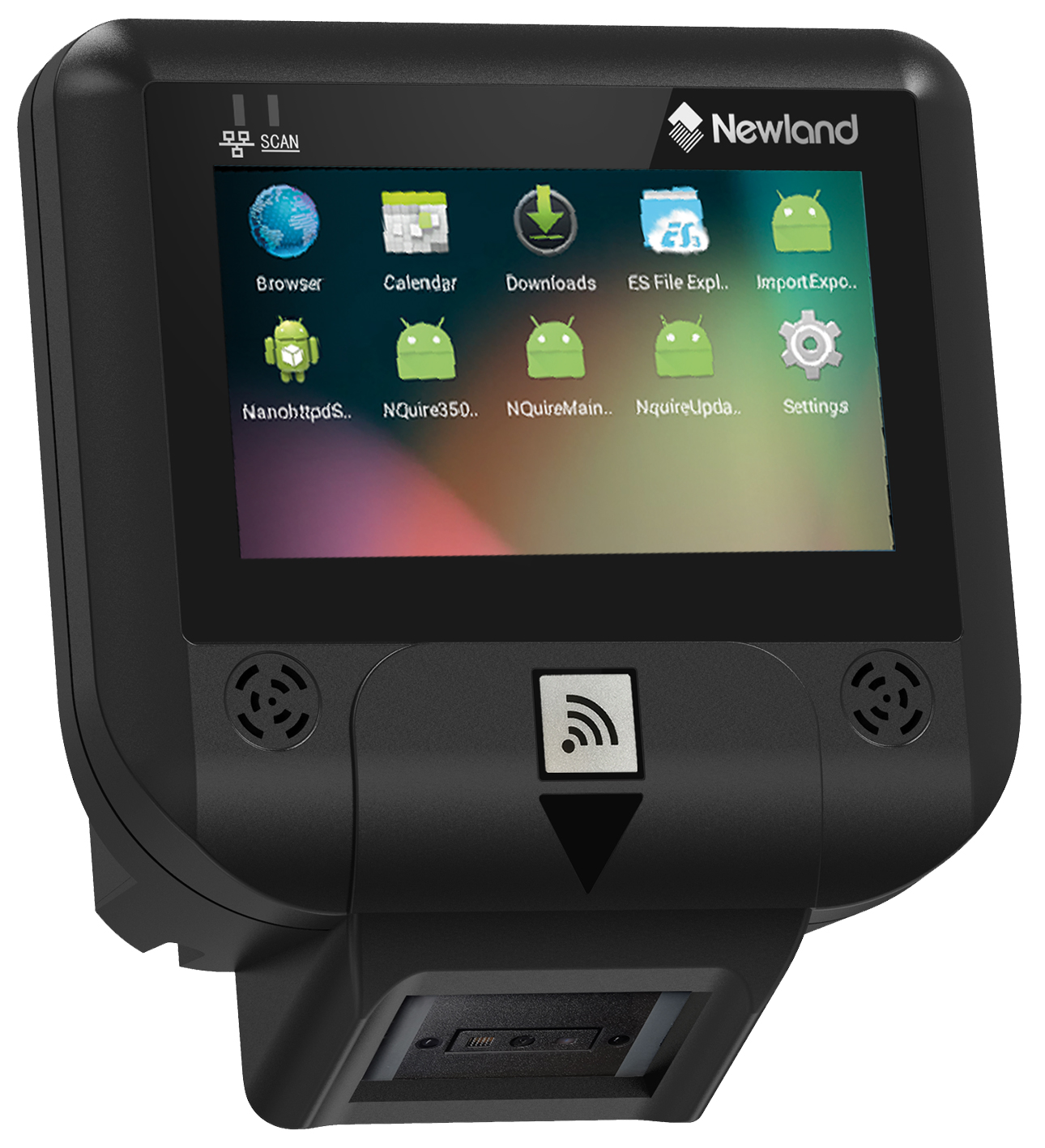

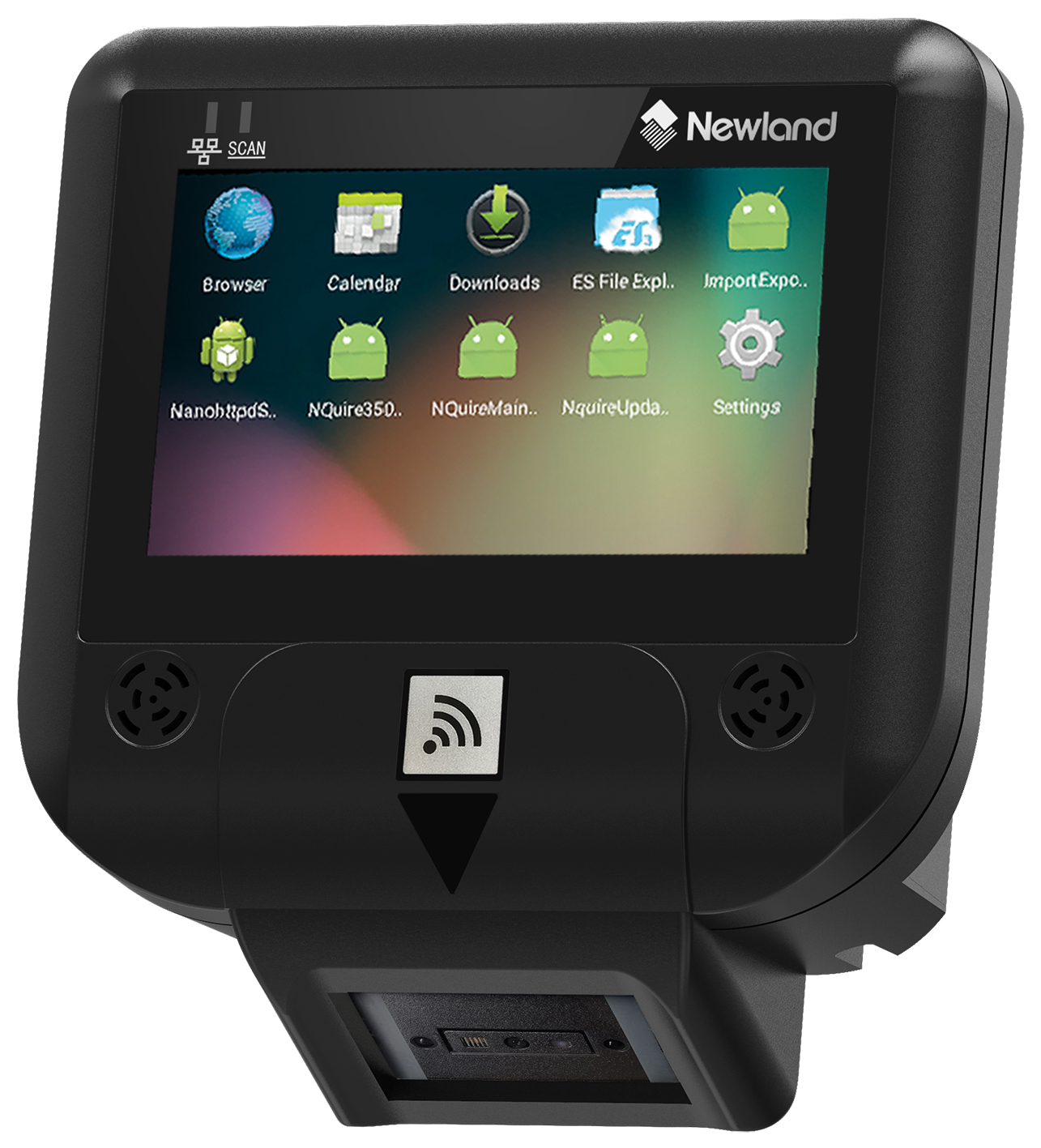

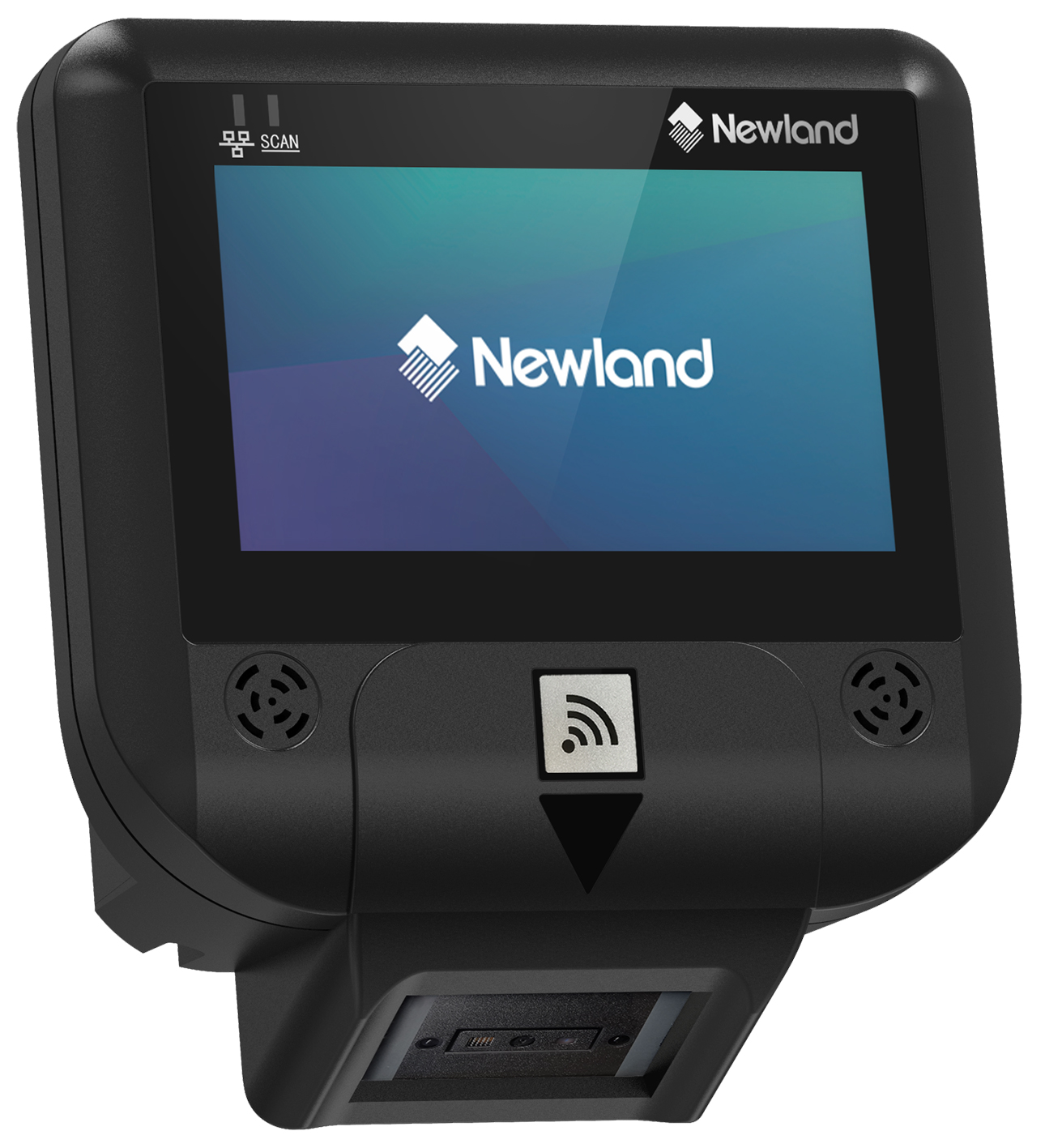

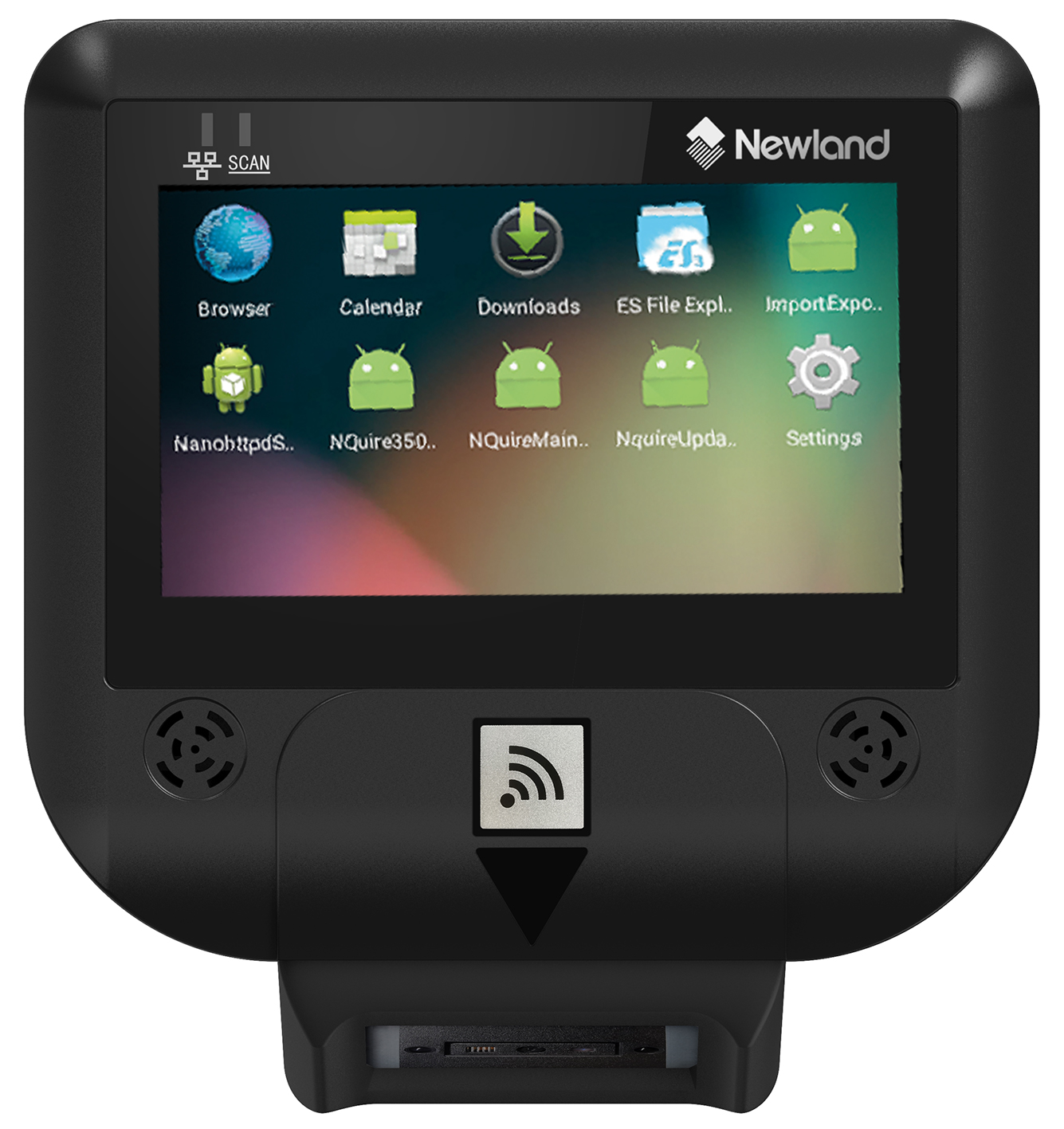

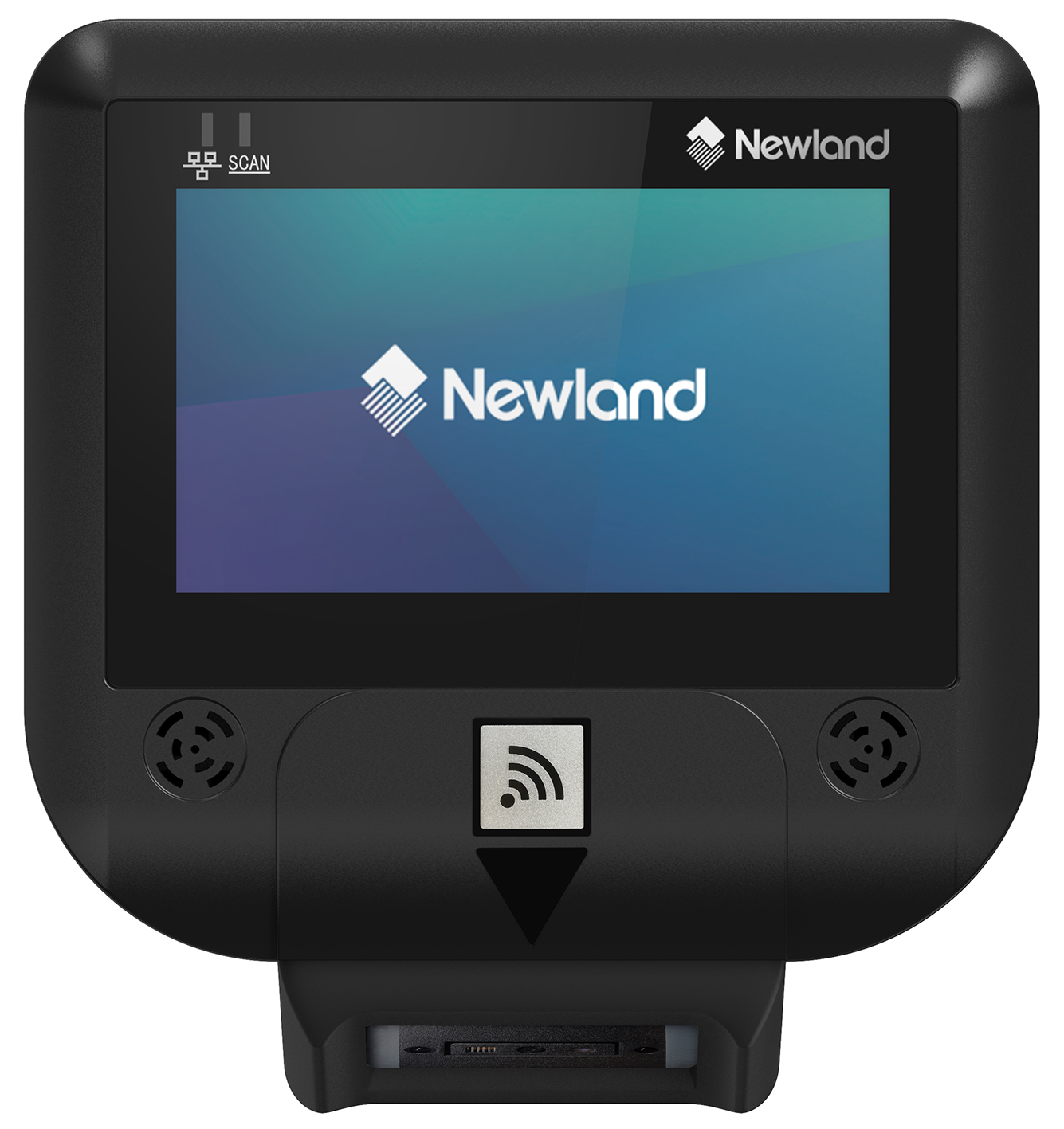

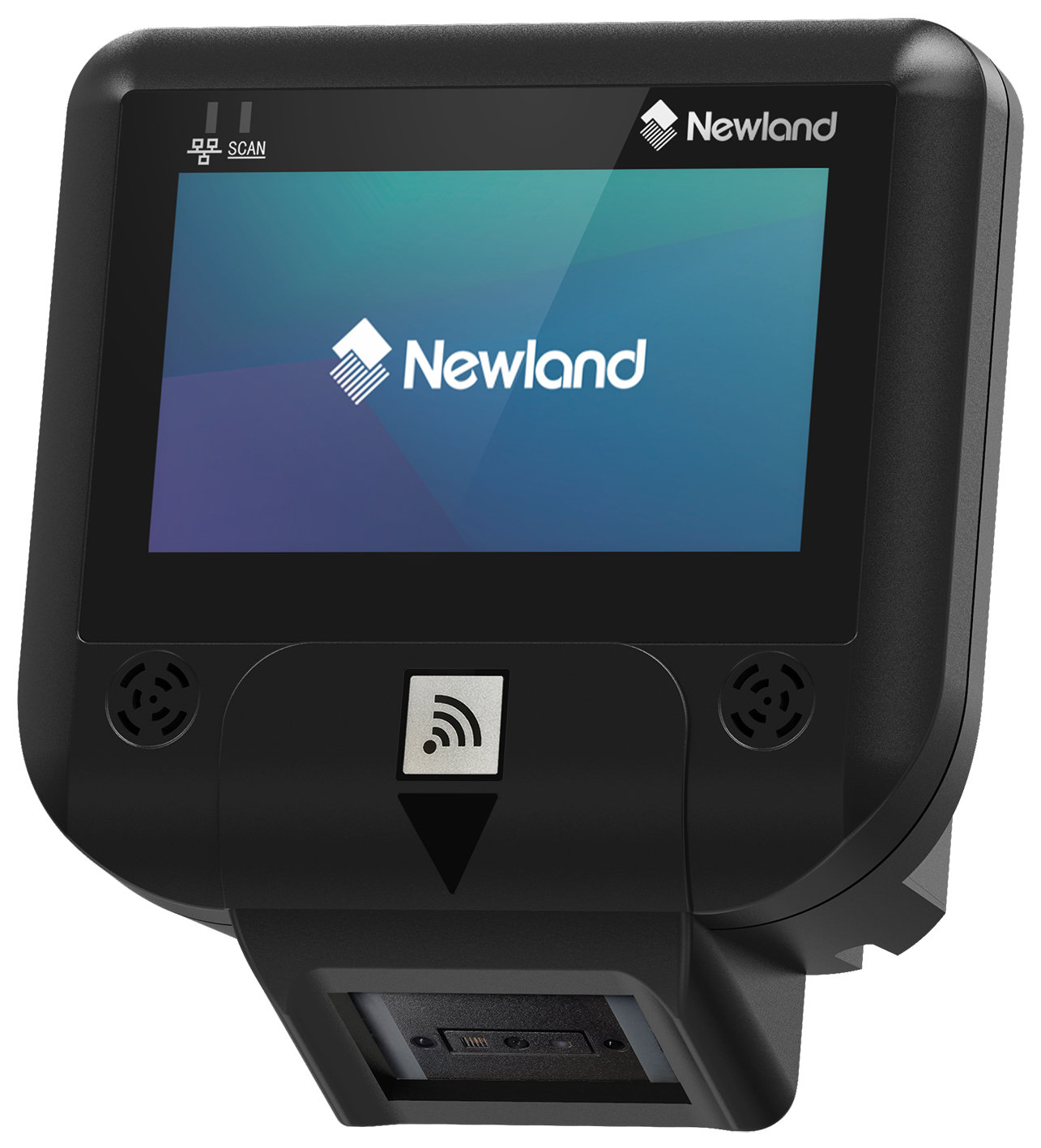

Newland NQuire350
(Skate)
Information Terminal
(Price Checker)



● Android 7.1 (Nougat) Operation System
● 1.5 Ghz CPU
● 2 GB RAM and 8 GB ROM
● 4,3 Inch Color Touch Screen
● USB, Ethernet, and Wifi Interface
● 2D Imager Barcode Scanner

 Model Support Barcode Types Barcode Scanner Type
 NQuire351 Android 7.1 1D / 2D
Performance
 CPU Octa Core 1,5 Ghz Processor
 Memory 2 GB RAM, 8 GB Flash ROM
 Operation System Android 7.1 (Nougat)
 Audio 88 dB (850 Hz~20 KHz) Dual Channel Stereo Sound
 Expansion Slot Micro SD Card Slot (Up To 128 GB)
Display
 Type 5-point capacitive touch panel
 Size 4,3" (Inch)
 Resolution 480 x 272 Pixel

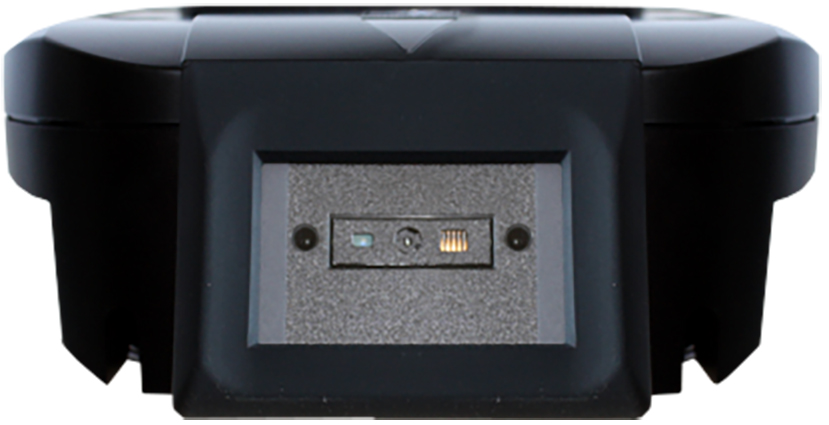

Barcode Scanner
 Supported Barcode Types 1D and 2D
 Barcode Types 1D Code 11,Cdoe 128, Code 39, GS1 128 (UCC/EAN-128), AMI 128, Codabar, ISBT 128, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, ITF14, ITF6, Industrial 25, Standart 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS), Code 49, Code 46 etc.
2D PDF417, QRCode, Micro QR, Data Matrix, Aztec, MaxiCode, GM Code, Chinese Sensible Code, MicroPDF417, Code One
Communication
 USB USB (2 Pcs)
 Ethernet 10/100 /1000 Mbps Ethernet
 GPIO Programable GPIO (2 PCS Input and 2 PCS Output)
 Wifi IEEE 802.11 b/g/n/ac
 BT Optional: Bluetooth 4.0 LE
 NFC (RFID) ISO/IEC 1443 A/B, ISO/IEC 15693; MIFARE 1K/4K; MIFARE DESFire; Sony FeliCa
Power
 Power consumption 6W
 Power Source Input AC110 ~ 220V, 50~60 HZ
Output DC12V, 2A
 POE Power Over Ethernet IEEE 802.3 AF (Optional)

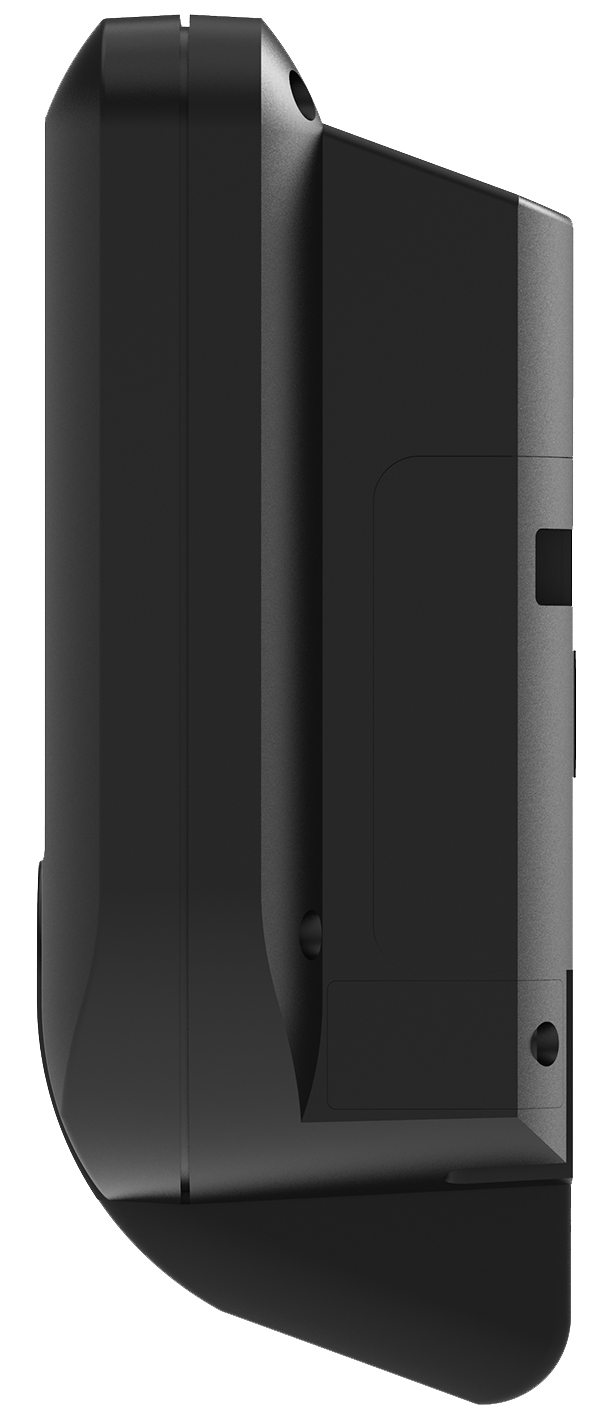

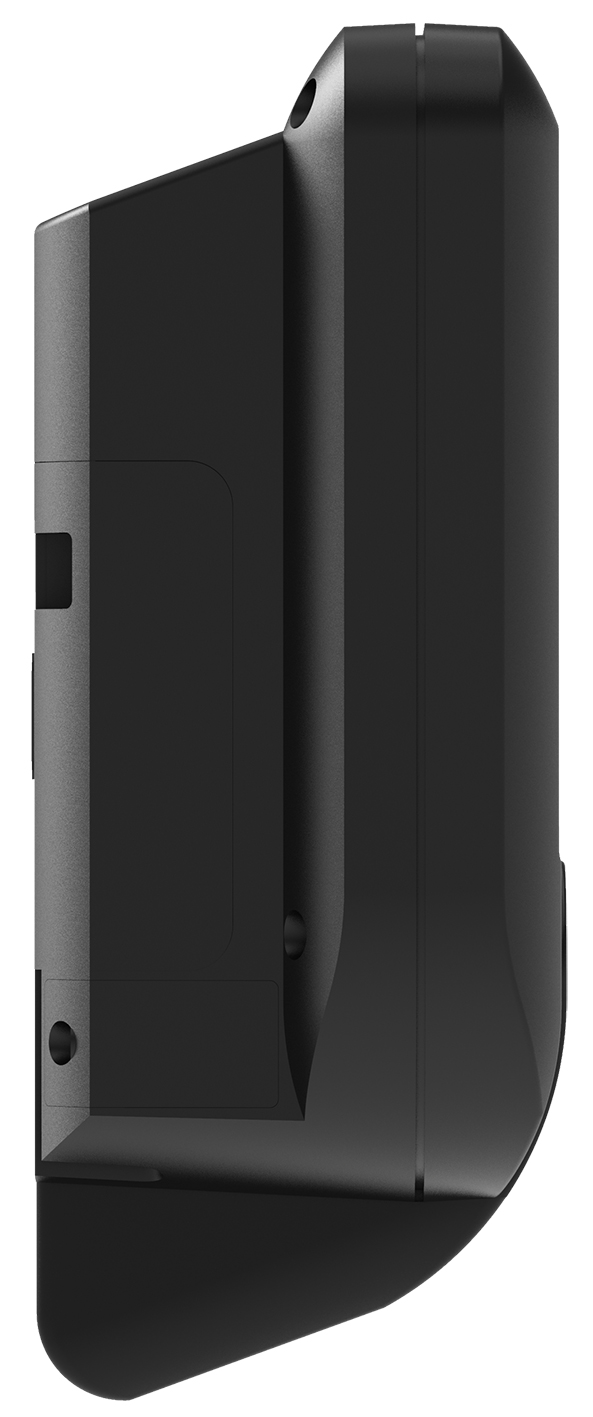

Physical
 Dimensions Width 139,5 mm
Height 140 mm
Depth 61 mm
 Weight 403 Gram

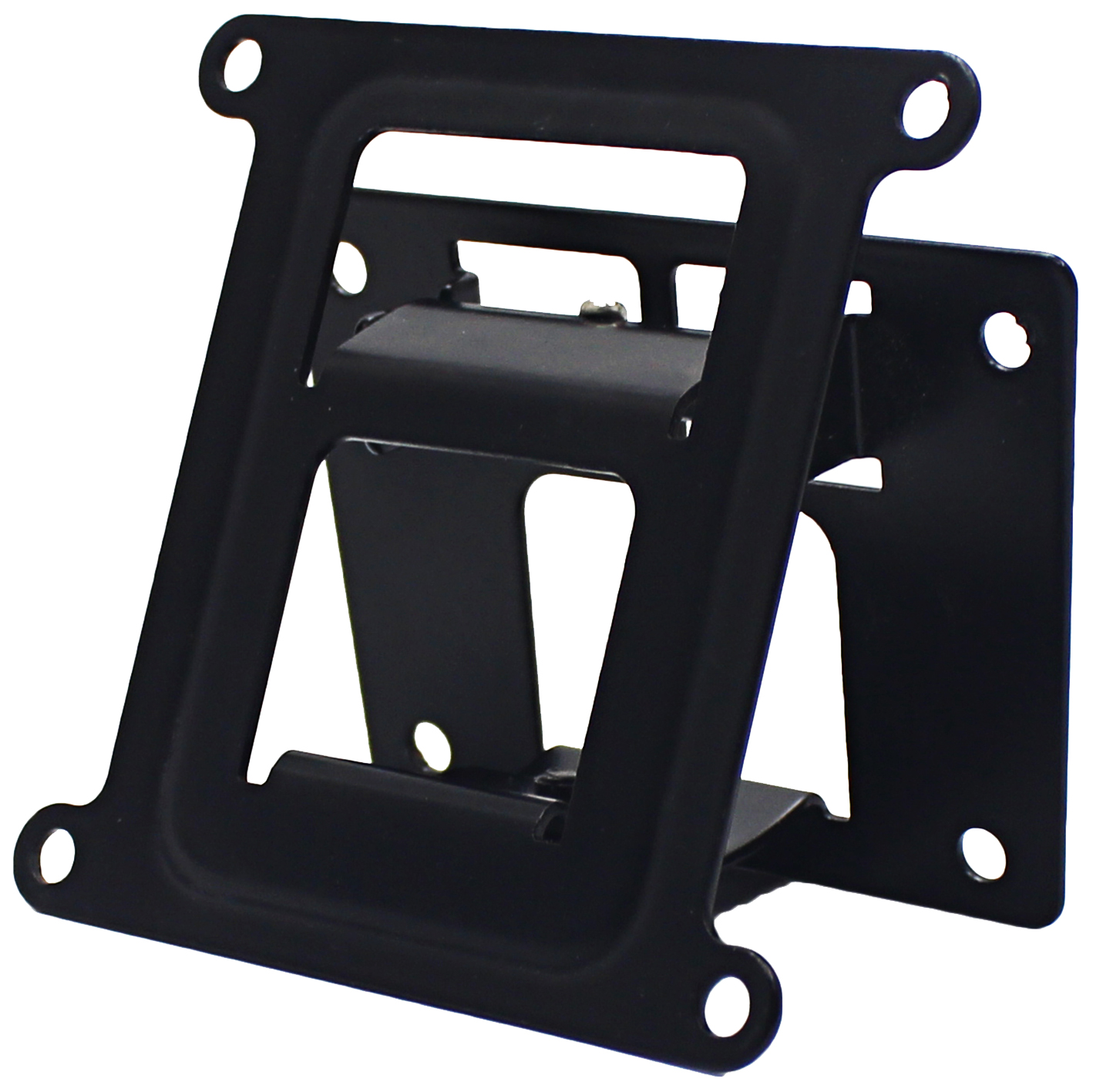

 VESA standard Complies with standard 75 braket, enabling easy mounting on shelves and walls
Environmental
 Temperature Working 0°C ~ 50°C
Storage -20°C ~ 55°C
 Humidty Working %5 ~ 90 (Non Condensing)
Storage %5 ~ 95 (Non Condensing)
