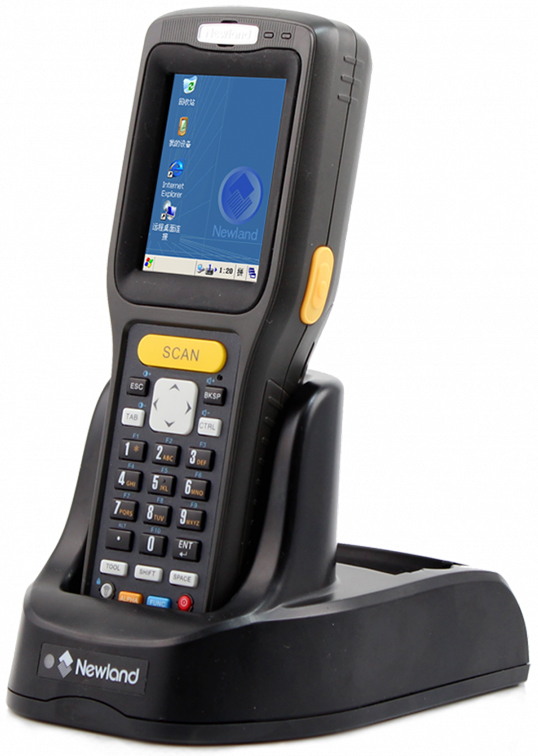

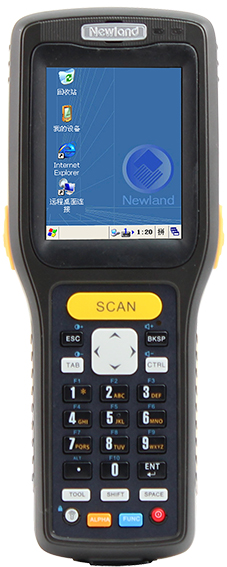

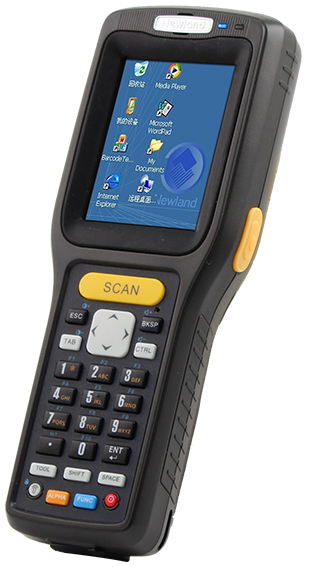

Newland PT30
Windows Ce.Net Mobile Computers



● Windows CE.NET 6.0 operation systems
● Marvell CPU PAX310 806 Mhz proccessor
● 256 MB RAM, 4 GB ROM
● 2,83 Inch with Backlight color touch screen
● Ergonomic, compact, robust and lightweigt
Bluetooth and Wifi technology
● 1.2 mt (4 ft) drop resistance
● IP54 protection class
● Free Data Collection Software

 System
 CPU Marvel XScale PXA310,806 Mhz Micro Proccessor
 RAM 256 MB
 Flash ROM 4 GB
 Operation Systems Microsoft Windows CE .NET 6.0 Professional
 Indicator Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot
 Interface Mini USB 2.0, supports USB charging
 Display
 Type QVGA with backlight TFT Touch screen LCD
 Size 2,83"
 Resolution 240 x 320 pixel
 Keypad
 Type Numeric
 Key Quantity 30
 Communication
 USB Mini USB 2.0 (supports USB charging)
 Wifi Summit 802.11 b/g, security support EAP, WEP, WPA, WPA2, 802.1X
 Bluetooth Bluetooth Class II V2.0
 Power
 Power supply Input: AC 100~240V, 50~60Hz
Output:DC 5V, ≥ 1.5A
 Main Battery 3,7V 3000 mAh Rechargeable Li-Polymer Battery
 Backup Battery 3,7V 150 mAh Rechargeable Li-Polymer Battery (supports50-hour data backup)
 Battery Charge Time 3,5 hours (charge via AC adapter)
 Battery Life Max: 11 hours
 Physical
 Length 189,5 mm
 Width 76 mm
 Height 45 mm
 Weight 382 gr (batteries included)
 Environmental
 Operation temperature -10 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop test 1,2 meters to concrete
 Sealed standard IP54
 ESD ±8 kV contact discharge; ±15 kV air discharge
 Certifications FCC Part15 Class B, CE EMC Class B, CCC
 Supported Barcode Types
 Supported barcode 1D: Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, Code 93, ISBN, ISSN
2D: PDF417, QR Code, Data Matrix, Maxicode, Aztec
