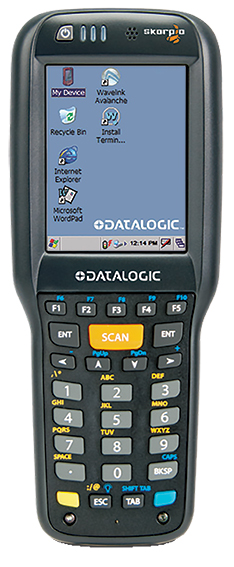

Datalogic SkorpioX4
Windows Embedded Compact 7
Mobile Computer



● Windows Embedded Compact 7 Operation System
● TI OMAP @1 GHZ Micro Proccessor
● 1 GB RAM, 8 GB Flash ROM
● 3,2 Inch (240x320 Pixel) with Backlight color touch screen
● Wifi and Bluetooth
● 1D or 2D Barcode Scanner Options
● 1.8 mt (6 ft) drop resistance
● 28, 38 or 50 keys keyboard options
● IP64 protection class
'Green Spot' technology for good-read feedback
Free Data Collection Software

 System
 CPU TI OMAP @1 GHZ CPU
 Memory 1 GB RAM, 8 GB Flash ROM
 Operation Systems Microsoft Windows Embedded Compact 7
 Display
 Type With Backlight QVGA, Transflective LCD
 Size 3,2"
 Resolution 240 x 320 pixel
 Keyboard
 Keyboard Types 28 Key: Numeric Keyboard
38 Key: Functional Numeric Keyboard
50 Key: Full Alpha Numeric Keyboard
 Communication
 Wired communication USB: USB 1.1 Host & Client (Micro-USB port for power only, no data communication interface)
RS-232C: Up To 115200 Kbps
Ethernet: Via Single Dock or multiple Cradle (Optional)
 Wireless communication Wifi: TI Wi-link 8, IEEE 802.11 a/b/g/n (Compatible CCX v4 Security)
Bluetooth: Bluetooth V2.1 + EDR
 Power
 Main Battery Standart: 3.7V DC, 3000 mAH Rechargeable Li-ion Battery
Optional: 3.7V DC, 5200 mAH Rechargeable Li-ion Battery
 Physical
 Weight 392 gram Standart Battery without pistol
482 gram Standart Battery with pistol
 Dimensions Height 193 mm
Width 76 mm
Thickness 42 mm
 Environmental
 Operation temperature -10 °C ~ 50 °C
 Storage temperature -25 °C ~ 70 °C
 Particulate and water sealing IP64
 Drop Resistance 1,8 meter
 Decoding Capability
 1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
 2D Codes Aztec Code, DataMatrix, MaxiCode, QR Code, Upu FICS, USPS Intelligent Mail
 Postal Codes Australian Post, Japan Post, KIX Code, Planet,Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes Micro PDF, PDF417
 Barcode Scanner
 2D Barcode Scanner Resolution 1D: 0.100 mm (4 mil)
2D: 0.127 mm (5 mil)
Scan Rate Max. 60 frames/sec
Scan Distance 35 mm ~ 415 mm
Good Read Feedback "Green Spot" Good Read Feedback
 1D Barcode Scanner Resolution 0.100 mm (4 mil)
Scan Rate 104 Tarama (±12)
Scan Distance 40 mm ~ 820 mm
Good Read Feedback "Green Spot" Good Read Feedback
 Software
 Applications Pal™ Application Library prelicensed
 Configuration & Maintenance Wavelink Avalanche® MC prelicensed, Wavelink Avalanche® SE prelicensed, Avalanche Remote Control™, Datalogic Firmware Utility (DFU), Datalogic Desktop Utility (DDU), Datalogic Configuration Utility (DCU)
 Development Datalogic Windows SDK™, Wavelink® Studio™, MCL-Collection™, Java Virtual Machine
 Security Wavelink CE Secure, Wavelink Certificate Manager
 Terminal Emulaiton Wavelink® Terminal Emulation™ prelicensed (for Pistol Grip models only

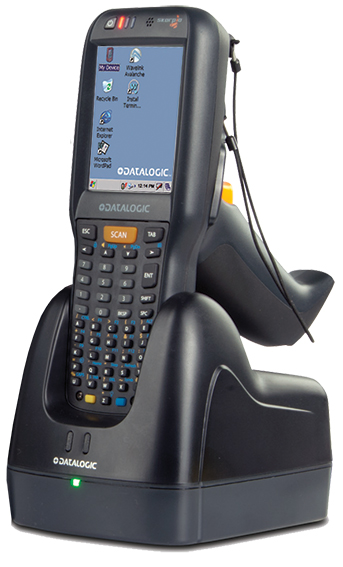

4 Slot Cradle 4 Slot Battery Charger Pistol
Stylus Standart Battery Extended Battery
