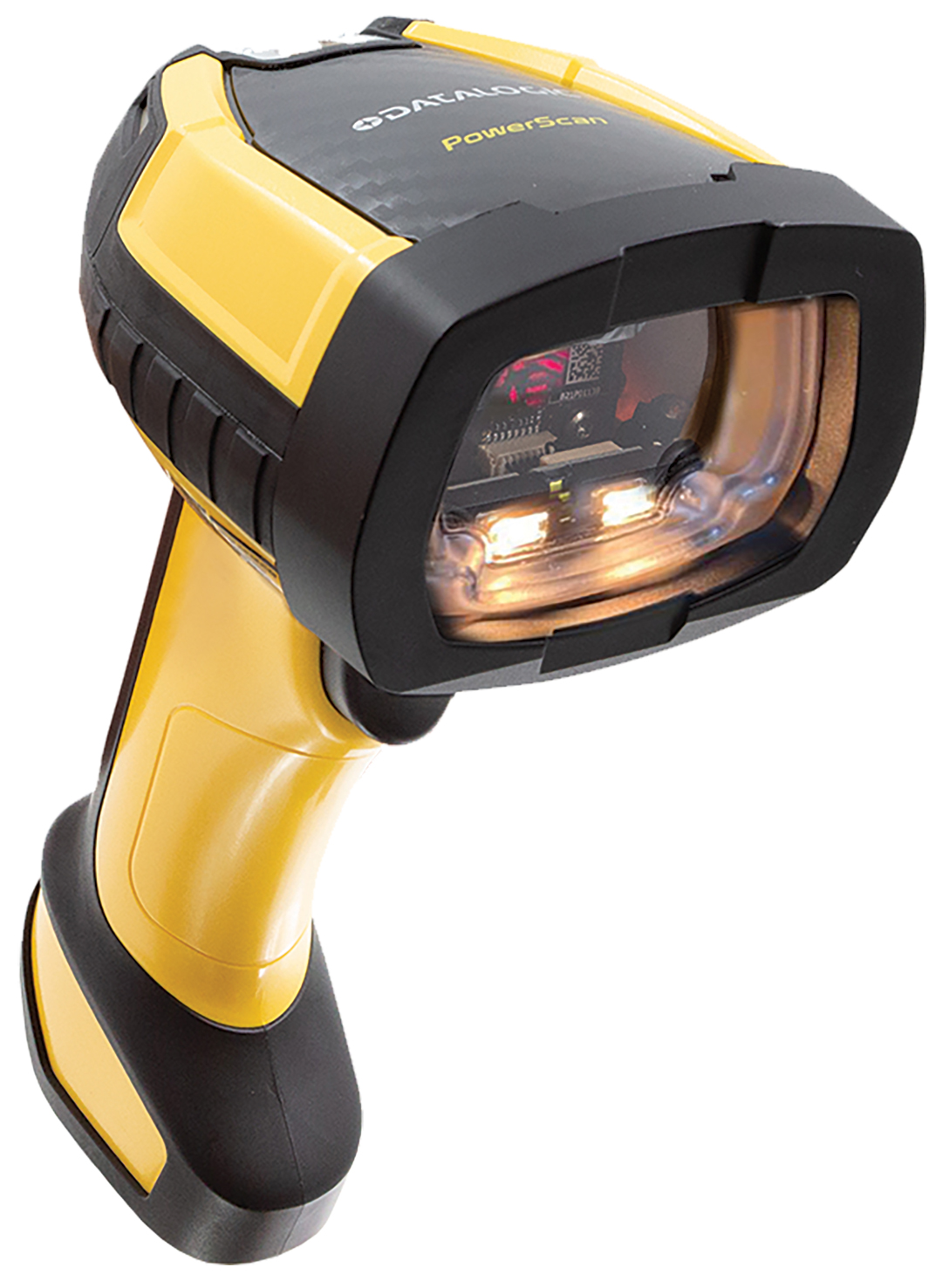

● Wireless Industrial Barcode Scanner
● Datalogic Star2® System Wireless Technology with up to 50 m
● Decodes 1D, 2D, Stacked Codes and Postal Codes

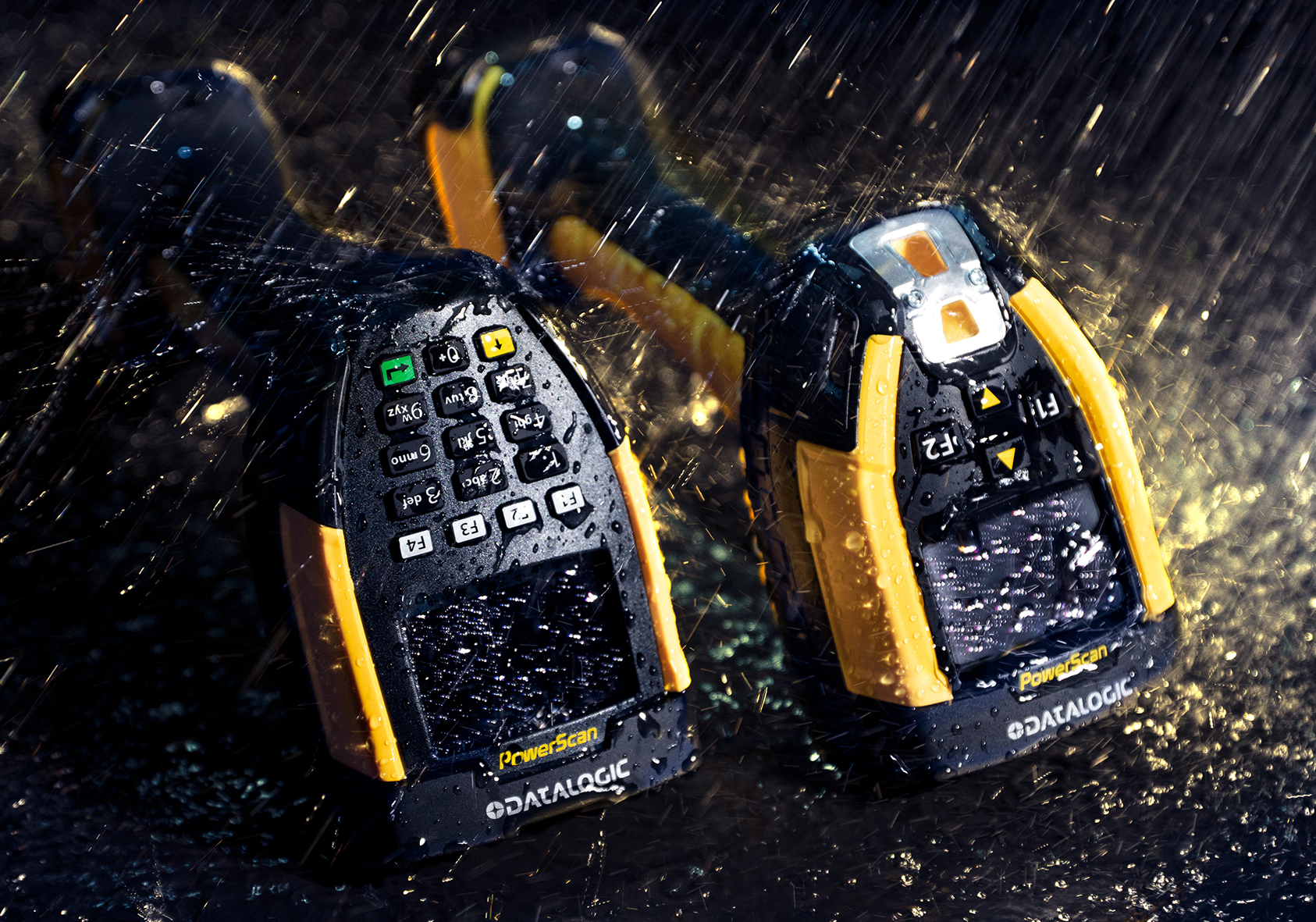

● Water and particulate sealing rating:IP65
● Lithium-Ion battery replaces in 3 seconds!
● Datalogic’s Motionix™ motion-sensing technology
● Soft white light illumination
● Intuitive aiming system
● Drop resistance to 2m / 2.5m
● Ability to work even at -10°C
● Multi Interface Support
| Cordless Communication | ||
| Datalogic Star2 Cordless System | Point to Point Configuration | |
| Mult Point Configuration | ||
| Seamless Roaming | ||
| Two Way Communications | ||
| Effective Radiated Power | 433 MHz <10 mW | |
| 910 MHz <50 mW | ||
| Frequency | 433 MHz or 910 MHz | |
| Radio Range (Open Air) | 433 MHz: 50 m | |
| 910 MHz: 30 m | ||
| Decoding Capability | ||
| 1D Linear Barcodes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. | |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code | |
| Postal Codes | Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) | |
| Stacked Codes | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites | |
| Digital Watermarking | Digimarc Barcodes (HP and DC models) | |
| Electrical | ||
| Battery | Battery Type: Lithium-Ion: 3350 mAh | |
| Charge time @ 12 VDC: 2.5 hours to charge up to 95%, 3.2 hours to charge 100%, External Power | ||
| Reads per Charge: 80,000 | ||
| Current |
Corded models: Operating (Typical): SR: 200mA @ 5V; 120mA @ 12V. HP/DC: 280mA @ 5V / 140mA @ 12V. Standby/Idle (Typical): 187mA @ 5V / 92mA @ 12V. Cordless models: Operating 480 mA @ 3.7 V. Charging (Typical) < 15 W. Cradle BC96xx only: 150 mA @ 5 V (Operative) |
|

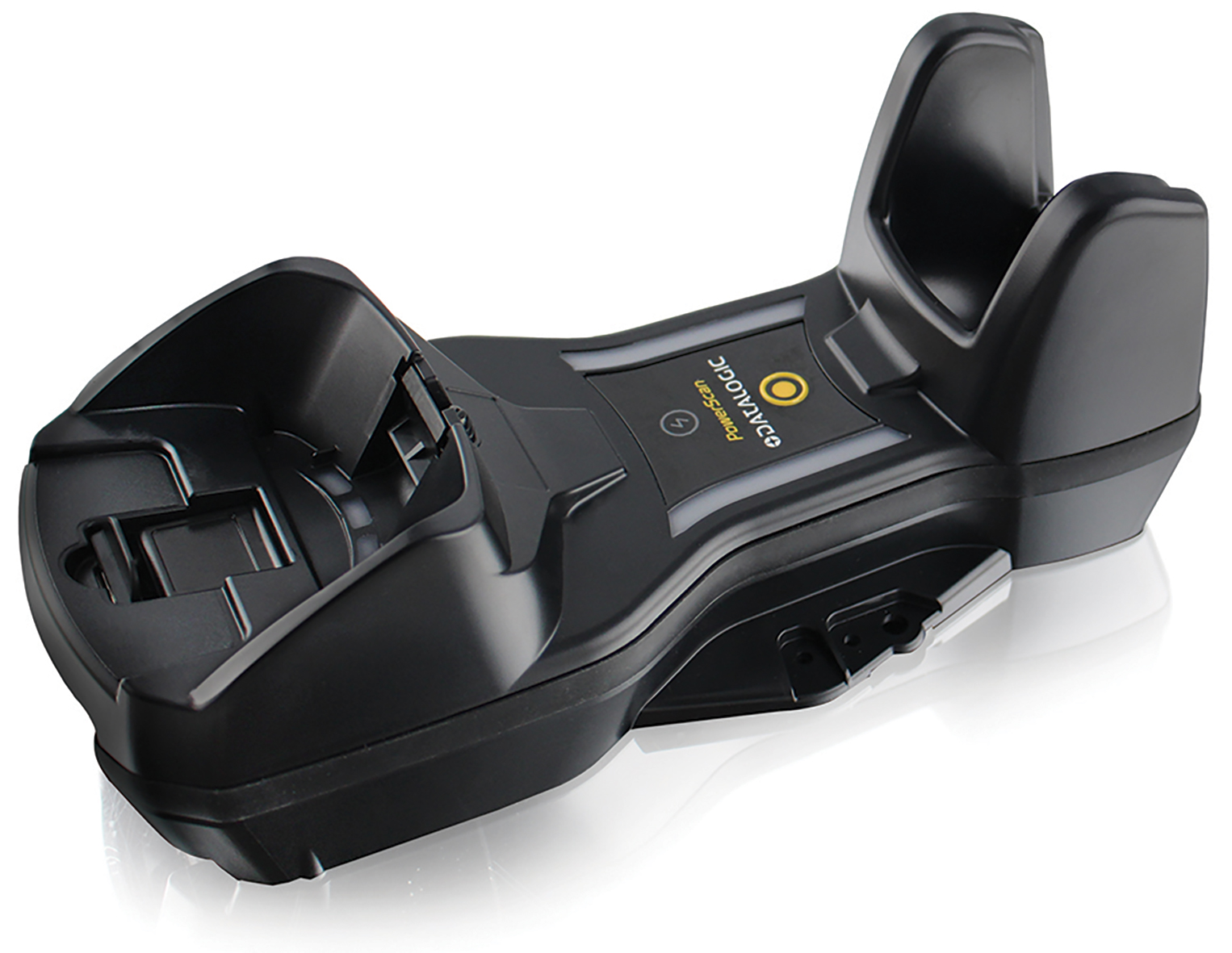

| Cradle Indicator LEDs | RED: Battery Charging | |
| Green: Charge Completed | ||
| Yellow: Power/Data | ||
| Input Voltage |
Corded models: 5 - 30 VDC ± 5% Cordless models: Host powered: 5V DC ± 5% or 10 - 30 VDC External power supply: 10 - 30 VDC ± 5% |
|
| Environmental | ||
| Light Levels | 0 - 100,000 lux | |
| Drop Durability |
Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F;
Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 ° |
|
| Trigger Resistance | Withstands 10 million hits | |
| ESD Protection (Air Discharge) | 20 kV | |
| Humidty | 0 ~%95 (Non Condensing) | |
| Charging temperature |
Operating: -20 to 50 °C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F Charging: 0 to 40 °C / 32 to 104 °F nominal; 0 to 35 °C / 32 to 95 °F ideal |
|
| IP Standard | IP67 and IP65; Cradle IP65 (specific models) | |
| Interfaces | ||
| Supported Interfaces | RS-232 / USB / Ethernet and Industrial Protocols | |
| Physical Characteristics | ||
| Color | Yellow/Black | |
| Dimensions | 19.8 x 14.0 x 7.9 cm (7.8 x 5.5 x 3.1 in) | |

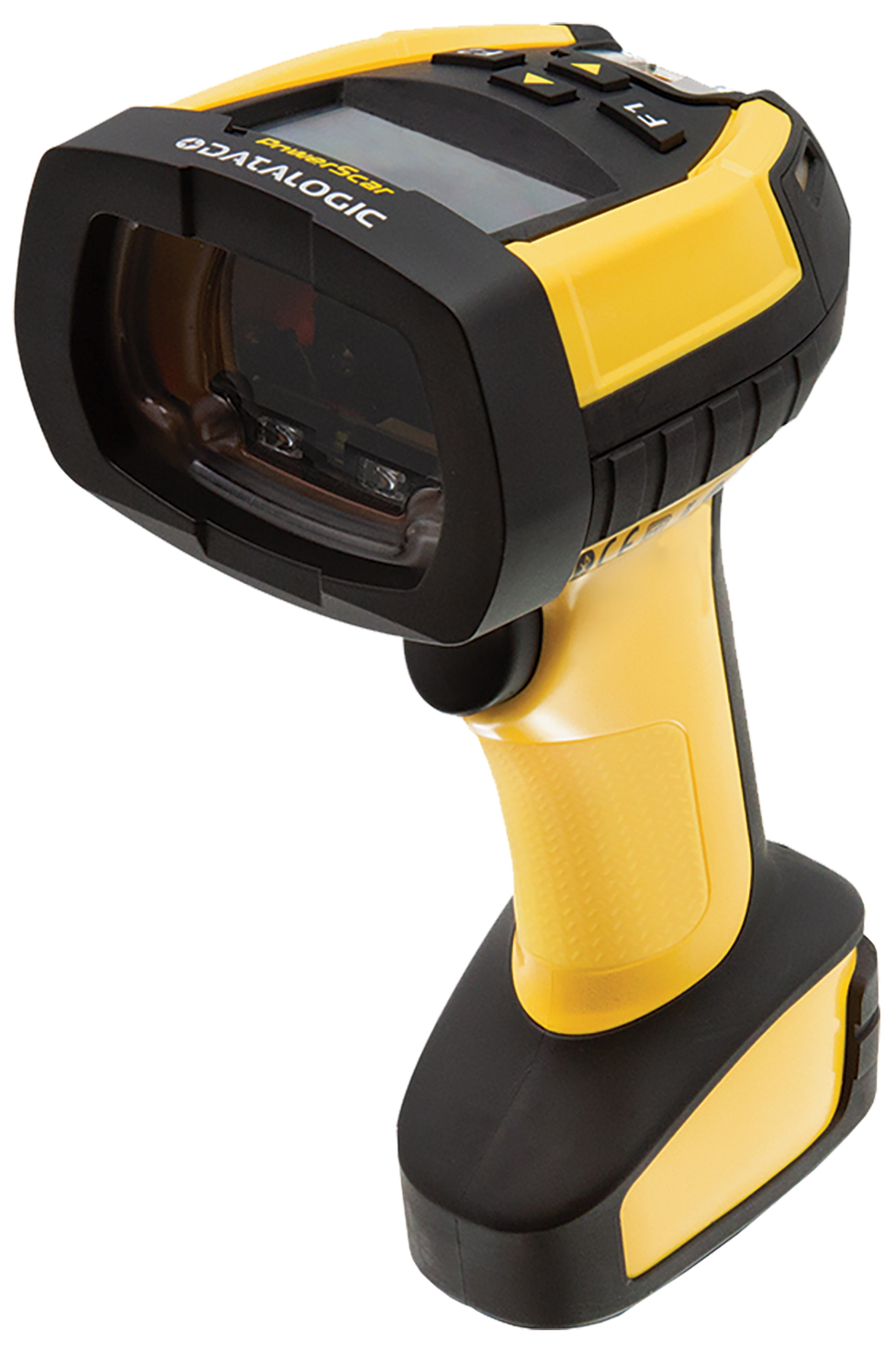

| Display |
PM9600-D/DK. 1.8’’ OLED graphic display;
Font Dimensions: User selectable. |
|

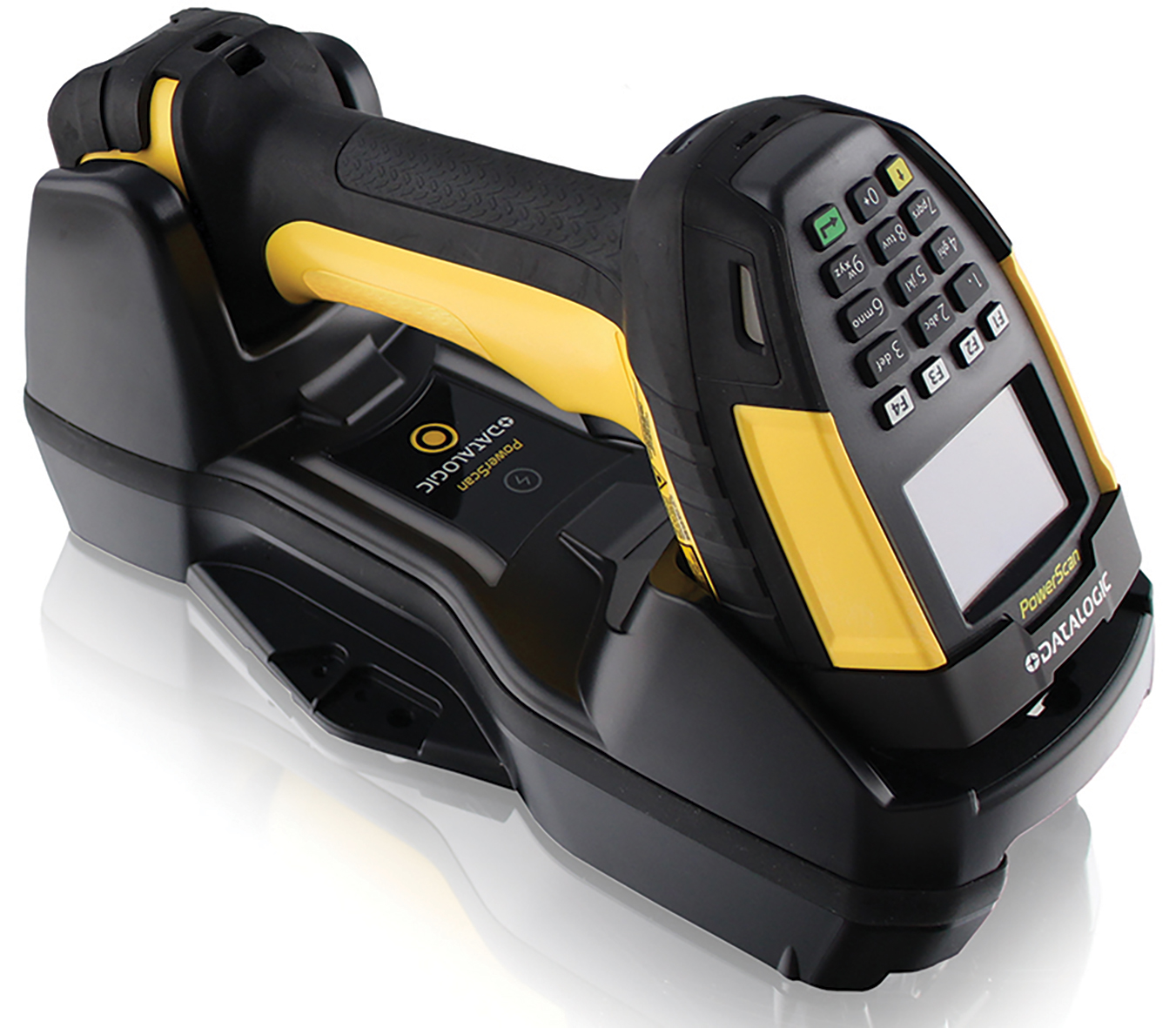

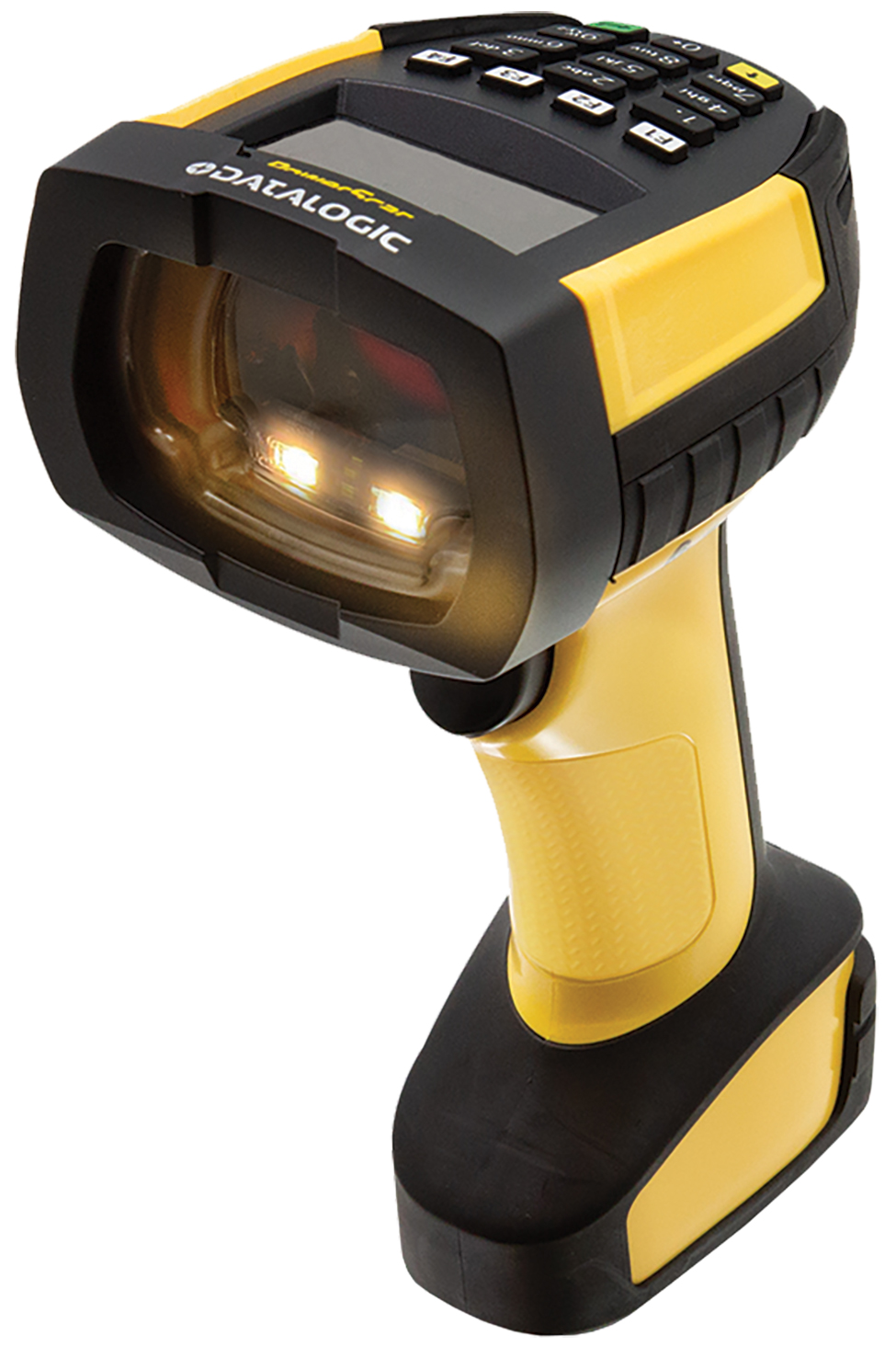

| Keypad | PM9600-D: 4 Keys, PM9600-DK: 16 Keys; Configurable | |
| Weight |
PD9630: 318 g / 11.2 oz PBT9600: 415 g (14.6 oz) PM9600: 425 g (15.0 oz) PM9600-D: 445 g (15.7 oz) PM9600-DK: 455 g (16.0 oz) |
|
| Reading Performance | ||
| Imager Sensor | 1280 x 800 pixels | |
| Light Source | Aiming: 630 - 680 nm VLD | |
| Illumination: White LED reading light | ||
| Print Contrast Ratio (Min.) | 15% | |
| Reading Angle | Pitch: ±52°; Roll (Tilt): 360°; Skew (Yaw): ±52° | |
| Print Contrast Ratio (Min.) | 15% | |
| Field of View | SR and HP: 38° H, 24° V | |
| Reading Indicators | Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology for good-read feedback; Datalogic ‘Green Spot’; Dual Good Read LEDs; Vibration. | |
| Resolution (Max.) |
SR/DC: 1D Codes: 3 mil; 2D Codes: 6 mil HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil |
|
| Scanning Distances | ||
| Standart Range |
1D |
Code 128: 2.5 mil (6,4 cm ~ 30,9 cm) |
| Code 128: 2.5 mil (6,4 cm ~ 30,9 cm) | ||
| Code 128: 40 mil (5,5 cm ~ 175 cm) | ||
| EAN/UPC: 13 mil (4 cm ~ 67,5 cm) | ||
|
2D |
Datamatrix: 10 mil (6 cm ~ 30 cm) | |
| High Density |
1D |
Code 128: 2.5 mil (6,3 cm ~ 11,5 cm) |
| Code 128: 5 mil (3.8 cm ~ 41 cm) | ||
| Code 128: 40 mil (5,5 cm ~ 242,9 cm) | ||
| EAN/UPC: 13 mil (4 cm ~ 120 cm) | ||
|
2D |
PDF417: 10 mil (0.5 cm ~ 46.1 cm) | |
| Datamatrix: 10 mil (4.2 cm ~ 32 cm) | ||
| Safety and Regulatory | ||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | |
| Environmental Compliance | Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H. | |
| Laser Classification | Caution Laser Radiation - Do not stare into beam, CDRH Class II, EN 60825-1 Class 2 | |
| LED Classification | IEC 62471 Class 1 LED | |
| Utilities | ||
| Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge | |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
|
| Remote Host Download | Available on request | |
