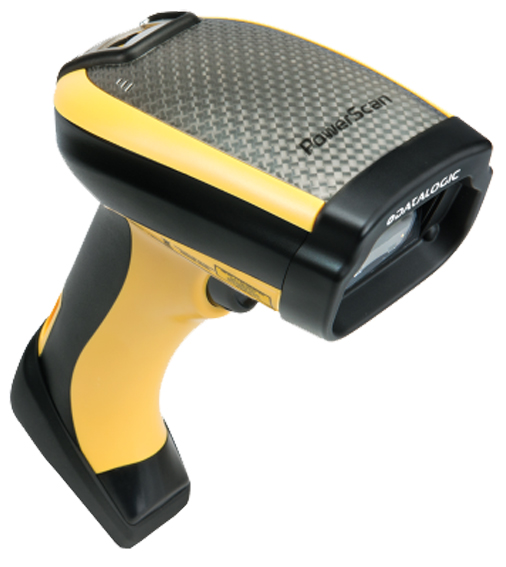

Datalogic PowerScan PD9500-DPM
Industrial 2D/DPM Barcode Scanner



● Corded Industrial Barcode Scanner
● Supports 1D, 2D, Postal Codes and Stacked Codes
● Supports any kind of Direct Part Marked (DPM) code
● 864 x 540 pixel Imager Sensor
● 0,063 mm (2,5 mil) resolution
● Water and particulate sealing rating:IP65
● Snappy omnidirectional reading
● Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good read feedback
● Datalogic’s Motionix™ motion-sensing technology
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Keyboard Wedge, RS-232 and USB Interface

 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 2D Codes Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code
 Postal Codes Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
 Electrical
 Input Voltage 5 VDC ±10%
 Input Voltage (Typical) Operating: 350 mA
StandBy/Idle: 120 mA
 Environmental
 Light Levels 0 ~ 100.000 Lux
 Drop Durability 2 meter
 ESD Protection (Air Discharge) 20 kV
 Humidty %0 ~ %95 (Non Condensing)
 Operation temperature -20°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 IP Standard IP65
 Interfaces
 SupportedInterfaces Keyboard Wedge, RS-232 and USB (Multi Interface)
 Physical
 Dimensions 212 mm x 110 mm x 74 mm
 Weight 330 gr
 Color Yellow/Black
 Reading Performance
 Direct Part Marking (DPM) Capability Codes are readable when marked by laser or chemical etching or ink jet printed. Data Matrix codes are also readable when marked by dot peening
 Imager Sensor 864 x 544 Pixel
 Image Capture Graphic Formats: BMP, JPEG, TIFF
Greyscale: 256, 16, 2; JPEG, TIFF
 Light Source Aiming: 630 - 680 nm VLD
Illumination: White LED reading light
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: ±40°; Roll (Tilt): 360°; Skew (Yaw): ±40°
 Reading Indicators Beeper (Adjustable Tone and Volume), Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good-read feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
 Resolution (Max.) 1D Codes: 2.5 mil; 2D Codes: 4 mil
 Scanning Distances
 Scanning Distances

1D

2 mil: 2,8 cm ~ 6,3 cm
2,5 mil: 2,5 cm ~ 7,8 cm
5 mil: 1,2 cm ~ 9,0 cm
13 mil (EAN-13): 2,5 cm ~ 16,0 cm

2D

4 mil (Datamatrix): 2,6 cm ~ 5,2 cm
5 mil (Datamatrix): 2,2 cm ~ 7,2 cm
10 mil (Datamatrix): 2 cm ~ 10,5 cm
5 mil (PDF417): 1,2 cm ~ 9,0 cm
10 mil (PDF417): 1,0 cm ~ 12,5 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H.
 Laser Classification Caution Laser Radiation - Do not stare into beam CDRH Class II, IEC 60825 Class 2
 LED Classification IEC 62471 Class 1 LED
 Utilities
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Available on request
