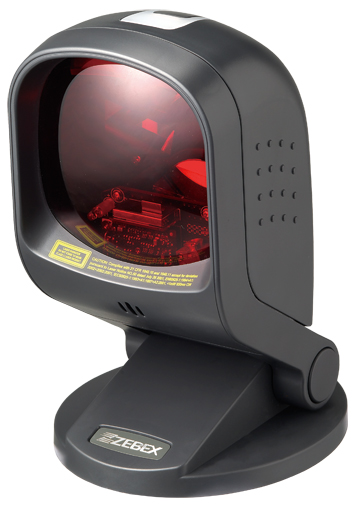

Zebex Z-6170
Omnidirectional Laser Barcode Scanner



● 1D Omnidirectional laser barcode scanner
● 20 Number of scan Line
● 1200 Scan per second
● 0 ~ 216 mm scanning distance
Single-line scanning capability
Screwless fixing

 Operational
 Light source 650 nm visible laser diode (VLD)
 Scan Pattern 5 directions of scan field
 Number of Scan line 20
 Depth of field 0 – 216 mm (UPC/EAN 100%, PCS=90%)
 Scan Rate 1.200 scans per second (omnidirectional)
74 scans per second (single-line)
 Minimum Bar Width 0.125 mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%)
 Print Contrast 30% @ UPC/EAN 100%
 Indicators (LED) Two color LED (green and red)
 Beeper Operation Programmable tone & beep time
 System Interfaces Keyboard, RS-232C, USB-HID
 Physical
 Height 165.1 mm
 Depth 118 mm
 Width 100 mm
 Weight 360 gr (Stand Excluded)
 Cable Standard 2 meter straight
 Material ABS Plastic
 Electrical
 Input Voltage 5 VDC ±10%
 Operating Current 270 mA
 Power Consumption 1,35 Watts
 Laser Safety CDRH Class IIa; IEC 60825-1: Class I
 EMC CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
 Environmental
 Operation temperature 0°C ~ 40°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Light Levels Max. 4.000 Lux (fluorescence)
 Drop Durability Designed to with stand 1 m drops
 Supported Barcode Types
 Standart UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13,ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, MSI/Plessy, China Postal Code, Code 32
 Optional IATA Code, Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5
