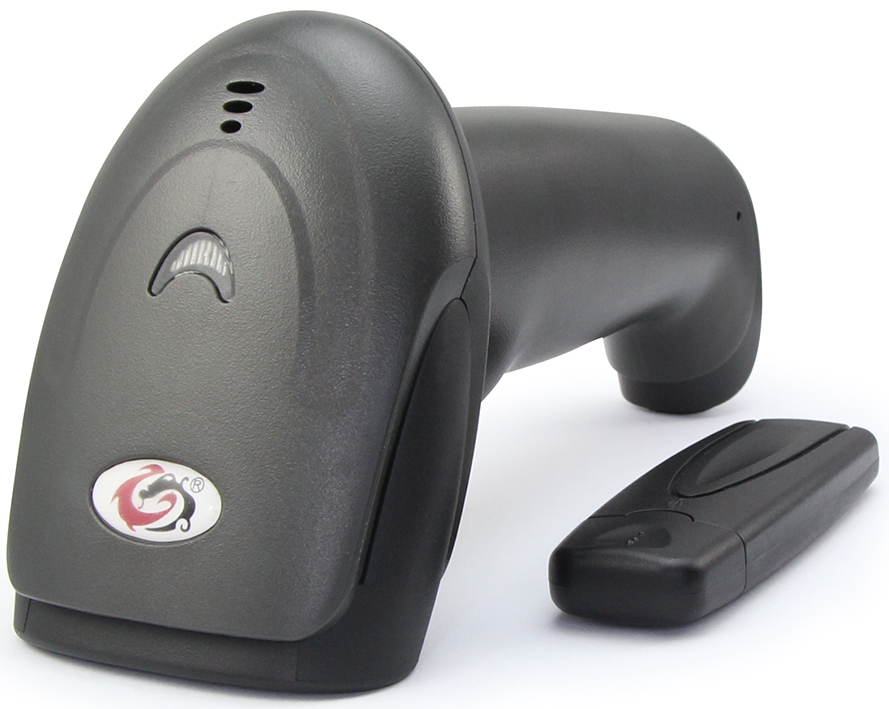

Sunlux XL-9309
Wireless 1D Barcode Scanner



● 1D Laser Barcode Scanner
● Wifi (433 Mhz) Communication
● Max. 300 meter data transmission range
● 0,076 mm (3 mil) Resolution
● 0 ~ 280 mm Scanning Distance
● IP54 high-level industrial protection
● 1.5 mt (5 ft) drop resistance

 Operational
 Light source 650 nm (±10) visible laser diode (VLD)
 Supported Barcode Types 1D (Linear)
 Minimum Bar Width 0.076 mm (3 mil)
 Scan Rate 300 scans/sec
 Depth of field 0 mm ~ 280 mm
 Scan Width 30 mm ~ 220 mm
 Print Contrast %30 (UPC/EAN %100)
 Indicators (LED) LED and Beeper
 Tilt & Elevation & Deflection 30° & 65° & 55°
 Communication
 Radio Frequency 433 MHz ISM frequency
 Communication Distance Max. 300 meter (At open places)
 Decode Capabilities
 Barcode Types EAN-8,EAN-13,UPC-A,UPC-E,Code11,Code 32,Code39 Standard,Code39 Full Ascii,Code 93,Code128,EAN128, UPC-A, UPC-E,EAN/UPC +2/+5,Codabar, Industrial 25,Industrial 2of 5,Interleave 25, Interleave 2of5, Matrix 25, Matrix 2 of 5,MSI/Plessey, UK/Plessey,ISBN,ISSN,GS1-rss14,GS1-Limited,GS1-Expended,GS1 STACKChina post 25 etc.
Electrical
 Battery Capacity 2200 mAh
 Input Voltage DC 5V
 Operating Current Stand By Mod : 110 mA
Operation Mod: 35 mA
 Working Time Max. 100.000 Scanning
 Laser Class Meet the Grade I National Criteria for Laser Safety
 EMC CE, FCC DOC Compliance
 Physical
 Length 170 mm
 Width 71 mm
 Height 98 mm
 Weight 180 gram
 Material Abs Plastic
 Environmental
 IP Standard IP54
 Drop Durability 1,5 meter
 Nem %5 ~ %95 (Non-Condensing)
