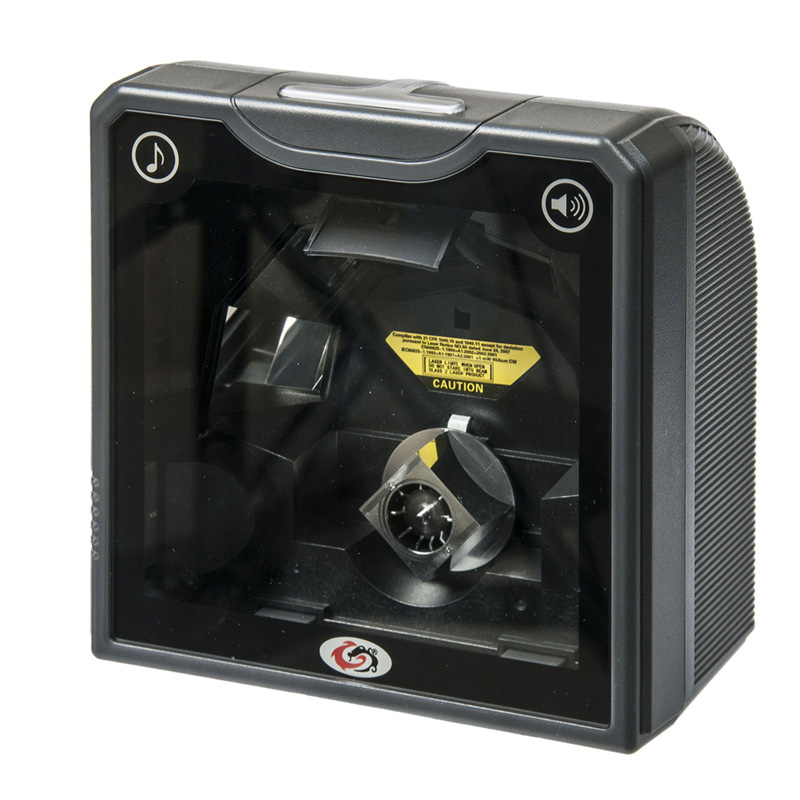

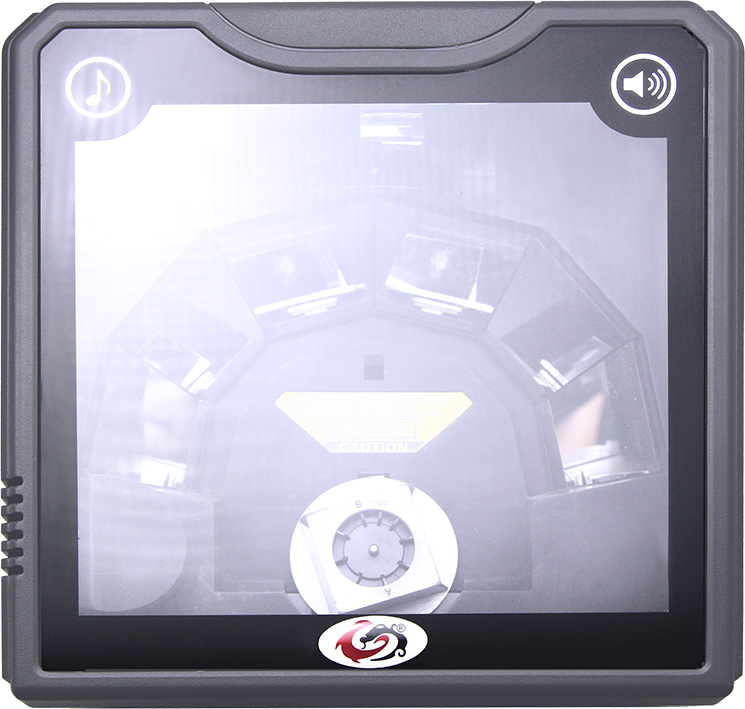

Sunlux XL-2024
Omnidirectional Laser Barcode Scanner



● 1D Omnidirectional laser barcode scanner
● 24 Number of scan Line
● 1620 Scan per second
● 0,127 mm (5 mil) resolution
● 0 ~ 250 mm scanning distance
● RS-232C, PS/2 and USB Interface

 Operational
 Light source 650 nm (±10) visible laser diode (VLD)
 Scan Pattern 6 directions of scan field
 Number of Scan line 24
 Depth of field 0 - 250 mm
 Scan Rate 1620 scans/sec
 Minimum Bar Width 0,127 mm (5 mil)
 Print Contrast %30
 Indicators (LED) LED and Beeper
 System Interfaces PS/2, RS-232C and USB
 Physical
 Width 152 mm
 Height 152 mm
 Depth 75 mm
 Weight 576 Gr
 Cables Standard 2 meter straight
 Material Abs Plastic
 Color Black
 Electrical
 Input Voltage +9V DC
 Static Current 430 mA
 EMC CE & FCC DOC compliance
 Environmental
 Operation temperature 0°C ~ 45°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %85 (Non Condensing)
 Ortam Işık Seviyesi Max. 10.000 Lux
 Drop Durability 1,5 Meter
 Decode Capabilities
 Barcode Types UPC/EAN/JAN, UPC/EAN with Supplementary, JAN 8 & JAN 13, ISBN/ISSN, EAN, Code 39, Code 39 with full ASCII, Code 93, Code 128, Codabar (NM7), Trioptic Code 39, MSI/Plessey, GS1 Code, Interleaved 2 of 5, Addendum 2 of 5, IATA Code, China Postal Code, Code 32, Industrial 2 of 5, Standart 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS Variants
