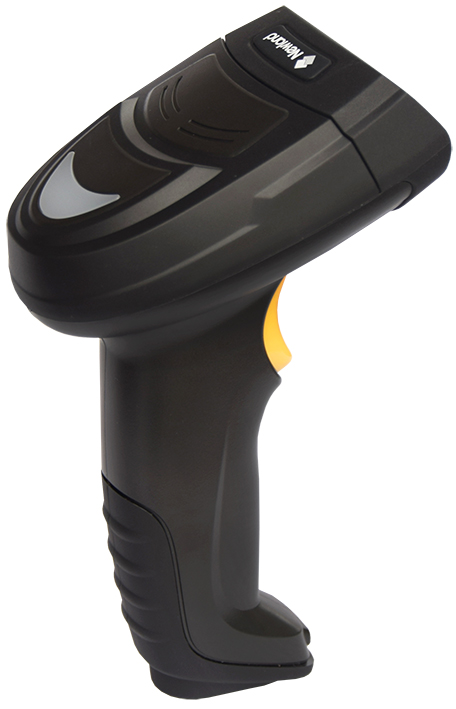

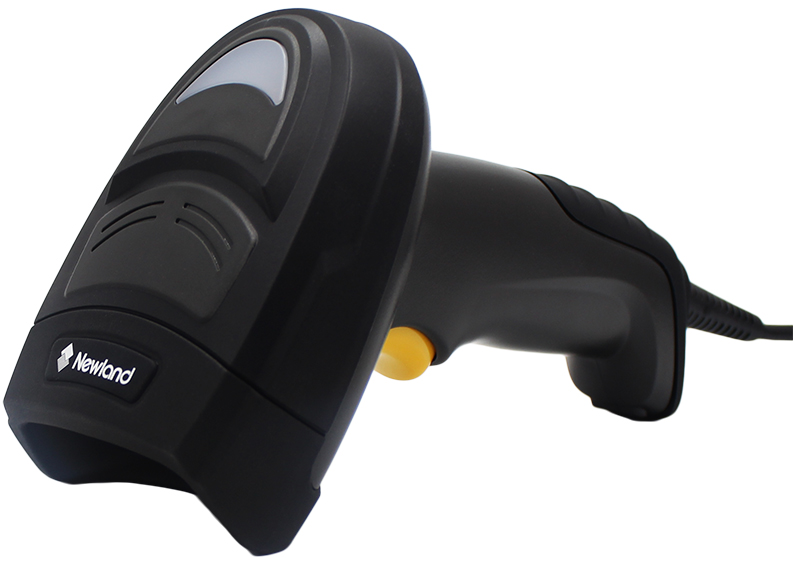

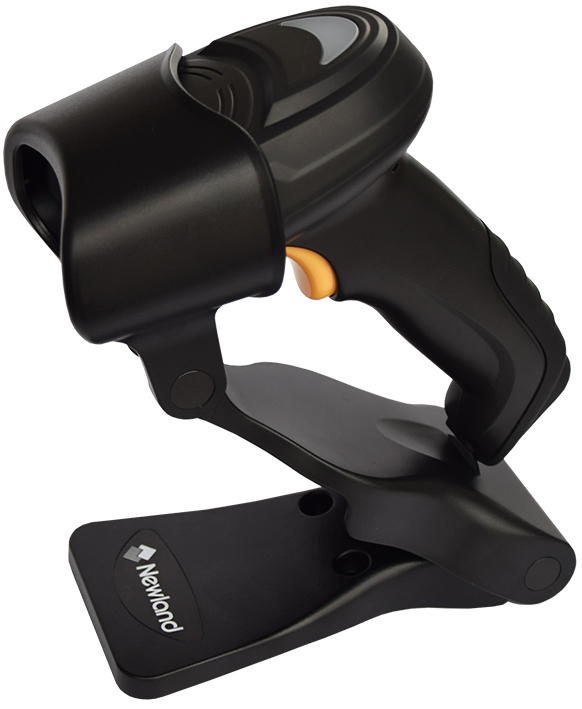

Newland HR4250
(Halibut)
Wired 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 960 Pixel Sensor
● 1D: 3 mil resolution
● 25 ~ 155 mm scanning distance
● IP42 Protection Class
● RS-232 and USB Interfaces

 Performance
 Image Sensor 1280 x 960 Pixel CMOS
 Light source Illumination: White LED
Aiming: 650 nm Laser Diode
 Resolution 0,076 mm / 3 mil (1D Codes)
 Motion Tolerance 2m/s
 Scanning angle Pitch: ±50°; Roll: ±360°; Skew: ±50°
 Indicators LED, Beep volume and Vibrator
 Print Contrast ≥%25
 Supported Interfaces RS-232, USB and PS/2
 Physical
 Width 74 mm
 Height 161 mm
 Depth 115 mm
 Weight 173 Gram
 Electrical
 Operating Voltage 5VDC (%±5)
 Current Standby: 109 mA
Operation:266 mA (Max. 344 mA)
 Environmental
 Operation temperature -20 °C ~ 50 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop 1.8 meter
 Sealing IP42
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc.
 Postal Codes USPS Postnet, Royal Mail, KIX Post, Australian Postal etc.
 2D Codes PDF417, QR Code, Data Matrix, Aztec, Maxicode etc.
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 50 mm ~ 100 mm
EAN-13 (13 Mil): 25 mm ~ 155 mm
2D PDF417 (6,67 Mil): 40 mm ~ 105 mm
Datamatrix (10 Mil): 40 mm ~ 110 mm
QrCode (15 Mil): 35 mm ~ 155 mm
