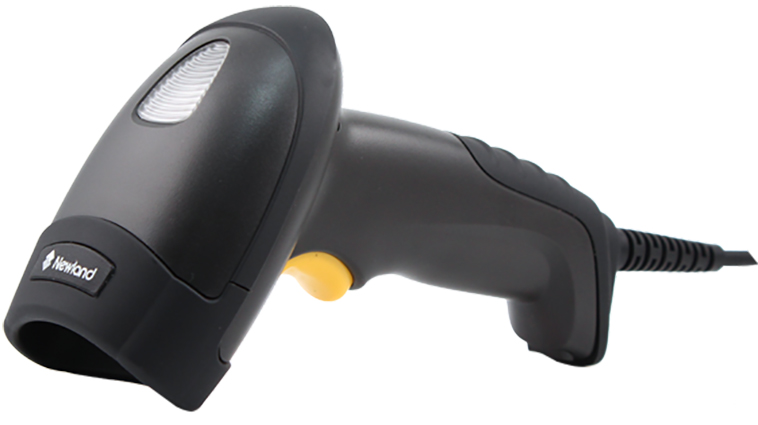

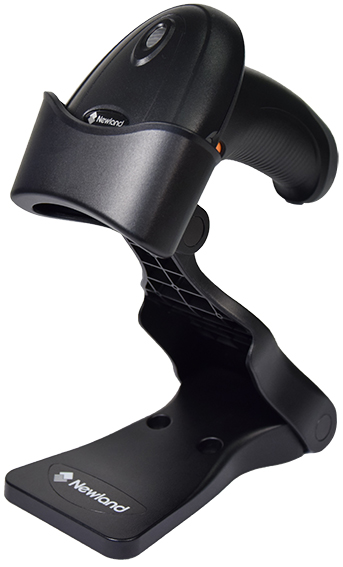

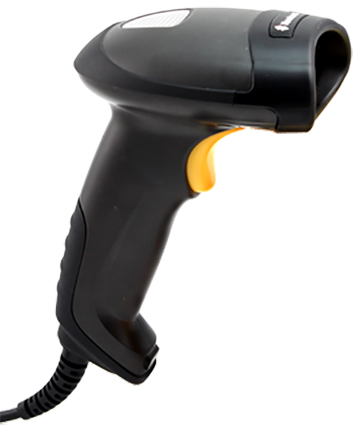

Newland HR3290
2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 1D: 3 mil resolution
● 20 ~ 370 mm scanning distance
● IP54 Protection Class
● RS-232 and USB Interfaces

 Performance
 Image Sensor 752 x 480 Pixel CMOS
 Light source 624 nm Red LED
 Scan Rate 60 scans per second
 Scanning angle Pitch: ±55°; Roll: ±360°; Skew: ±60°
 Resolution 0,076 mm / 3 mil (1D Codes)
 Indicators LED and Beep volume
 Print Contrast ≥%25
 Supported Interfaces RS-232 and USB
 Physical
 Length 113,5 mm
 Width 73 mm
 Height 159 mm
 Weight 148 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Current Standby: 20 mA
Operation:240 mA
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %0 ~ %93 (±%2) (Non Condensing)
 Drop 1.2m drop to concrete
 Sealing IP54
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
 2D Codes PDF417, QR Code, Data Matrix, Chinese Sensible Code
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 32 mm ~ 185 mm
Code 128 (3 Mil): 60 mm ~ 125 mm
EAN-13 (13 Mil): 37 mm ~ 370 mm
2D PDF417 (6,67 Mil): 45 mm ~ 120 mm
Datamatrix (10 Mil): 38 mm ~ 120 mm
QrCode (15 Mil): 20 mm ~ 175 mm
