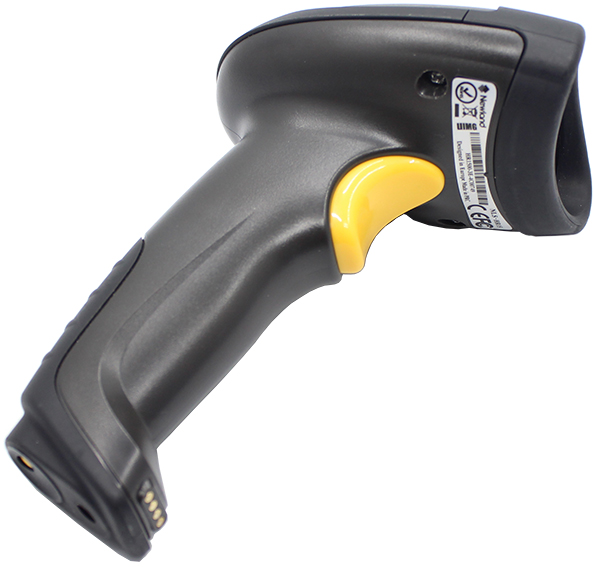

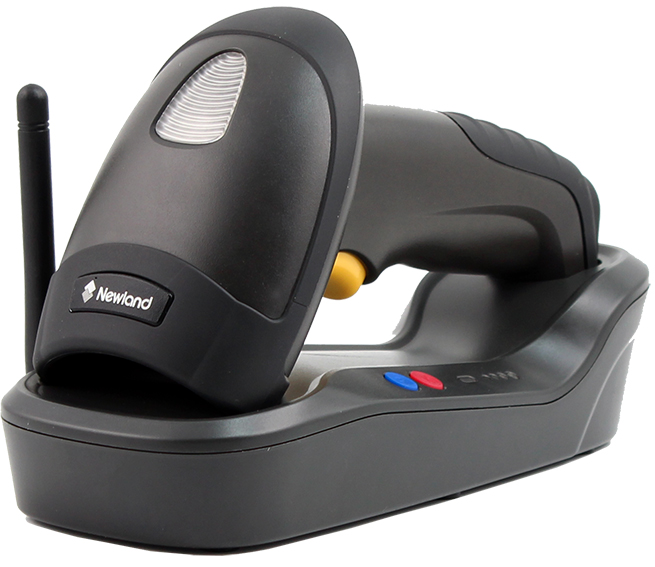

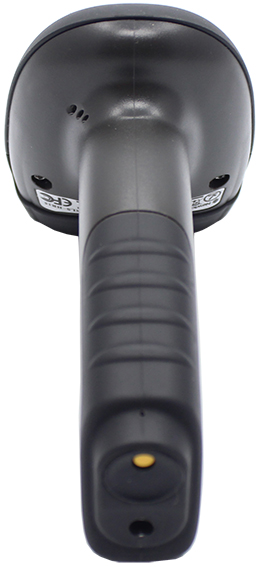

Newland HR3290-CS
2D Wireless Barcode Scanner



● 2D Imager Barcode Scanner
● 752 x 480 Piksel Imager Sensor
● Wireless (Zigbee) Communication
● Operate with a 50-meter data transmission range
● 0.127 mm (5 Mil) resolution
● RS-232C and USB Interface Options

 Performance
 Imager Sensor 752 x 480 Pixel CMOS
 Light source 625 nm (±10 nm) Red LED
 Scan Rate 60 Scans/Sec
 Scanning angle Pitch: ±55°; Roll: ±30°; Skew: ±55°
 Minimum Bar Width 0.127 mm (5 Mil)
 Indicators (LED) LED and Beep volume
 Print Contrast ≥%25
 Interfaces RS-232C ve USB
 Communication
 Operating Modes Synchronous, Asynchronous and Batch modes
 Radio Technology 2.4 to 2.4835 GHz ISM Band, Zigbee technology
 Communication Distance ≥50 metre
 Physical
 Dimensions (Scanner) Height: 159 mm
Length: 113,5 mm
Width: 73 mm
 Dimensions (Cradle) Height: 47 mm
Length: 195 mm
Width: 82,5 mm
 Weight (Scanner) 210 Gram (Without Battery)
 Weight (Cradle) 150 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Battery Type 2200 mAh Li-ion Battery
 Charging Time Around 4,5 hours for full charge
 Number of Scans 15.000 scans per charge (30 scans per minute, wireless transmission)
 Environmental
 Operation temperature -20°C ~ 50°C
 Storage temperature -20 °C ~ 70 °C
 Humidty %5 ~ %93 (Non Condensing)
 ESD Protection (Air Discharge) Scanner: ±8 KV (Contact discharge); ±15 KV (Air discharge)
 ESD Protection (Air Discharge) Cradle: ±6 KV (Contact discharge); ±8 KV (Air discharge)
 Drop 1,2 m drop to concrete
 IP Standard IP52
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Decode Capabilities
 1D Barcodes Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
 2D Barcodes PDF417, QR code, Data Matrix
