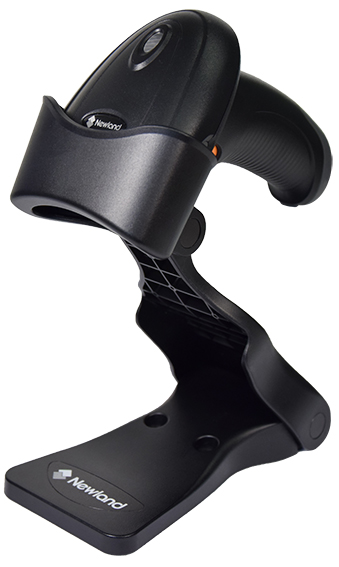

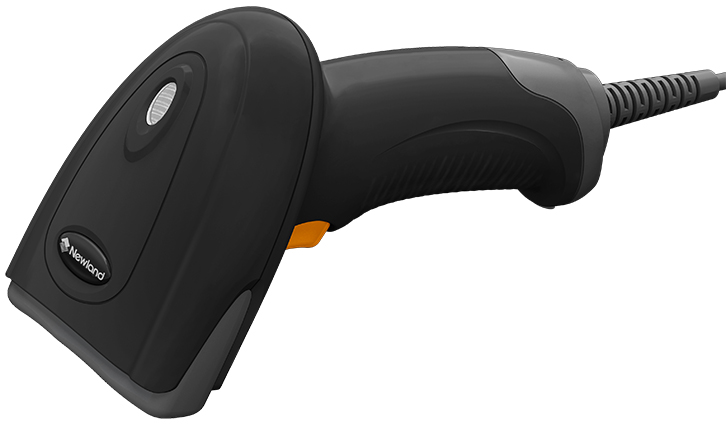

Newland HR2260
2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 3 mil resolution
● IP42 Standard
● Schockproof to 1,2 meters
● RS-232C and USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Scanning angle Pitch: ±60°; Roll: ±360°; Skew: ±55°
 Resolution 0.076 mm / 3 mil (1D Codes)
 Indicators LED and Beep volume
 Print Contrast ≥%30
 Interfaces RS-232C and USB
 Physical
 Length 145 mm
 Width 101 mm
 Height 68 mm
 Weight 165 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: DC 5V
 Current Standby: 10 mA
Operation:240 mA (Max:270 mA)
 Environmental
 Operation temperature -20 °C ~ 55 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±8 KV (contact discharge); ±15 KV (air discharge)
 Drop Durability 1,2 meter
 IP Standard IP42
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey,GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
 2D Codes PDF417, QR code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 20 mm ~ 160 mm
EAN-13 (13 Mil): 35 mm ~ 360 mm
2D PDF417 (6,67 Mil): 20 mm ~ 110 mm
Datamatrix (10 Mil): 15 mm ~ 100 mm
QrCode (15 Mil): 15 mm ~ 150 mm
