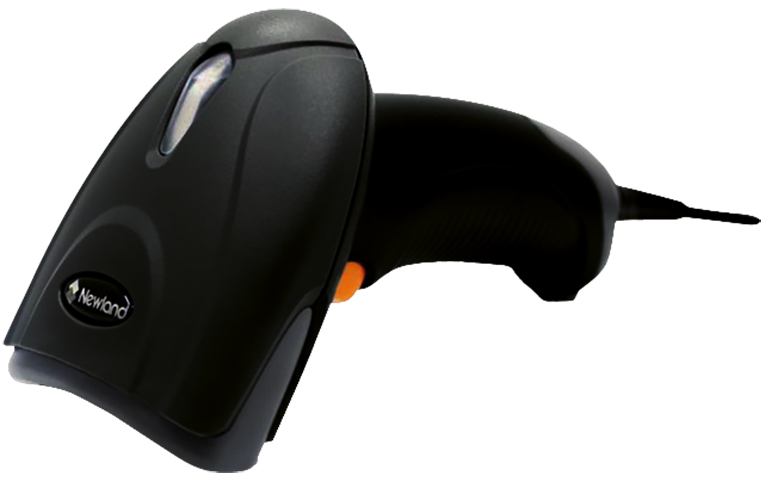

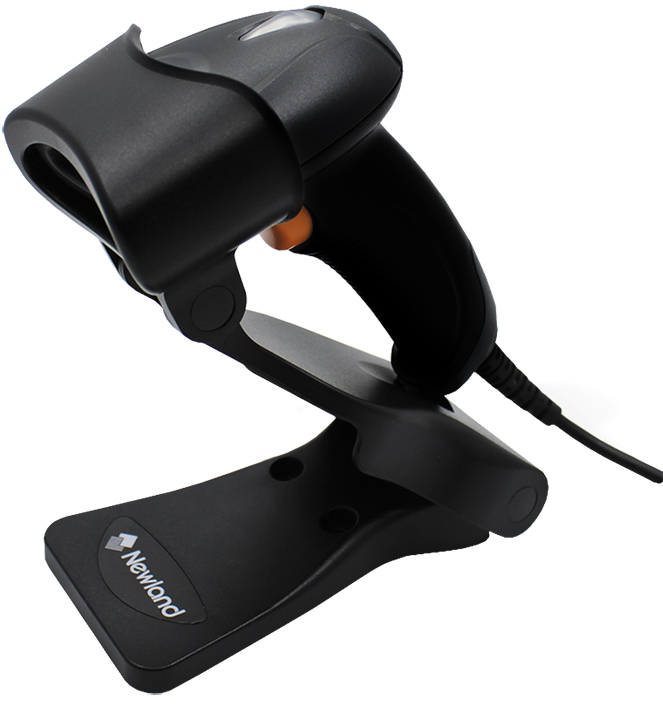

Newland HR2080
(Panga)
2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 4 mil resolution
● IP42 Standard
● Schockproof to 1,5 meters
● RS-232C and USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Illumination White LED
 Aiming 625 nm Red LED
 Scanning angle Pitch: ±45°; Roll: ±360°; Skew: ±40°
 Resolution 1D Codes : 0.1 mm (4 mil)
 Indicators LED and Beep volume
 Print Contrast ≥%30
 Interfaces RS-232C and USB
 Physical
 Length 101 mm
 Width 68 mm
 Height 145 mm
 Weight 115 Gram
 Electrical
 Operation Voltage Output: DC 5V
 Current Standby: 55 mA
Operation:136 mA (Max:150 mA)
 Environmental
 Operation temperature -20 °C ~ 50 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±8 KV (contact discharge); ±15 KV (air discharge)
 Drop Durability 1,5 meter
 IP Standard IP42
 Certifications
 Certifications FCC Part15 Class B,CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11,MSI-Plessey, Plessey, etc.
 2D Codes PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc.
 Scanning Distances
 Scanning Distances 1D EAN-13 (13 Mil): 60 mm ~ 215 mm
2D QrCode (15 Mil): 40 mm ~ 105 mm
