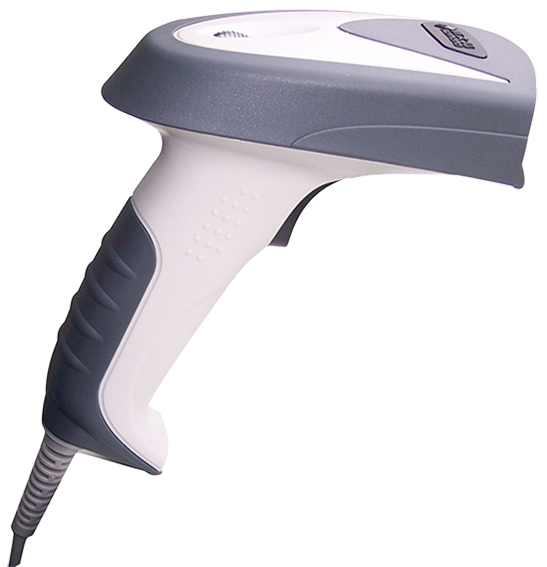

Newland HR200C
2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 1D: 5 mil resolution
● RS-232, USB HID-KBW, USB COM Port Interfaces

 Performance
 Image Sensor 752 x 480 Pixel CMOS
 Light source 630 nm (±10 nm)
 Scanning angle Pitch: ±360°; Roll: ±55°; Skew: ±60°
 Resolution 0,127 mm / 5 mil (1D Codes)
 Indicators LED and Beep volume
 Print Contrast ≥%30
 Light Intensity 300 LUX (130 mm)
 Interfaces RS-232 / USB HID-KBW / USB COM Port Emulation
 Physical
 Length -
 Width -
 Height -
 Weight 268 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Current Standby: 20 mA
Operation:290 mA (Max:330 mA)
 Environmental
 Operation temperature -5 °C ~ 45 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
 2D Codes PDF417, QR Code, Data Matrix
 Scanning Distances
 Scanning Distances 1D Code 39 (10 Mil): 35 mm ~ 175 mm
Code 39 (15 Mil): 55 mm ~ 235 mm
2D PDF417 (10 Mil): 35 mm ~ 185 mm
PDF417 (15 Mil): 45 mm ~ 235 mm
Datamatrix (10 Mil): 45 mm ~ 135 mm
Datamatrix (15 Mil): 55 mm ~ 175 mm
QrCode (10 Mil): 55 mm ~ 115 mm
QrCode (15 Mil): 45 mm ~ 185 mm
