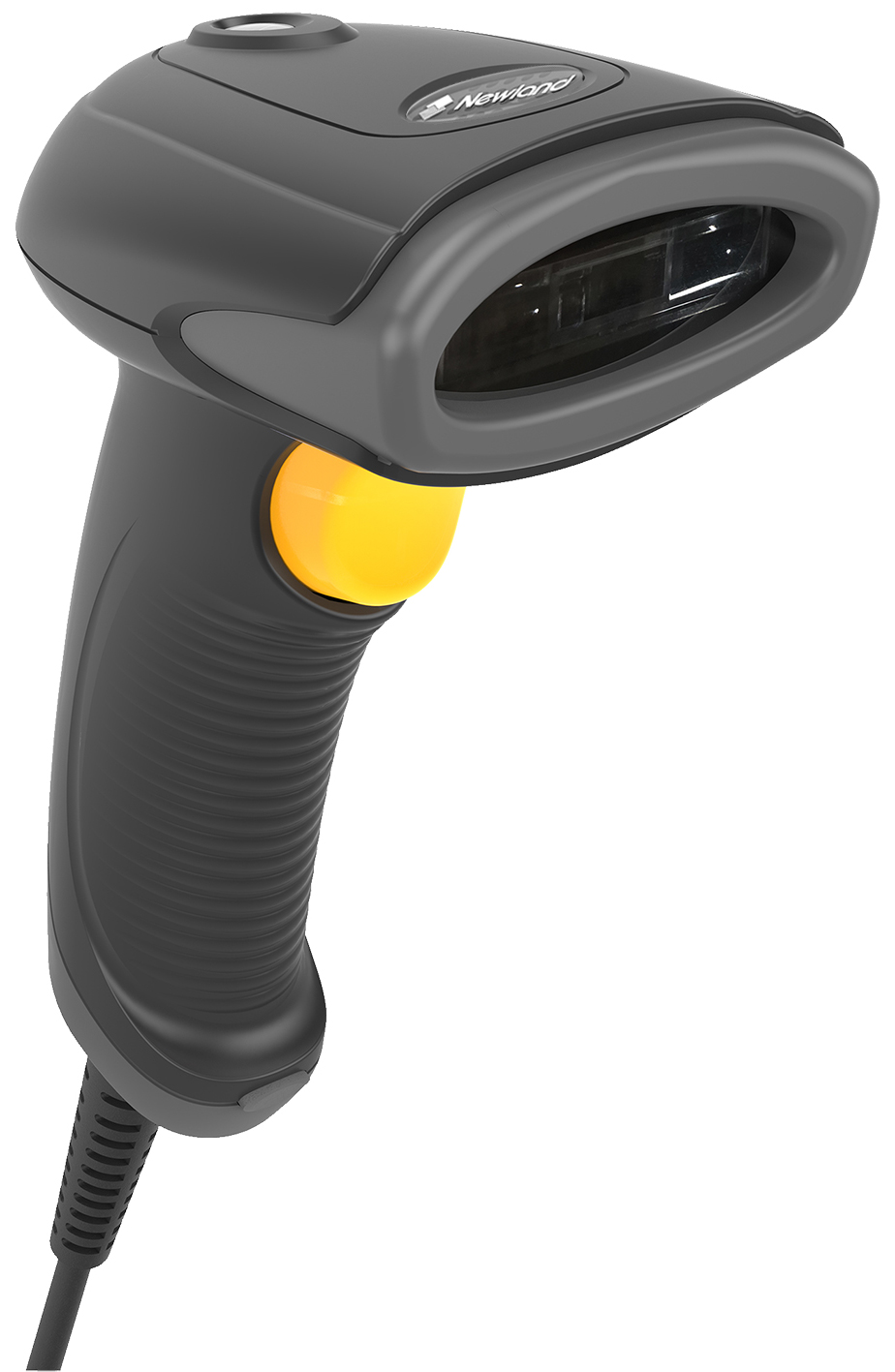

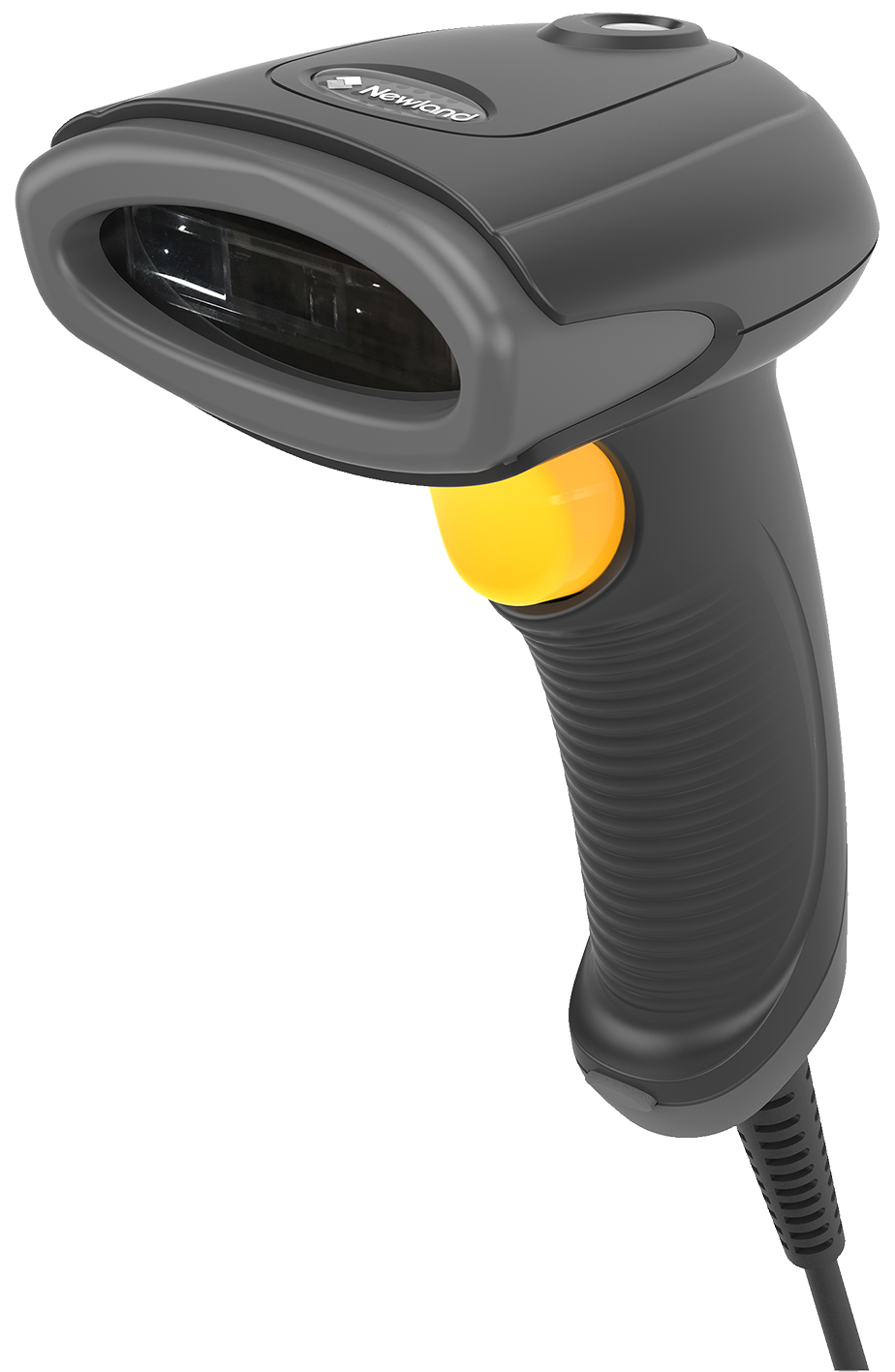

Newland HR1150
CCD Barcode Scanner



● 1D CCD barcode scanner
● Light weight, ergonomic design
● 325 scan per second
● 0,076 mm (3 mil) resolution
● 40 ~ 480 mm scanning distance
● USB and RS-232C interface options

Performance
 Light source 620 nm Red LED
 Optical Type Linear Imager
 Depth of field 40 - 480 mm
 Scan Rate 325 Scans/Sec
 Scanning angle Pitch: ±60°; Roll: ±30°; Skew: ±60°
 Minimum Bar Width 0,076 mm (3 mil)
 Indicators (LED) LED and Beep volume
 Print Contrast ≥%30
 System Interfaces PS/2, RS-232C and USB
 Physical
 Height 68 mm
 Length 145 mm
 Width 101 mm
 Weight 120 Gram
 Electrical
 Operating Voltage 5VDC ±%5
 Power consumption 345mW
 Current Standby Current: 10 mA ±1mA
Operating Current: 70,4 mA (Max.96,8 mA)
 Environmental
 Operating temperature -20 °C ~ 50 °C
 Storage Temperature -40 °C ~ 85 °C
 Humidity %5 ~ %95 (non-condensing)
 ESD ±8 KV (contact discharge); ±10 KV (air discharge)
 Drop 1.2m drop to concrete
 Sealing IP42
 Barcode Types
 Supported Barcode Types AIM128, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, COOP 25, Deutsche 12, Deutsche 14, EAN-8, EAN-13, Febraban, GS1-128, GS1 Databar (RSS), ISBN, ISSN, ITF-6, ITF-14, MSI-Plessey, Plessey, UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5.
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
