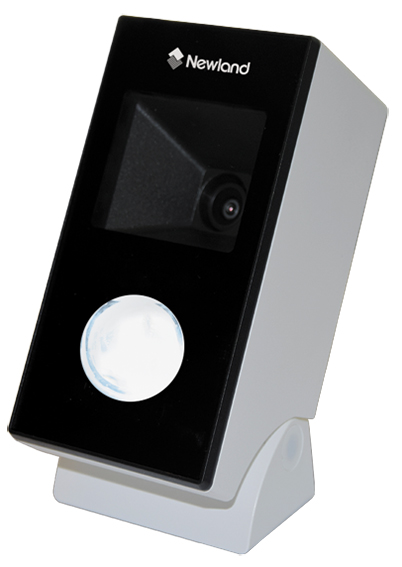

Newland FR2170
(Neon)
Desktop 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 5 mil resolution
● Reading from LCD Screens
● RS-232 and USB Interfaces

 Performance
 Processor IOTC 0370 CHIP
 Image Sensor 640 x 480 Pixel CMOS
 Light source White LED
 Resolution 1D Codes: 0,127 mm (5 mil)
 Scan Mode Sense mode
 Indicators LED and Beep volume
 Field of View Horizontal: 73°, Vertical: 56°
 Print Contrast ≥%25
 Supported Interfaces RS-232 and USB
 Physical
 Width 70,5 mm
 Height 120,7 mm
 Length 60,2 mm
 Weight 242 Gram
 Electrical
 Operating voltage 5VDC (± %5)
 Current Values Standart: 127,3 mA (Max: 280,7 mA)
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±12 KV (air discharge); ±6 KV (direct discharge)
 Drop Durability Max. 1,2 Meter
 IP Standart IP50
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B, RoHS, IEC/EN 62471
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc.
 2D Codes PDF417, Data Matrix, QR Code, Chinese Sensible Code
