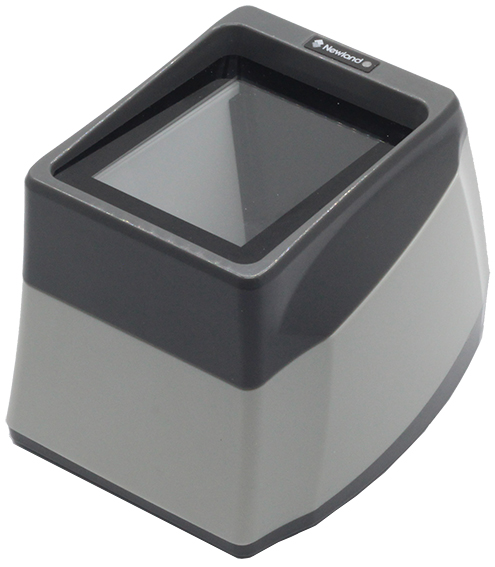

Newland FR2050
Fixed Mount 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 10 mil resolution
● Reading from LCD Screens
● RS-232 and USB Interfaces

 Performance
 Processor IOTC 0370 CHIP
 Image Sensor 640 x 480 Pixel CMOS
 Light source White LED
 Scan Mode Sense mode, Continuous mode
 Resolution 0,254 mm / 10 mil (1D Codes)
 Indicators LED and Beep volume
 Print Contrast ≥%30
 Supported Interfaces RS-232 and USB
 Physical
 Length 127,3 mm
 Width 111,5 mm
 Height 94 mm
 Weight 300 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Power Consumption 1W (max.)
 Environmental
 Operation temperature -10 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Ambient Light 0 ~ 100,000 LUX
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSSLimited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
 2D Codes PDF417, QR Code, Data Matrix
