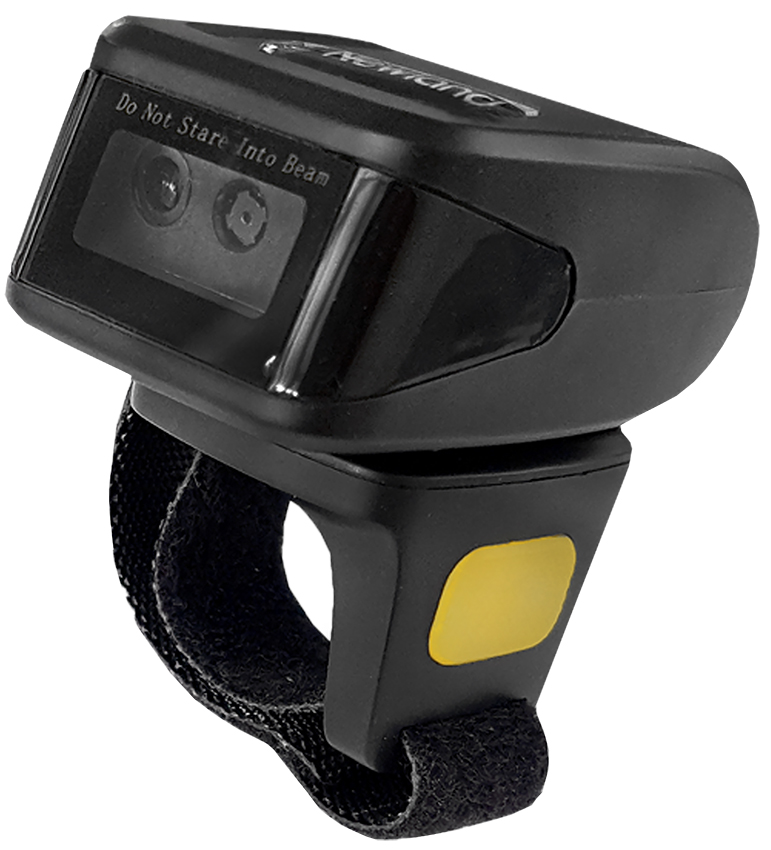

Newland BS10R
(Sepia)

Wireless Barcode Scanner



● 2D Imager Barcode Scanner
● 640 x 480 Pixel CMOS Sensor
● Wireless (Bluetooth) Communication
● Operate with a 30 meter data transmission range
● 0.127 mm (5 Mil) resolution
● RS-232C and USB Interface Options

 Performance
 Imager Sensor 640 x 480 Pixel CMOS
 Light source Illumination: White LED
Aiming : 650 nm Red LED
 Tararma Çipi 32 Bit ARM Cortex
 Indicators LED light, Buzzer, Vibration (Optional)
 Print Contrast ≥%30
 Storage 16 MB
 Interface USB
 Minimum Bar Width 0.127 mm (5 Mil)
 Interfaces USB and Bluetooth
 Communication
 Radio Technology Bluetooth 4.1
 Communication Distance Max. 30 metre (Open Space)
 Electrical
 Power Adaptor Input: AC110 ~ 220V, 50 ~ 60Hz
Output: 5VDC, 1A
 Battery Type 380 mAh Li-ion Battery
 Charging Time <2 hours
 Battery Life 8 hours of continuous operation (1 scan / 5 seconds)
 Standby time >30 days
 Input Voltage 5VDC±5%
 Current Operating : 170 mA
Standby : 30 mA
 Standby time >30 days
 Environmental
 Operation temperature 0°C ~ 40°C
 Storage temperature -40°C ~ 60°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD Protection (Air Discharge) ±8 KV (Contact discharge); ±15 KV (Air discharge)
 Drop 1,5 m drop to concrete
 Decode Capabilities
 1D Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
 2D Barcodes PDF417, Data Matrix (ECC200,ECC000,050,080,100,140), QR Code
