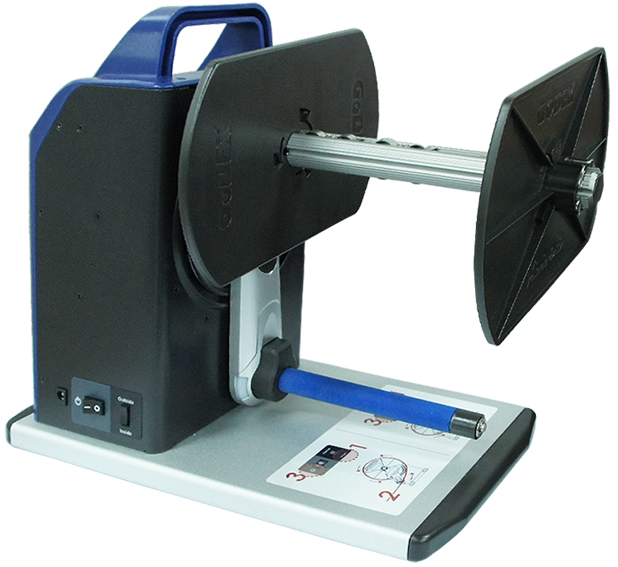

Godex T20
External Label Rewinder



● Automatic Speed Control
● In or Out Rewinding
● 178 mm label width
● 152 mm roll outside capacity
● Supports three core size
Can work with all brand barcode printers

 Operational
 Label width 25,4 mm ~ 178 mm
 Label roll weight 4 Kg. (Max.)
 Rewind speed (Maximum) Up to 12 IPS (304.8 mm/s) with 3“ core
Rewind speed depending on core diameter
 Label Roll Diameter Max. O.D. 6” (152.4 mm) for label inside
 Core Diameter I.D. 1” (24.4 - 26.4 mm)
I.D. 1.5” (37.1 - 39.1 mm)
I.D. 3” (75.2 - 77.2 mm)
 Direction Label inside / Label outside
 Electrical
 Power AC 120V or AC 230V (Factory options)
 Operation interface  Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
 Humidity Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.
 Agency Approvals CE, FCC Class A
 Physical
 Dimension Length: 11.8” (300 mm)
Height: 12.1” (308 mm)
Width: 8.7” (220 mm)
 Weight 13.2 lbs (6Kg), excluding consumables
 Rewind End Detection Label inside: O.D. 6” (152.4 mm)
Label inside: O.D. 8” (203.2 mm)
